Trouble Area Related To DTC

WARNING: This page is about a different variant/trim than selected.

NOTE: Check items for each diagnostic item do not list all probable causes.

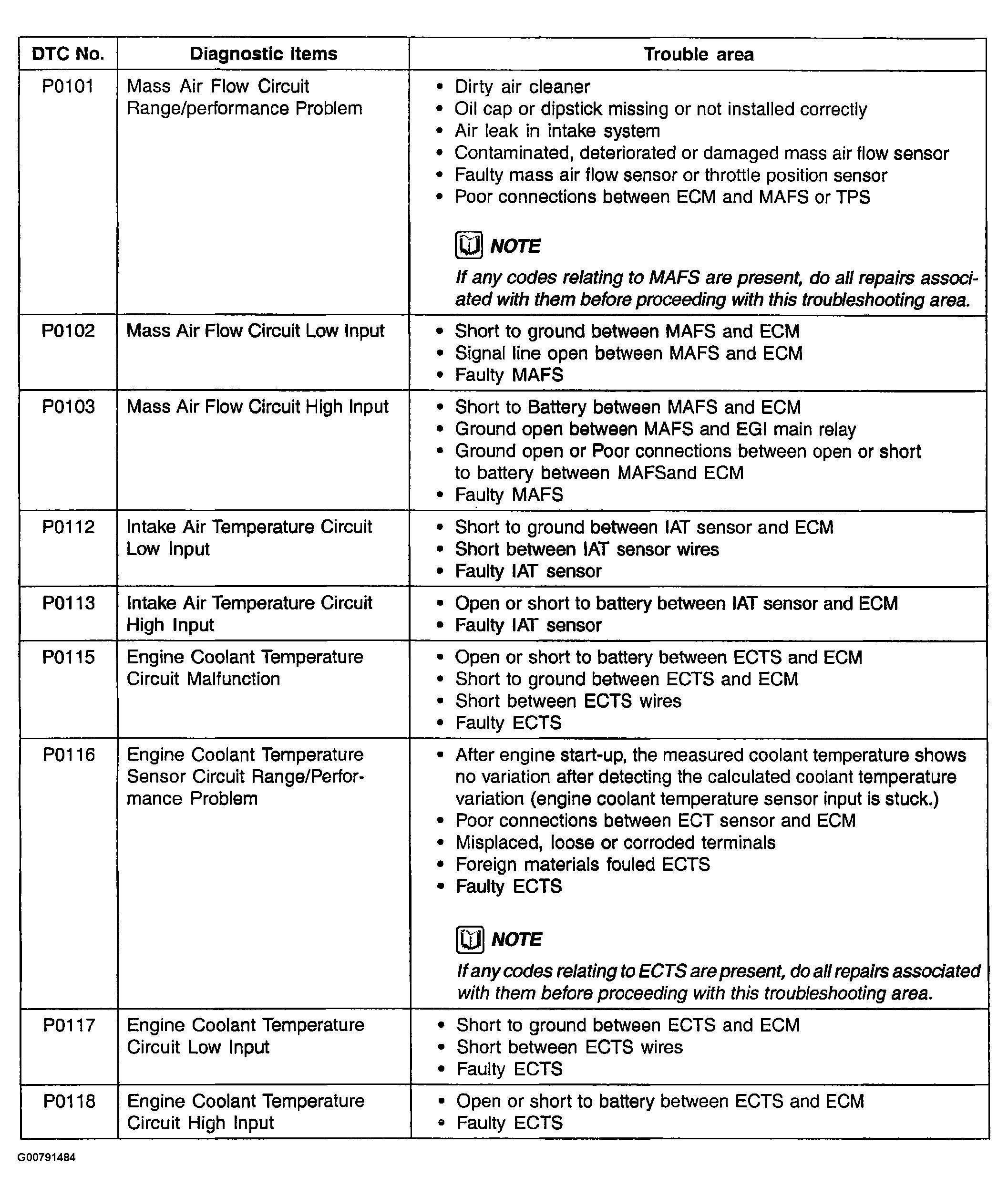

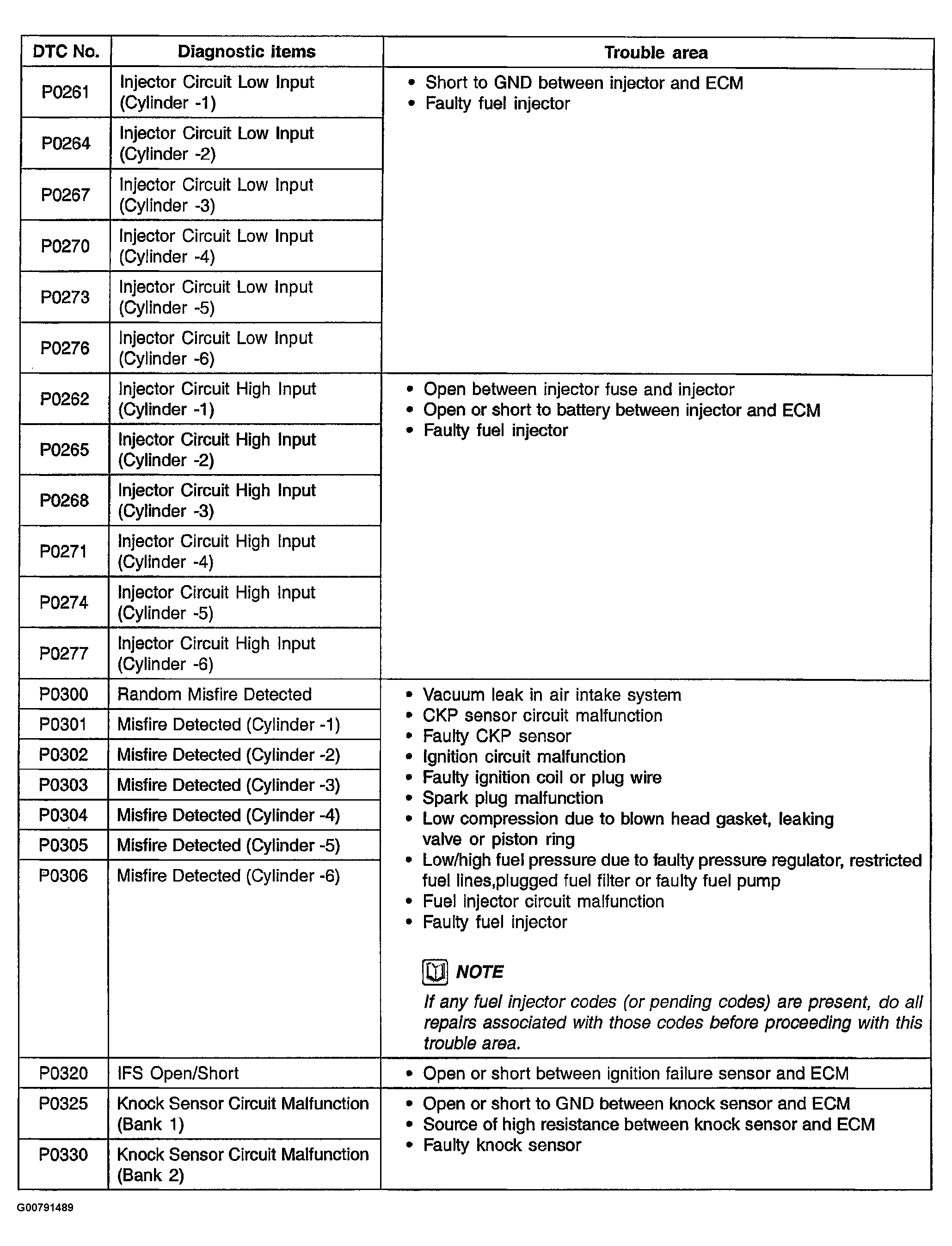

Fig 1: Trouble Areas Related To DTC (1 Of 11)

Courtesy of HYUNDAI MOTOR CO.

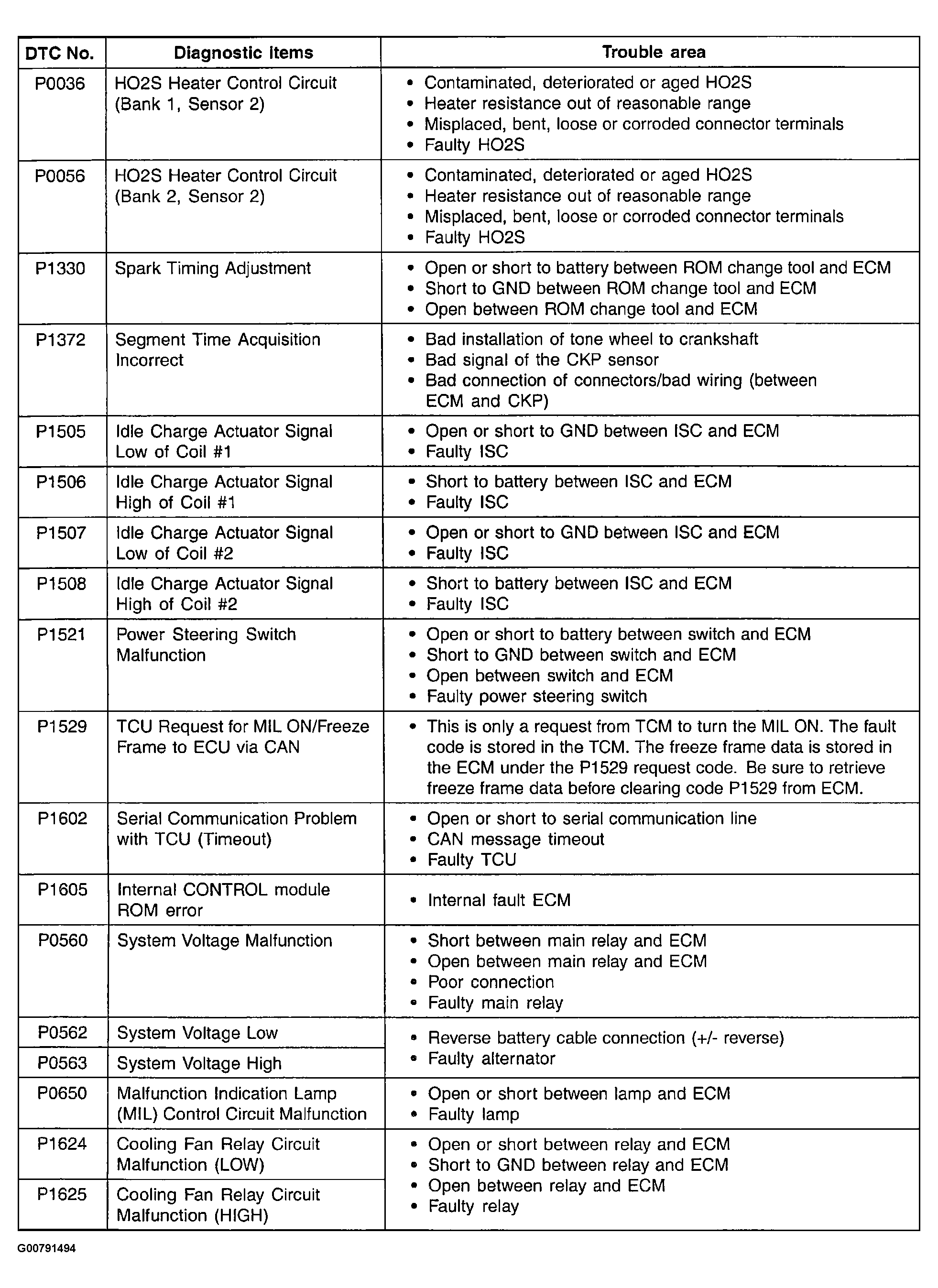

Fig 2: Trouble Areas Related To DTC (2 Of 11)

Courtesy of HYUNDAI MOTOR CO.

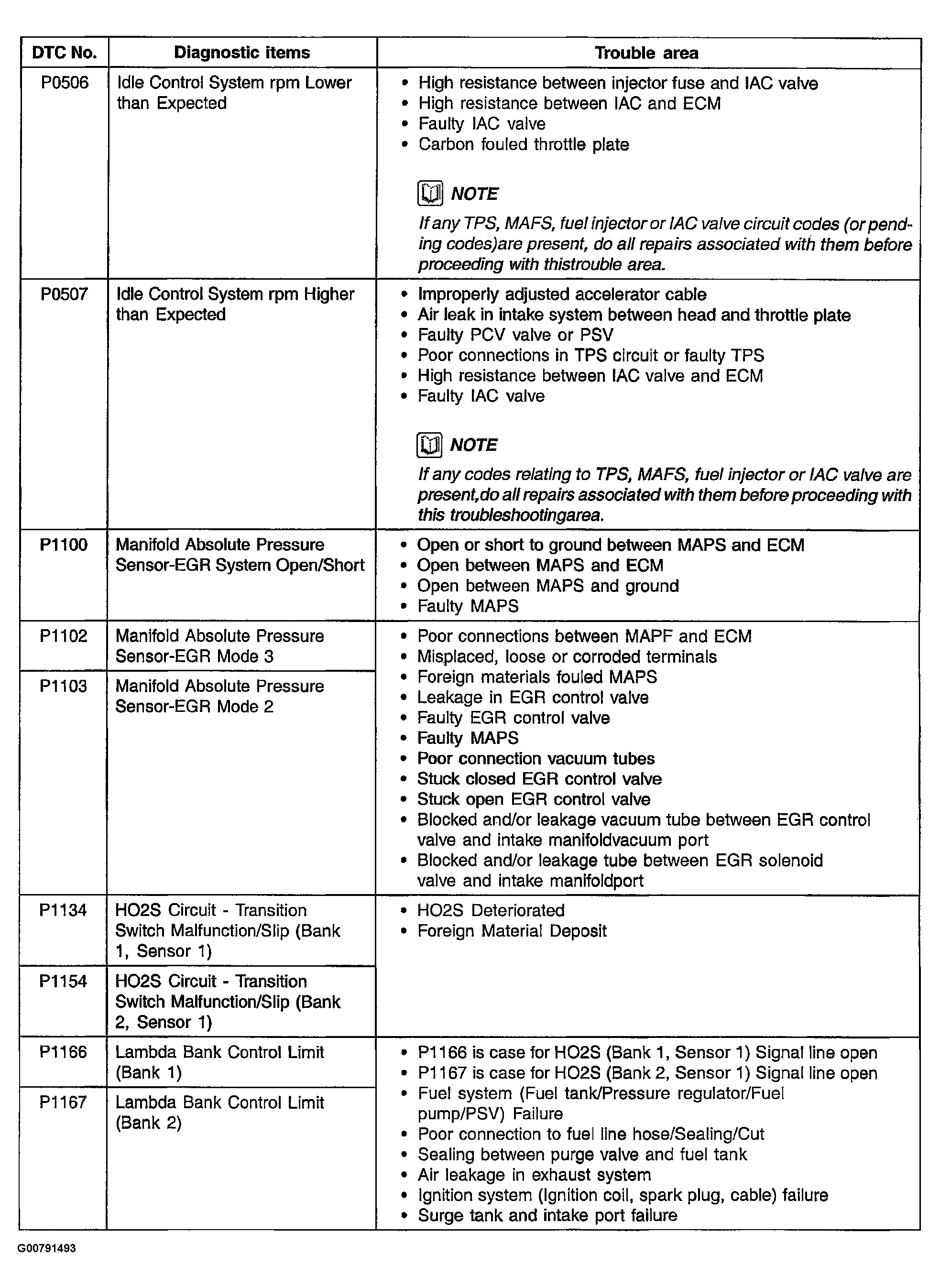

Fig 3: Trouble Areas Related To DTC (3 Of 11)

Courtesy of HYUNDAI MOTOR CO.

Fig 4: Trouble Areas Related To DTC (4 Of 11)

Courtesy of HYUNDAI MOTOR CO.

Fig 5: Trouble Areas Related To DTC (5 Of 11)

Courtesy of HYUNDAI MOTOR CO.

Fig 6: Trouble Areas Related To DTC (6 Of 11)

Courtesy of HYUNDAI MOTOR CO.

Fig 7: Trouble Areas Related To DTC (7 Of 11)

Courtesy of HYUNDAI MOTOR CO.

Fig 8: Trouble Areas Related To DTC (8 Of 11)

Courtesy of HYUNDAI MOTOR CO.

Fig 9: Trouble Areas Related To DTC (9 Of 11)

Courtesy of HYUNDAI MOTOR CO.

Fig 10: Trouble Areas Related To DTC (10 Of 11)

Courtesy of HYUNDAI MOTOR CO.

Fig 11: Trouble Areas Related To DTC (11 Of 11)

Courtesy of HYUNDAI MOTOR CO.
