Engine Hesitates Or Accelerates Poorly

WARNING: This page is about a different variant/trim than selected.

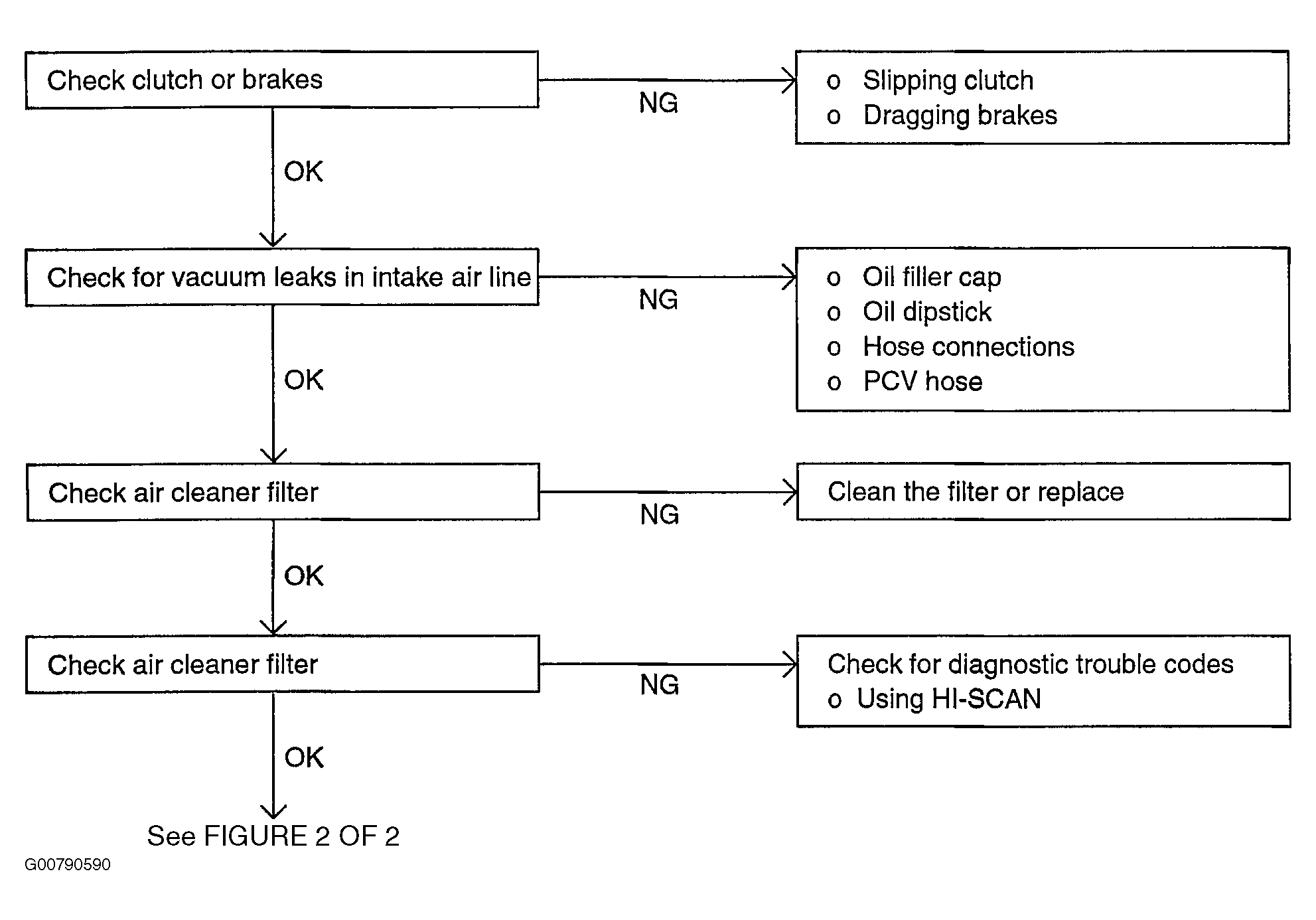

Fig 1: Engine Hesitates Or Accelerates Poorly Diagnostic Flow Chart (1 Of 2)
G00790590Courtesy of HYUNDAI MOTOR CO.

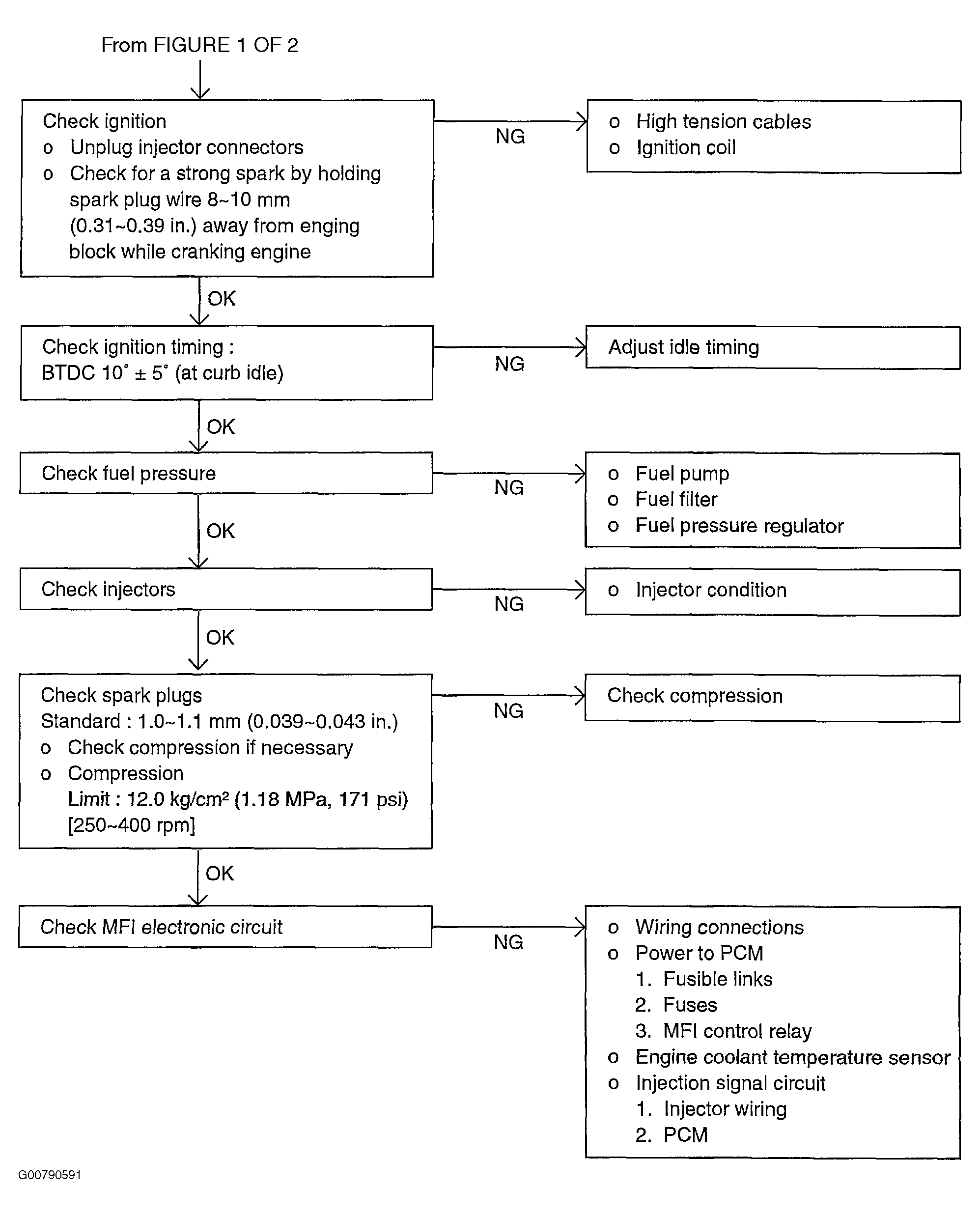

Fig 2: Engine Hesitates Or Accelerates Poorly Diagnostic Flow Chart (2 Of 2)
G00790591Courtesy of HYUNDAI MOTOR CO.
