Difficult To Start (Engine Cranks)

WARNING: This page is about a different variant/trim than selected.

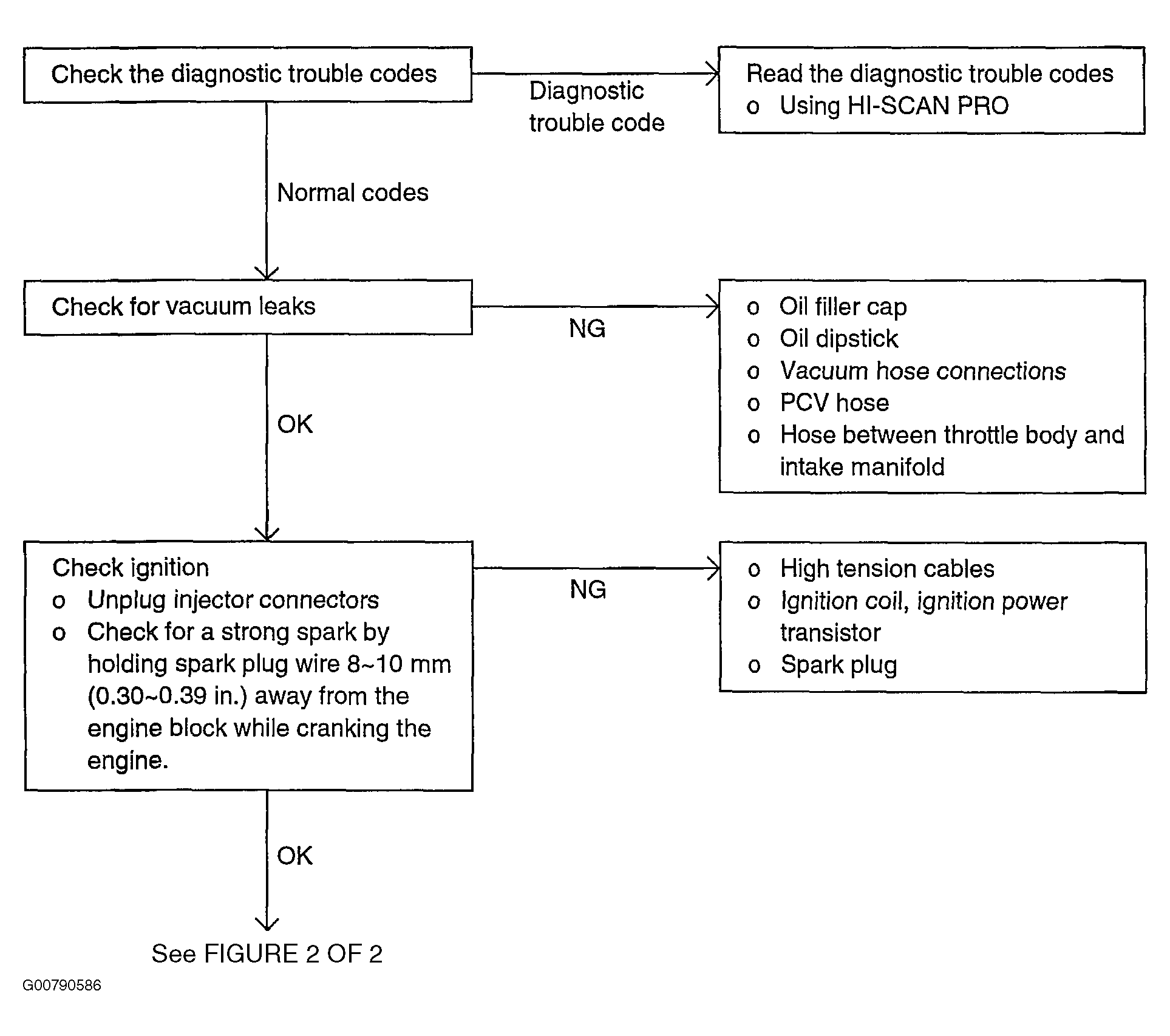

Fig 1: Difficult To Start Diagnostic Flow Chart (1 Of 2)
G00790586Courtesy of HYUNDAI MOTOR CO.

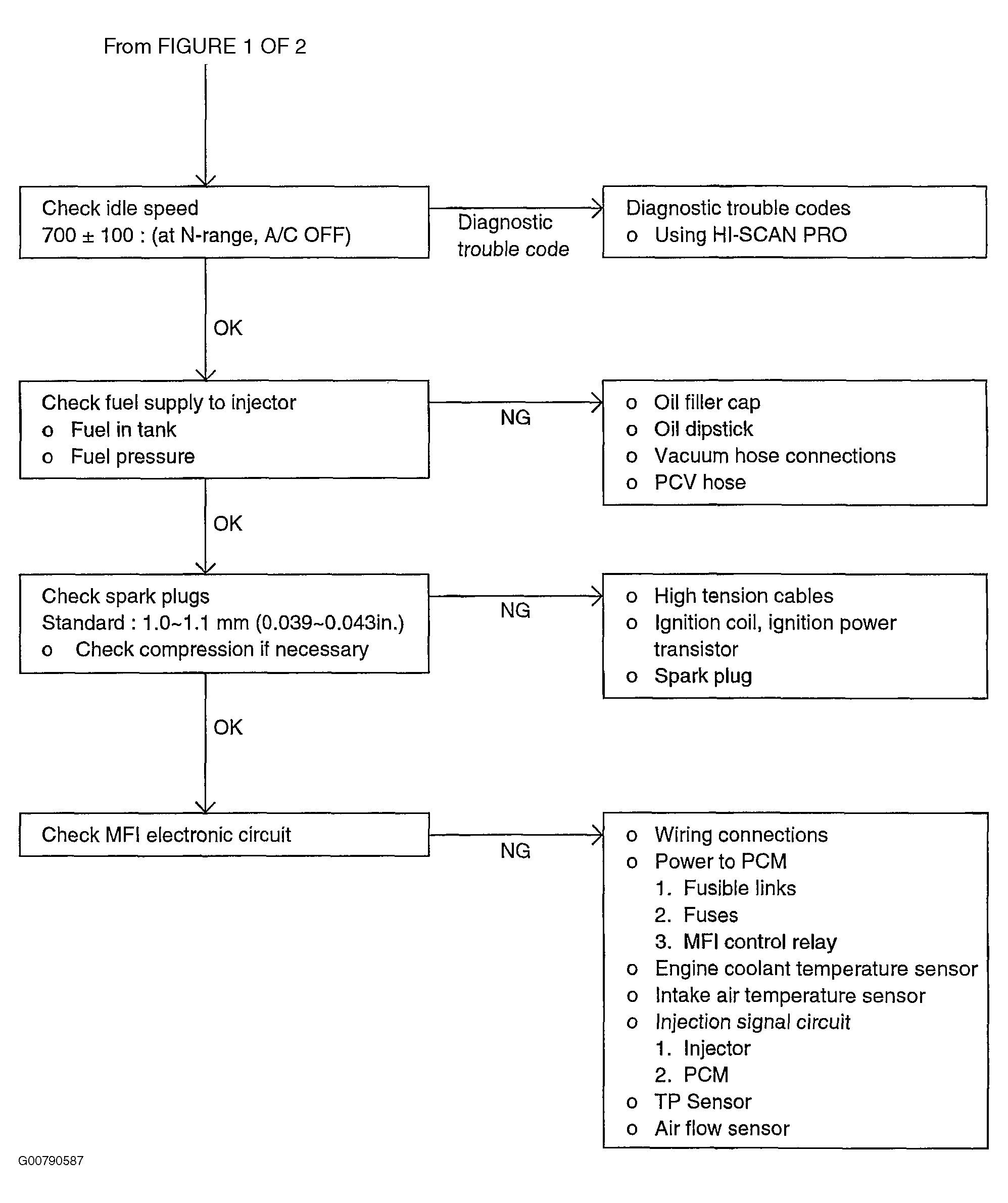

Fig 2: Difficult To Start Diagnostic Flow Chart (2 Of 2)
G00790587Courtesy of HYUNDAI MOTOR CO.
