Section 9 (Fuel System (2.7L))
>>
Fuel Delivery System
>>
Fuel Line And Vapor Line
>>
Components
Fuel Line And Vapor Line: Components
WARNING:
This page is about a different variant/trim than selected.

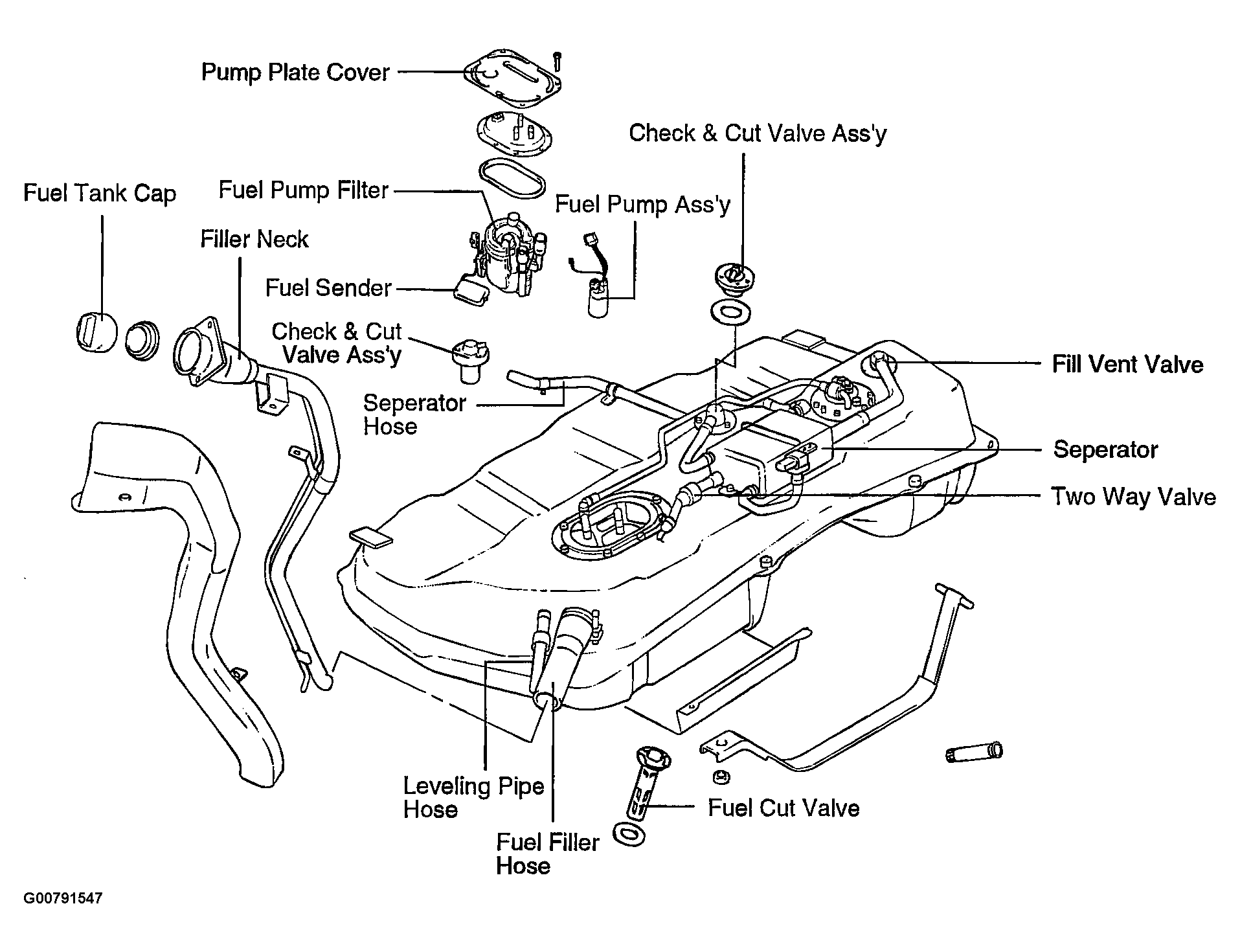

Fig 1: Fuel Line & Vapor Line Components
Courtesy of HYUNDAI MOTOR CO.
