Accelerator Pedal: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the bushing and inner cable of the accelerator arm.
  2. Pull the left side of the accelerator pedal toward you, and then remove the accelerator pedal from the accelerator arm.
  3. Loosen the bolts of the accelerator arm bracket and remove.

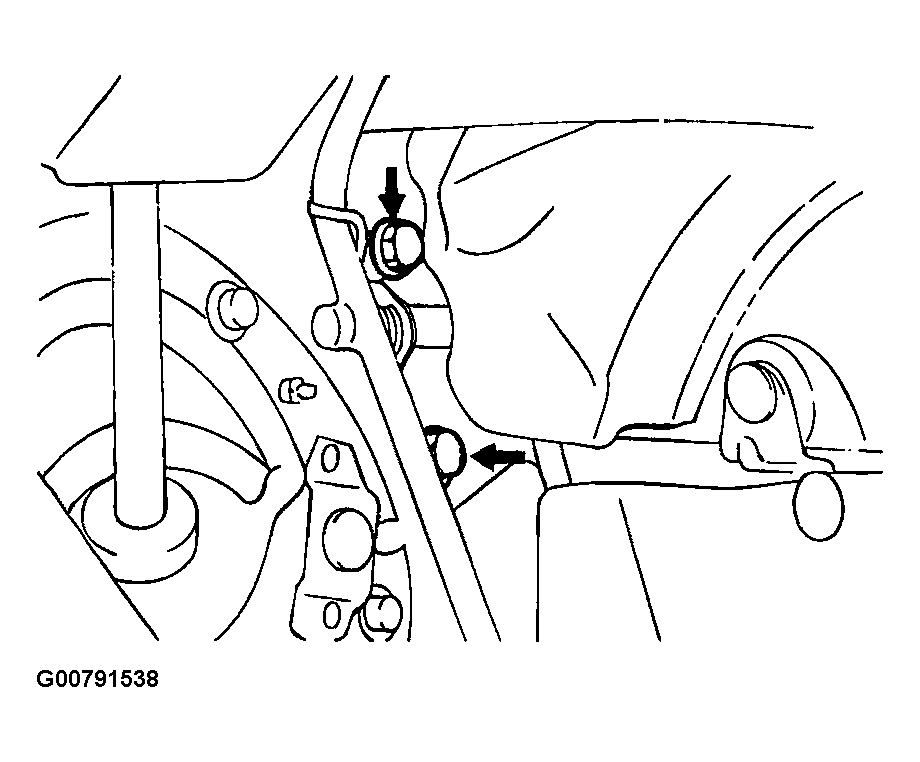

Fig 1: Identifying Accelerator Arm Bracket Bolts
G00791538Courtesy of HYUNDAI MOTOR CO.
