Section 8 (Cooling System (3.5L))
>>
Cooling System
>>
Schematic Diagram
Schematic Diagram
WARNING:
This page is about a different variant/trim than selected.

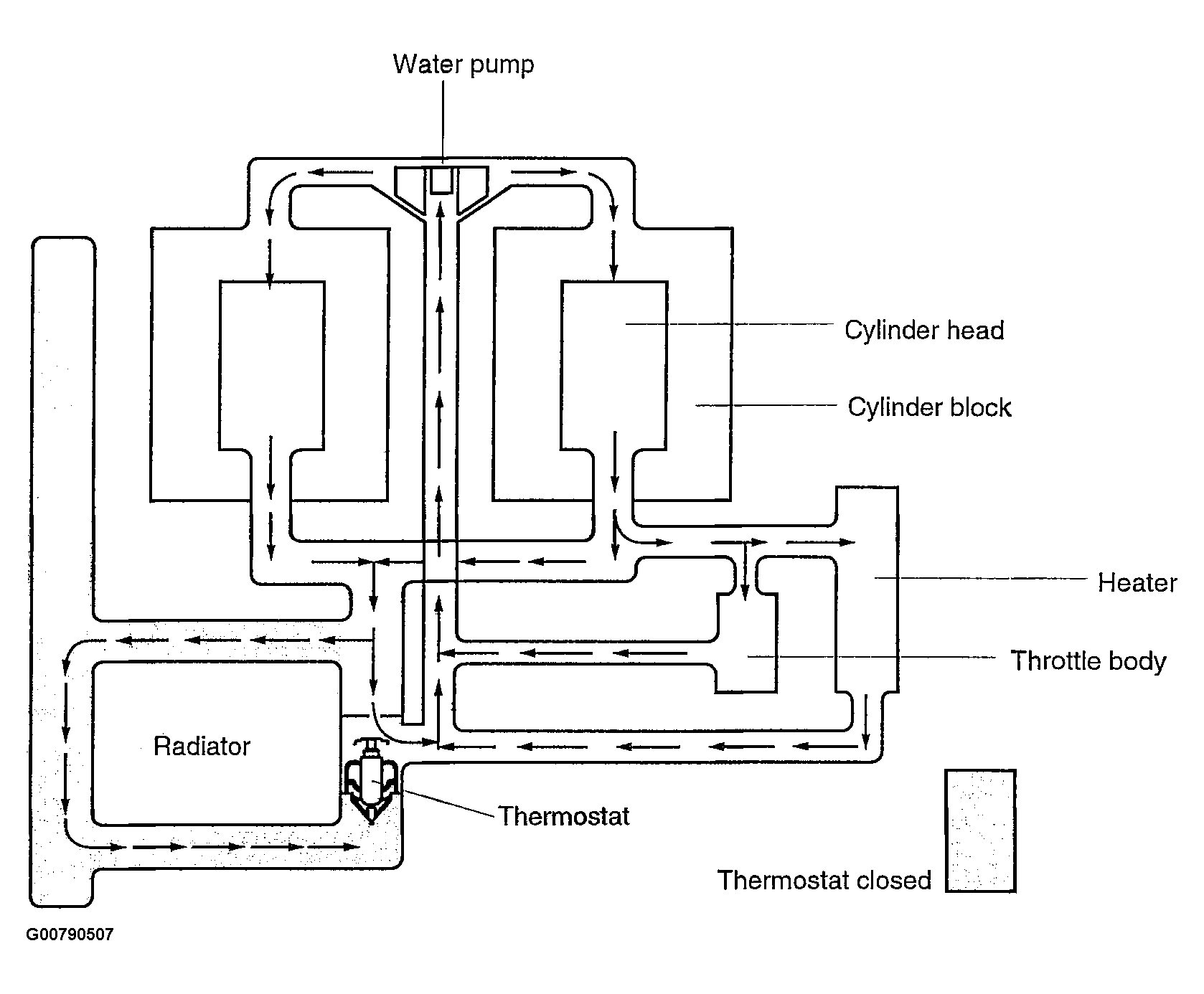

Fig 1: Inlet Control
Courtesy of HYUNDAI MOTOR CO.

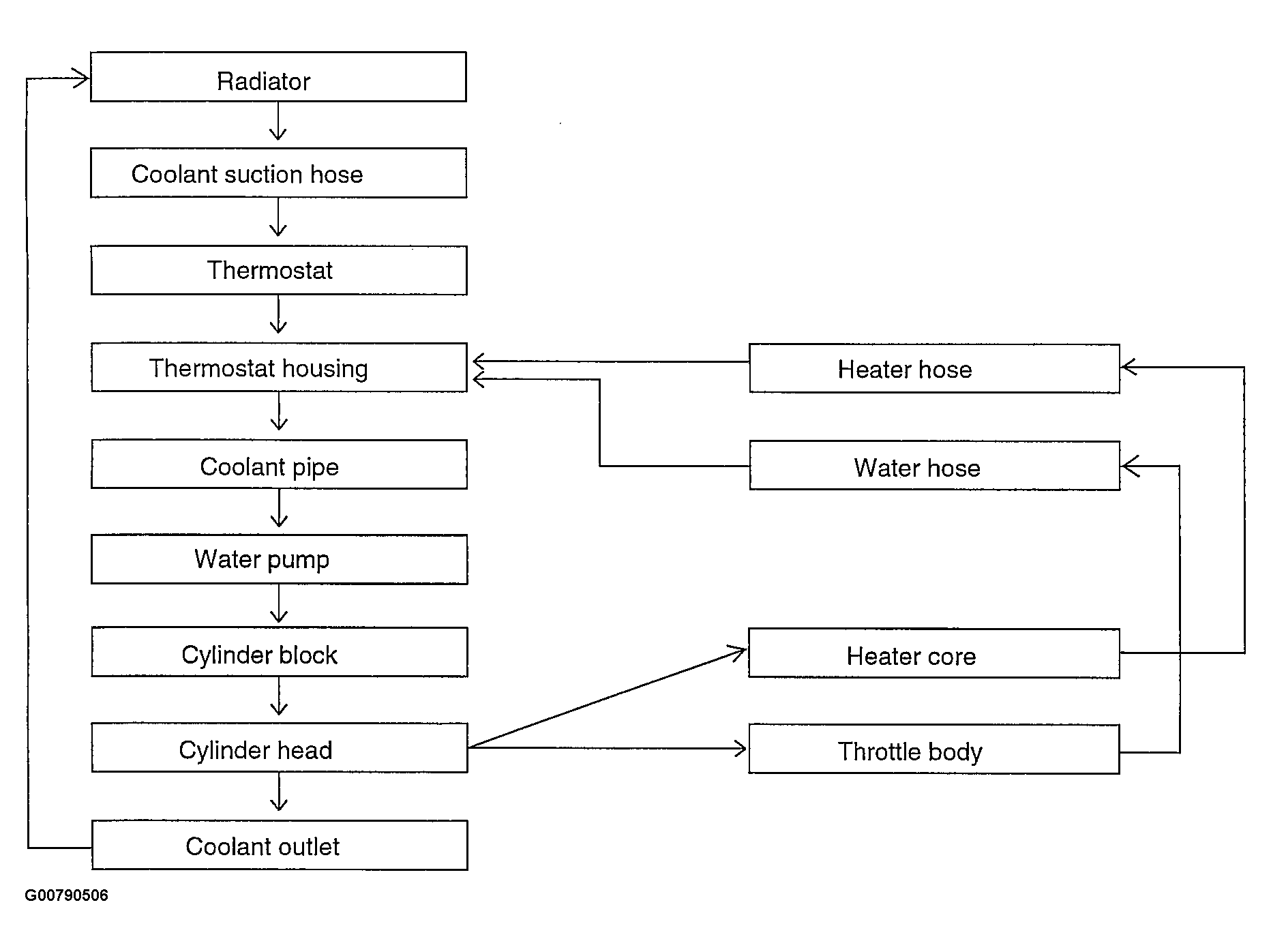

Fig 2: Flow Chart
Courtesy of HYUNDAI MOTOR CO.
