Engine Coolant Pump: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Using the drain plug, drain the coolant.
  2. Remove the drive belt.
  3. Remove the timing belt cover, the auto tensioner and idler pulley.

    For additional information, refer to TIMING BELT .

  4. Remove the engine coolant pump mounting bolts.
  5. Remove the engine coolant pump assembly from the cylinder block.

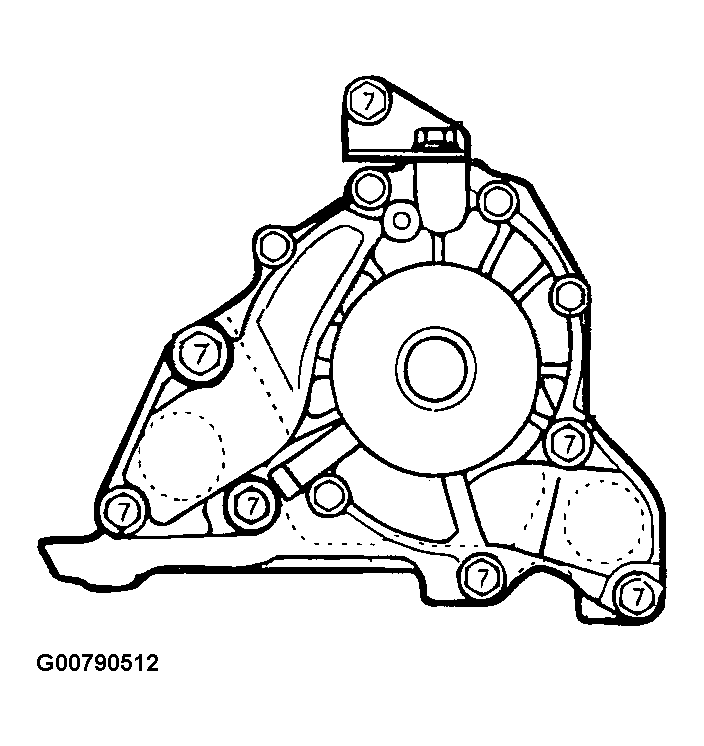

    Fig 1: Identifying Engine Coolant Pump
    G00790512Courtesy of HYUNDAI MOTOR CO.
