Engine Coolant Pump: Installation
WARNING: This page is about a different variant/trim than selected.
- Clean the gasket surfaces of the engine coolant pump body and the cylinder block.

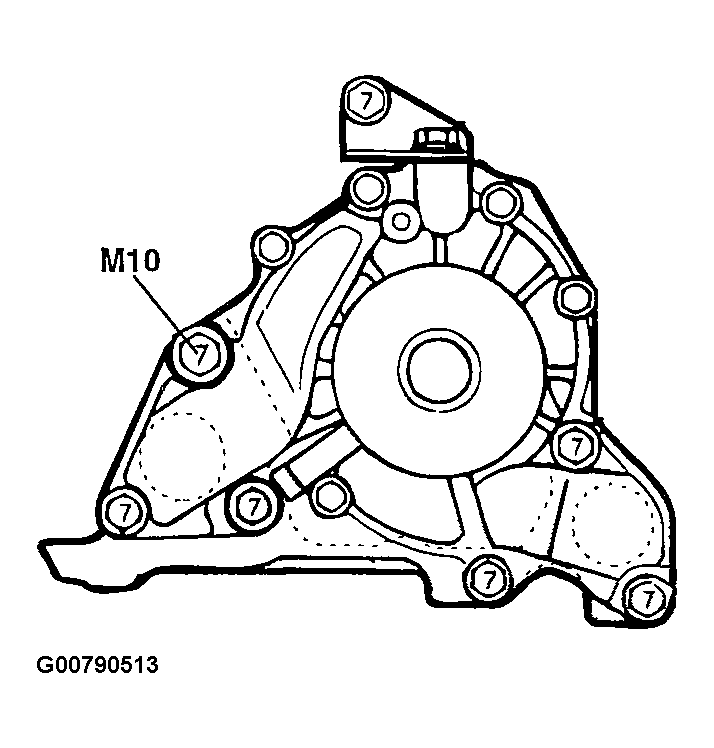

- Install the new engine coolant pump gasket and pump assembly. Tighten the bolts to the specified torque.
Tightening torque
Engine coolant pump bolt
Head mark
(M8) : 15 ~ 22 Nm (150 ~ 220 kg.cm, 11 ~ 16 lb.ft)
(M10) : 33 ~ 50 Nm (330 ~ 500 kg.cm, 24 ~ 36 lb.ft)
- Install the auto tensioner and timing belt. Adjust the timing belt tension, then install the timing belt cover.
- Install the drive belt and then adjust the auto tensioner.
- Refill the coolant.
- Run the engine and check for leaks.
