Cooling System: Thermostat: Installation
WARNING: This page is about a different variant/trim than selected.

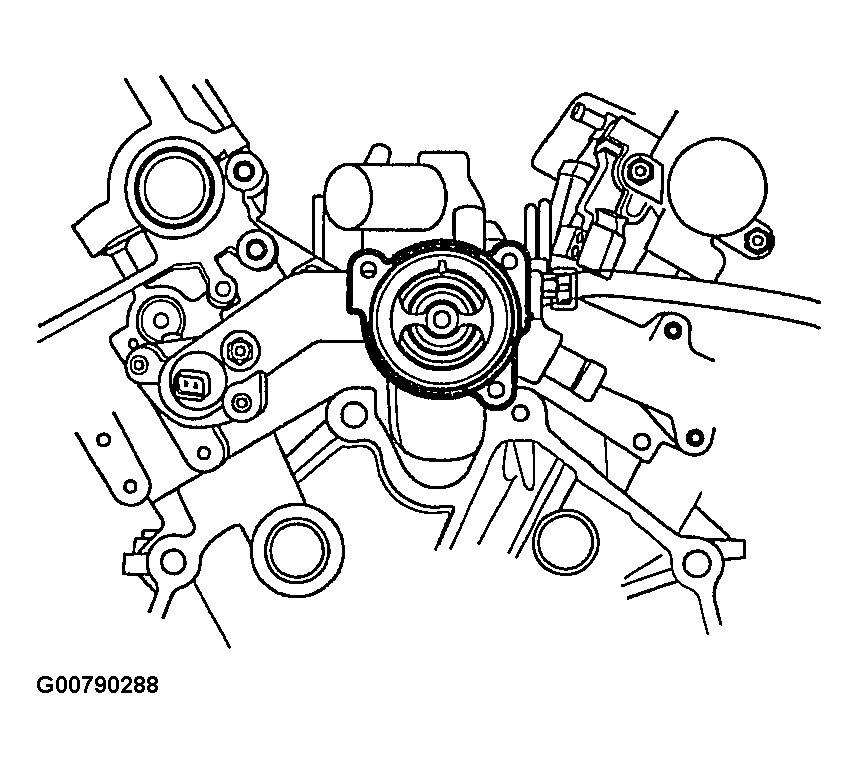

- Check that the flange of the thermostat is correctly placed in the socket of the thermostat housing.
- Install the inlet fitting.
Tightening torque
Engine coolant inlet fitting bolt :
17 ~ 20 Nm (170 ~ 200 kg.cm, 12 ~ 14 lb.ft)
- Refill the coolant.
