Section 7 (Cooling System (2.7L))
>>
Cooling System
>>
Thermostat
>>
Components
Cooling System: Thermostat: Components
WARNING:
This page is about a different variant/trim than selected.

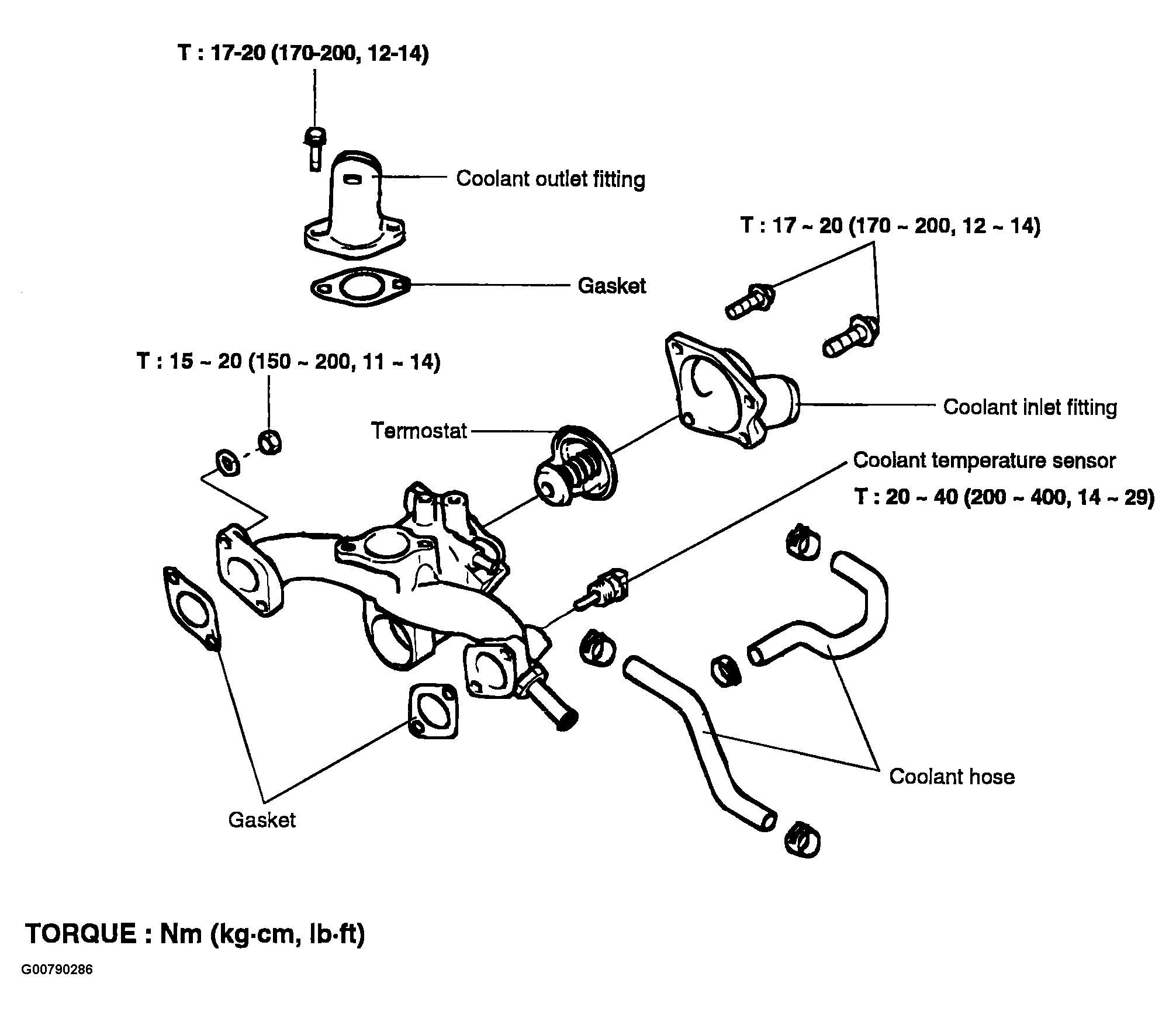

Fig 1: Thermostat & Components
Courtesy of HYUNDAI MOTOR CO.
