Radiator Cap: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Check the radiator cap for damage, cracks or weakening.
    Fig 1: Inspecting Radiator Cap For Weakening
    G00790284Courtesy of HYUNDAI MOTOR CO.
  2. Connect the tester to the radiator cap.
  3. Increase the pressure until the indicator of the gauge stops moving.
  4. Replace the radiator cap if the reading does not hold steady for about 10 seconds.

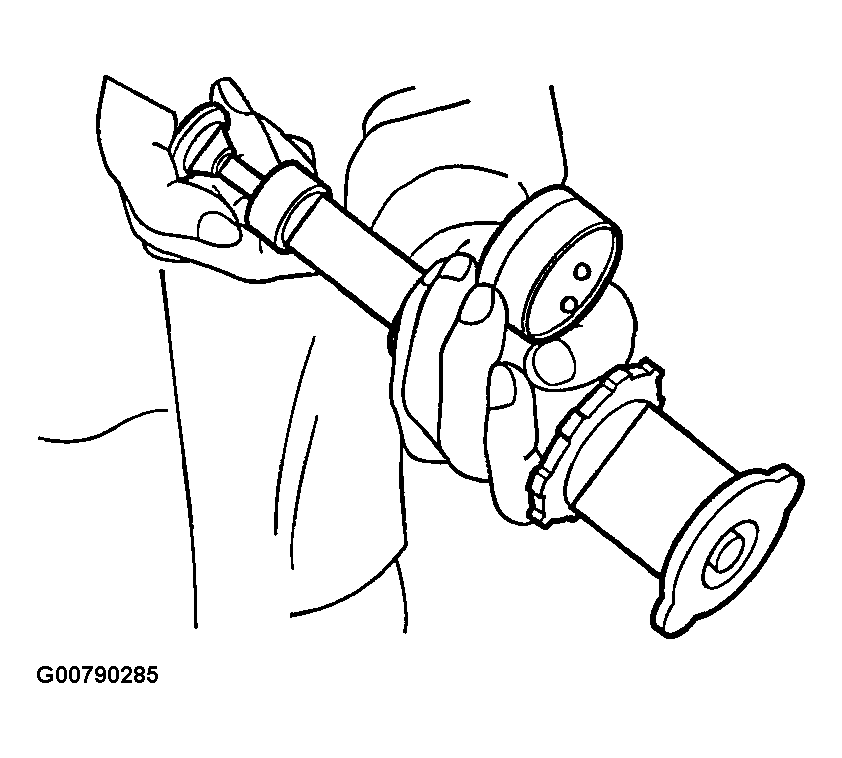

    Fig 2: Testing Radiator Cap
    G00790285Courtesy of HYUNDAI MOTOR CO.
