Engine Coolant Pump: Installation

WARNING: This page is about a different variant/trim than selected.

Clean the gasket surfaces of the engine coolant pump body and the cylinder block.

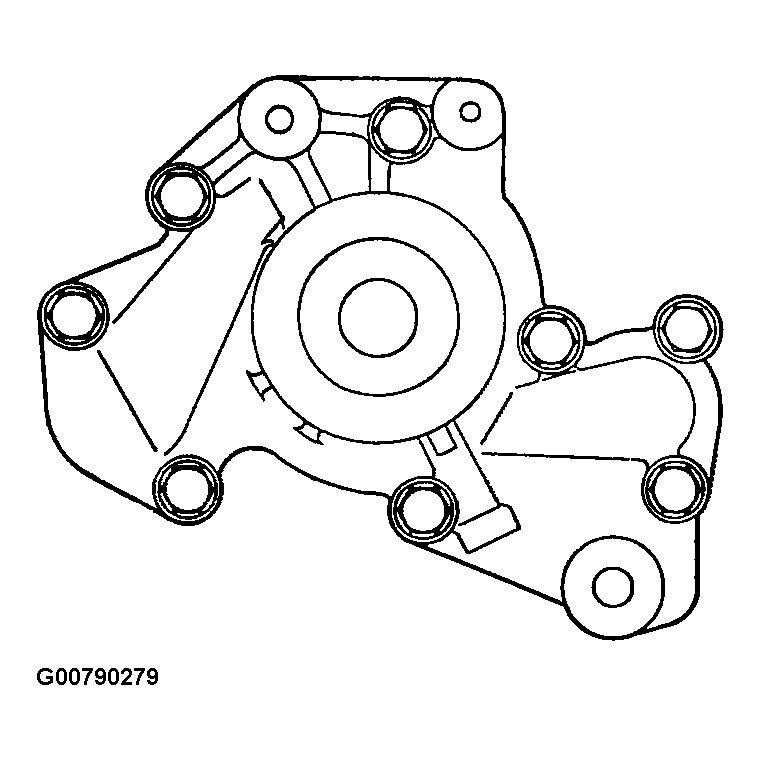

Fig 1: Identifying Coolant Inlet Pipe & Water Pump
Courtesy of HYUNDAI MOTOR CO.
Install the new engine coolant pump gasket and pump assembly. Tighten the bolts to the specified torque.
Tightening torque

Engine coolant pump bolt

Head mark "7" : 15 ~ 22 (150 ~ 220, 11 ~ 16)

Fig 2: Identifying Coolant Pump Bolts
Courtesy of HYUNDAI MOTOR CO.
Install the auto tensioner and timing belt. Adjust the timing belt tension, then install the timing belt cover.
Install the drive belt, coolant pump pulley and then adjust the auto tensioner.
Refill the radiator with coolant.
Run the engine and check for leaks.
