Engine Coolant Pump: Components

WARNING: This page is about a different variant/trim than selected.

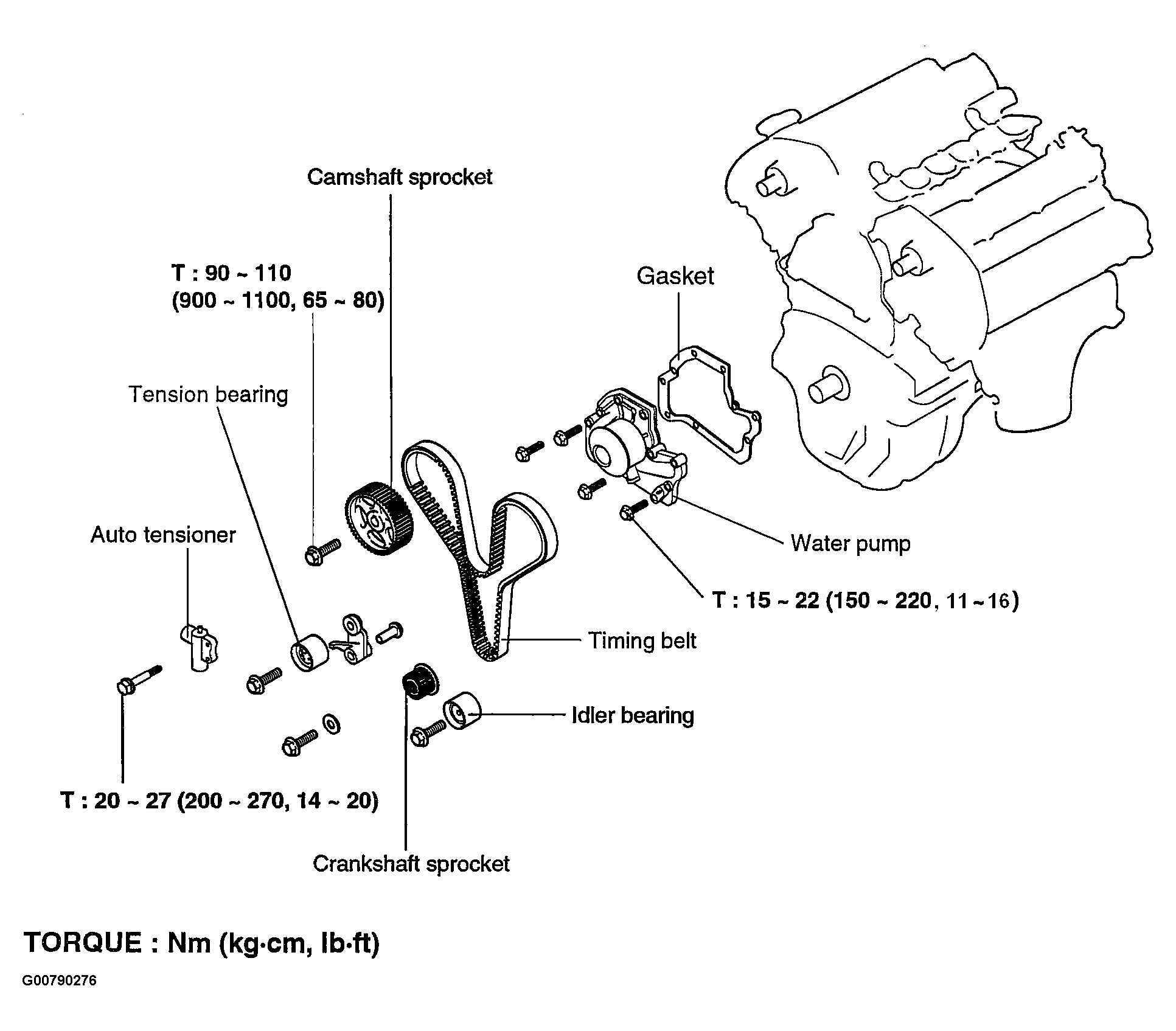

Fig 1: Engine Coolant Pump Components (1 Of 2)
G00790276Courtesy of HYUNDAI MOTOR CO.

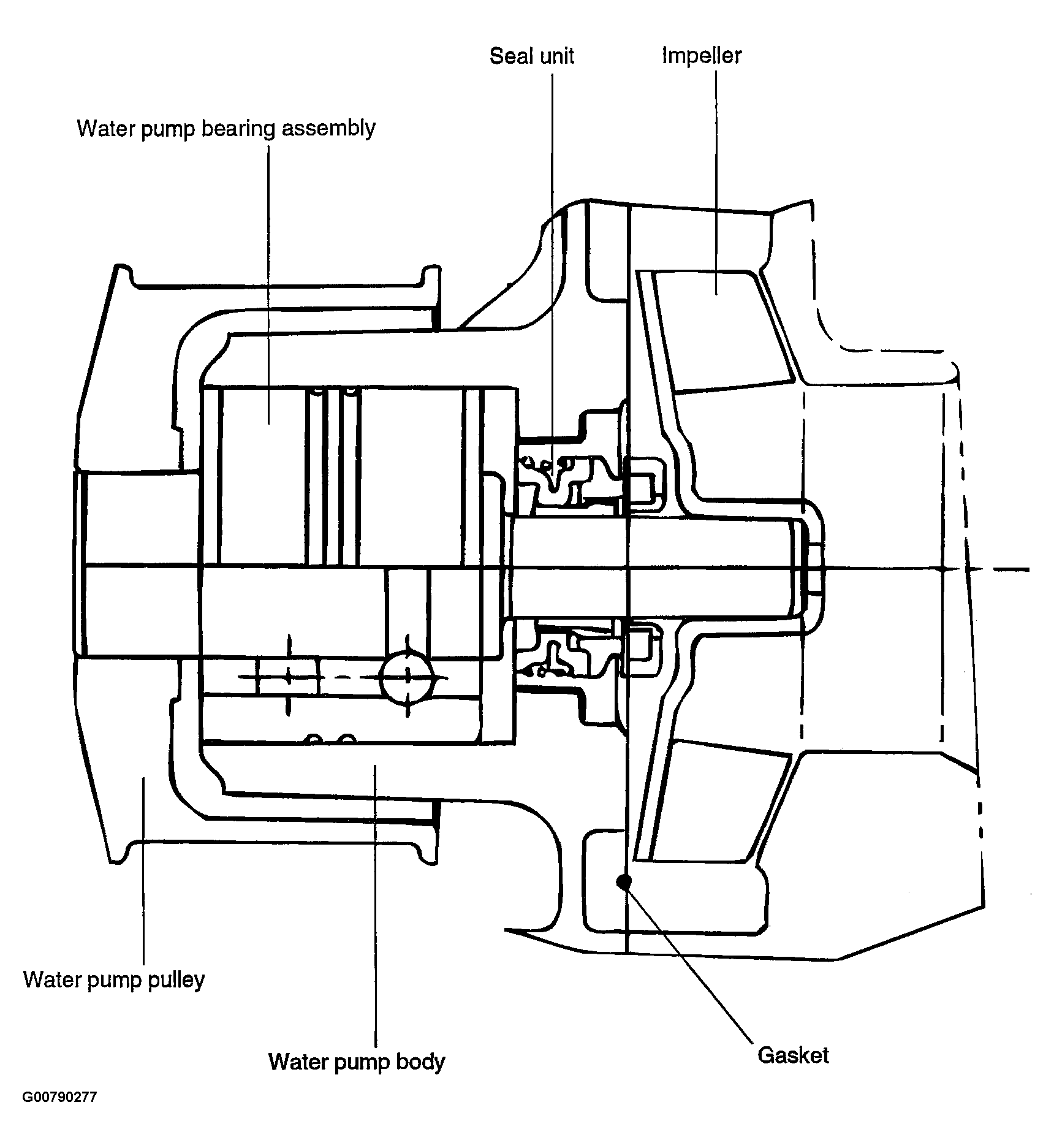

Fig 2: Engine Coolant Pump Components (2 Of 2)
G00790277Courtesy of HYUNDAI MOTOR CO.
