Section 7 (Cooling System (2.7L))
>>
Cooling System
>>
Engine Coolant Hose/Pipes
>>
Components
Engine Coolant Hose/Pipes: Components
WARNING:
This page is about a different variant/trim than selected.

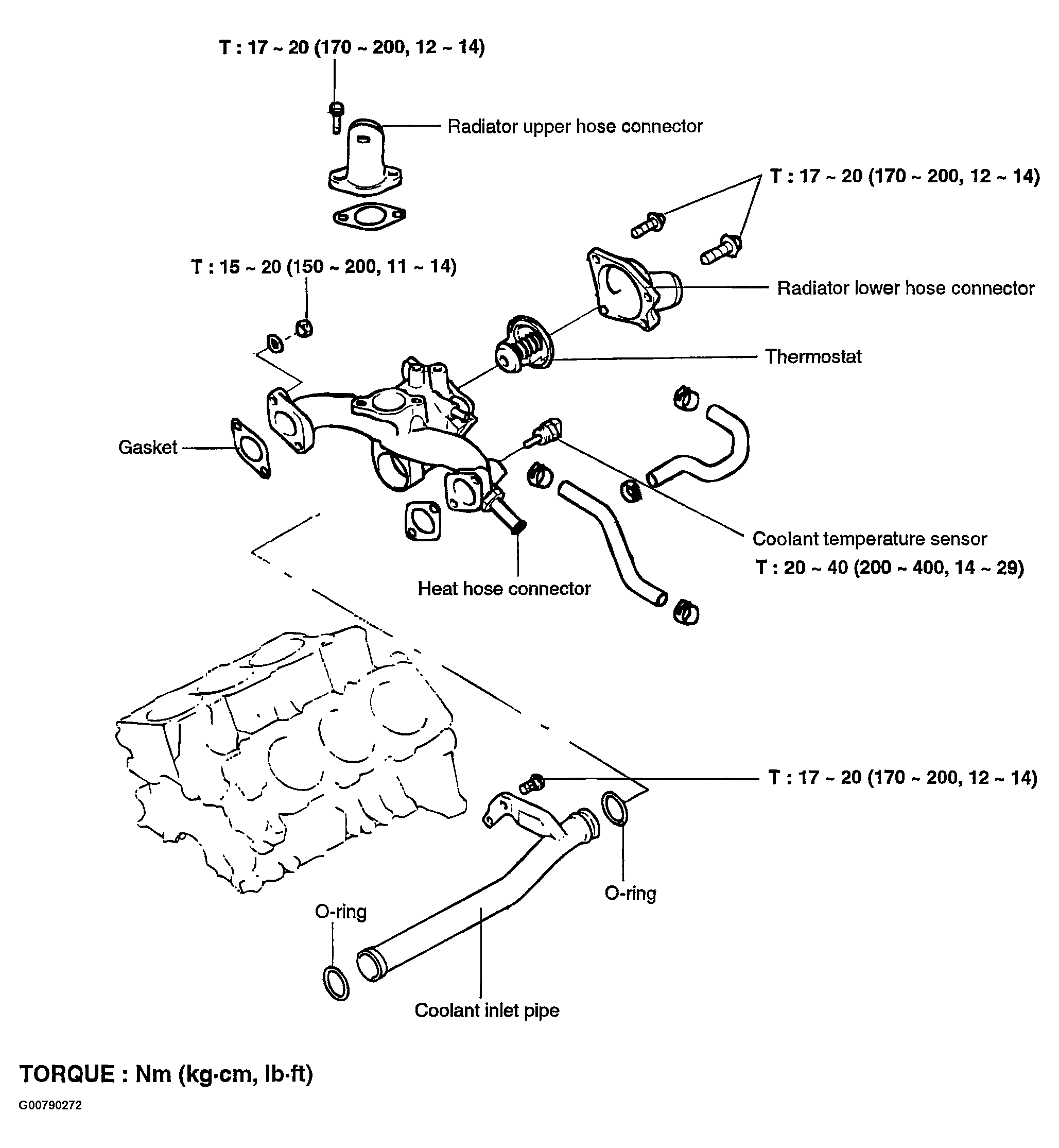

Fig 1: Engine Coolant Hose/Pipes Components
Courtesy of HYUNDAI MOTOR CO.
