Checking Condition

WARNING: This page is about a different variant/trim than selected.

Engine coolant temperature: 80~95°C (176~205°F)

Disconnect the vacuum hose from the throttle body EGR vacuum fitting and connect a hand vacuum pump to the fitting.

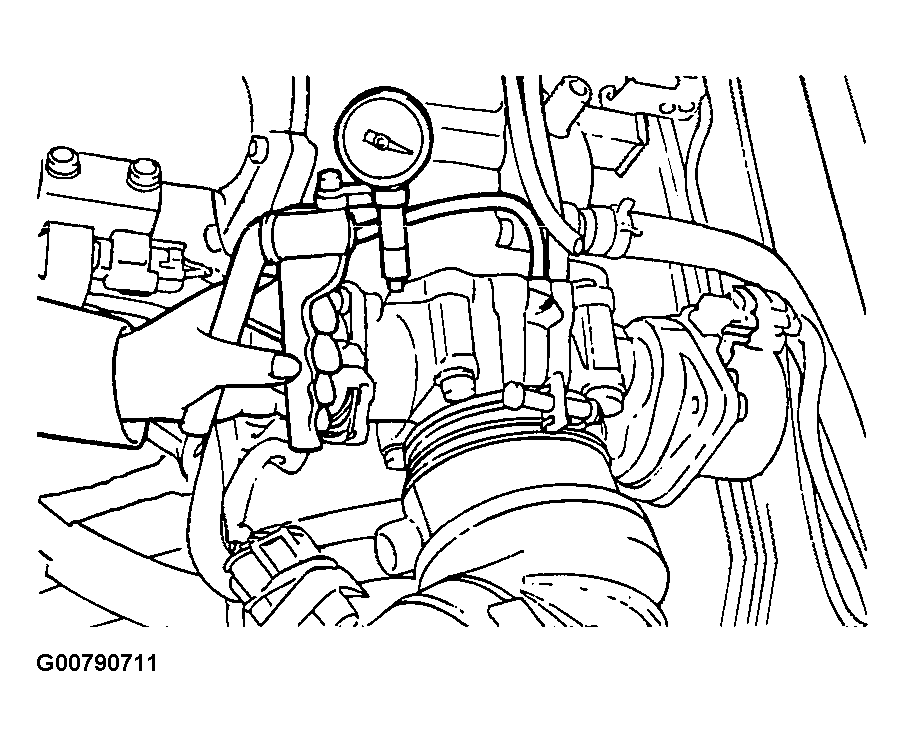

Fig 1: Checking EGR Valve Solenoid With Vacuum Pump
Courtesy of HYUNDAI MOTOR CO.
Start the engine and check to see that, after increasing the engine speed, vacuum rises proportionately to engine speed.
NOTE: If there is a problem with the change in vacuum, it is possible that the throttle body port may be restricted and require cleaning.
