Location Of MFI Components

WARNING: This page is about a different variant/trim than selected.

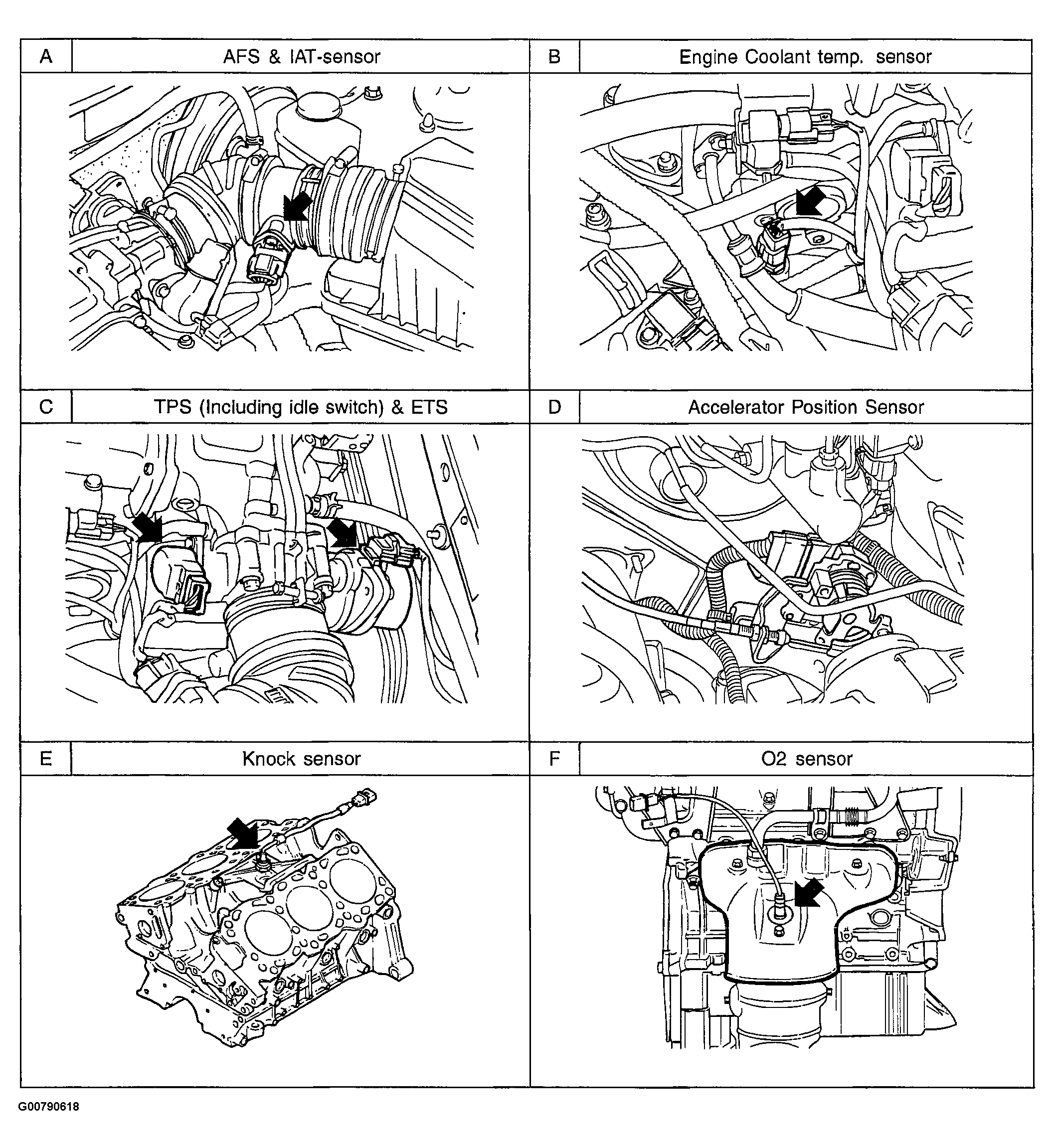

Fig 1: Location Of MFI Components (1 Of 4)

Courtesy of HYUNDAI MOTOR CO.

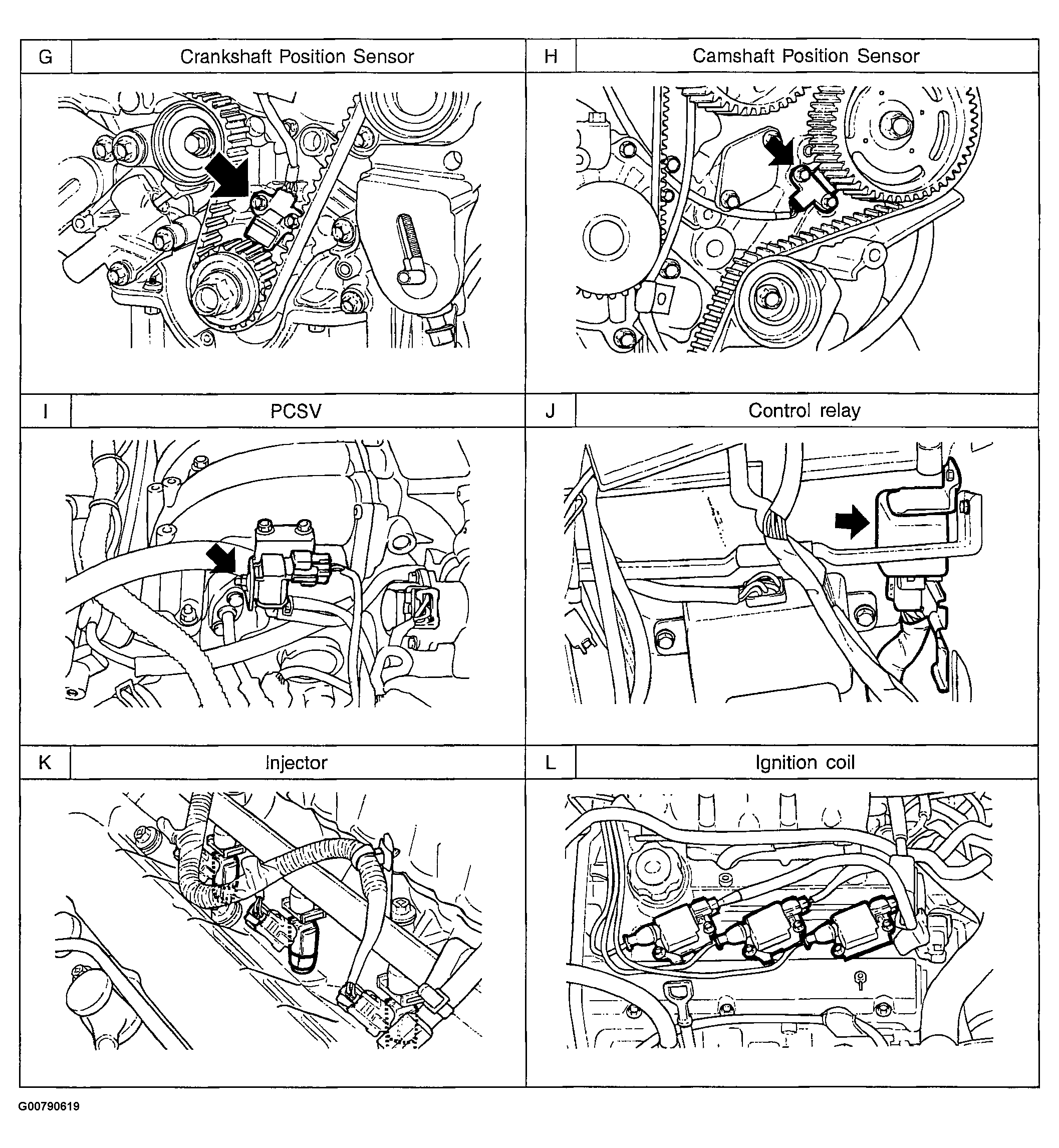

Fig 2: Location Of MFI Components (2 Of 4)

Courtesy of HYUNDAI MOTOR CO.

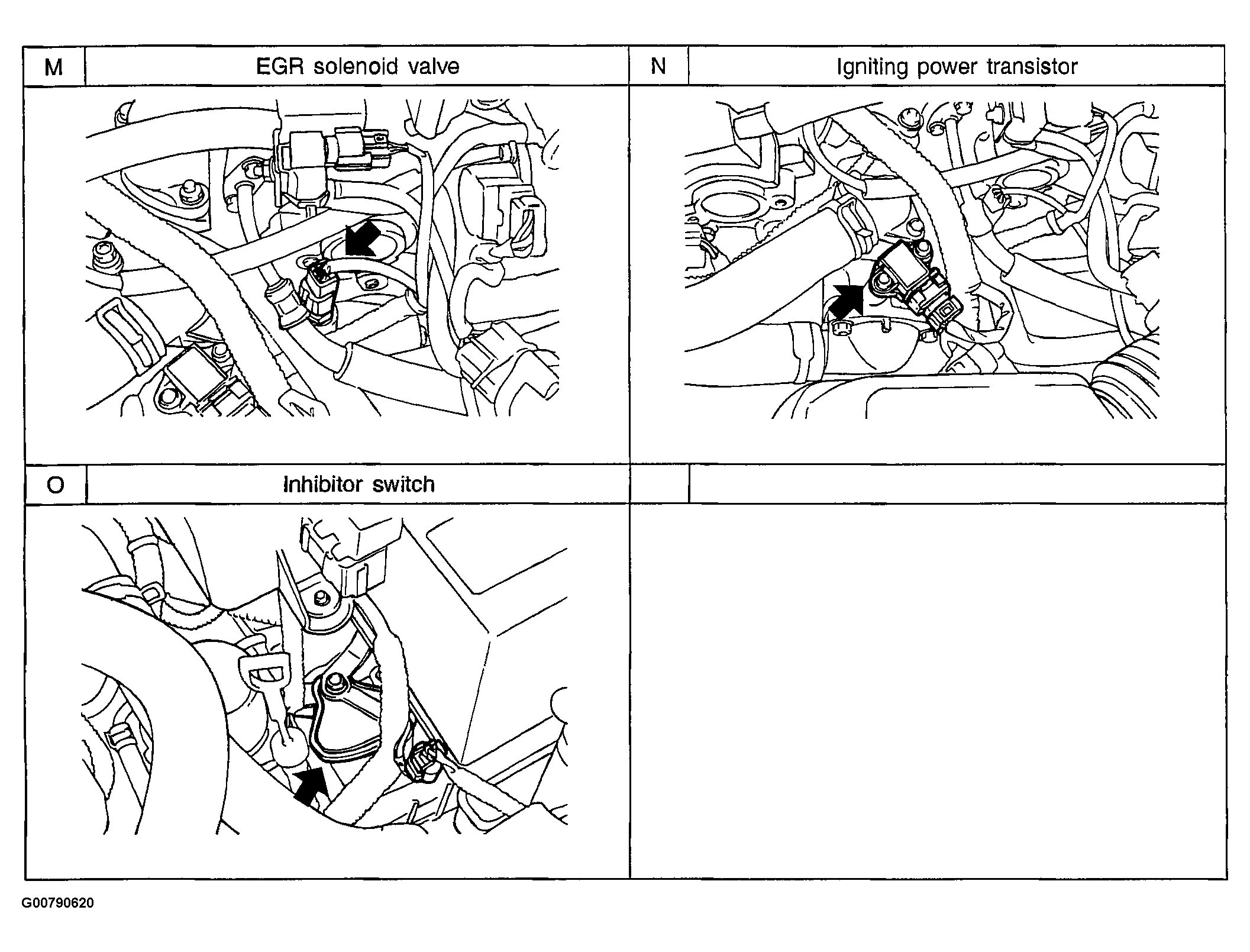

Fig 3: Location Of MFI Components (3 Of 4)

Courtesy of HYUNDAI MOTOR CO.

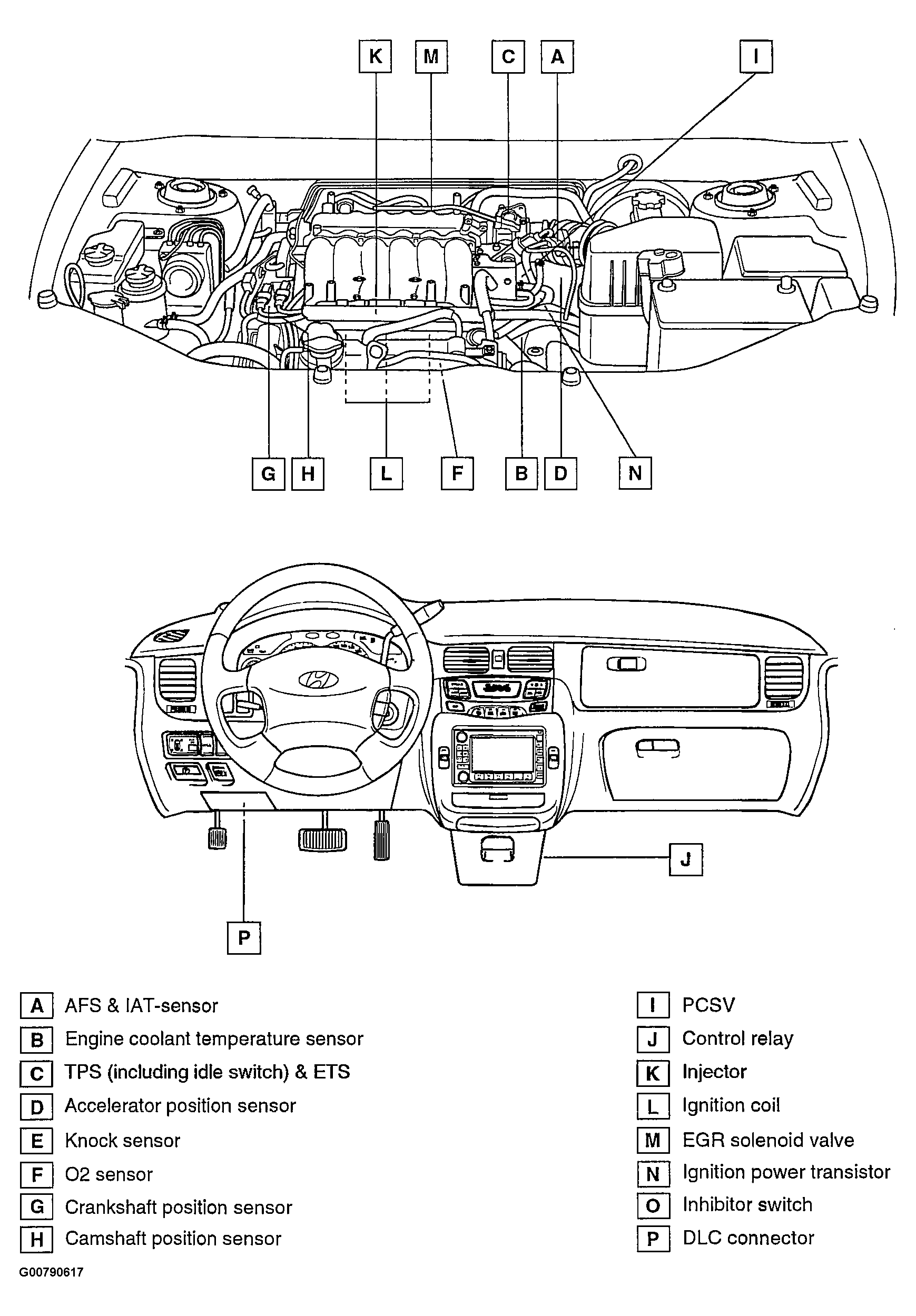

Fig 4: Location Of MFI Components (4 Of 4)

Courtesy of HYUNDAI MOTOR CO.
