Section 5 (Fuel System (3.5L))
>>
MFI Control System
>>
Canister Close Valve
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

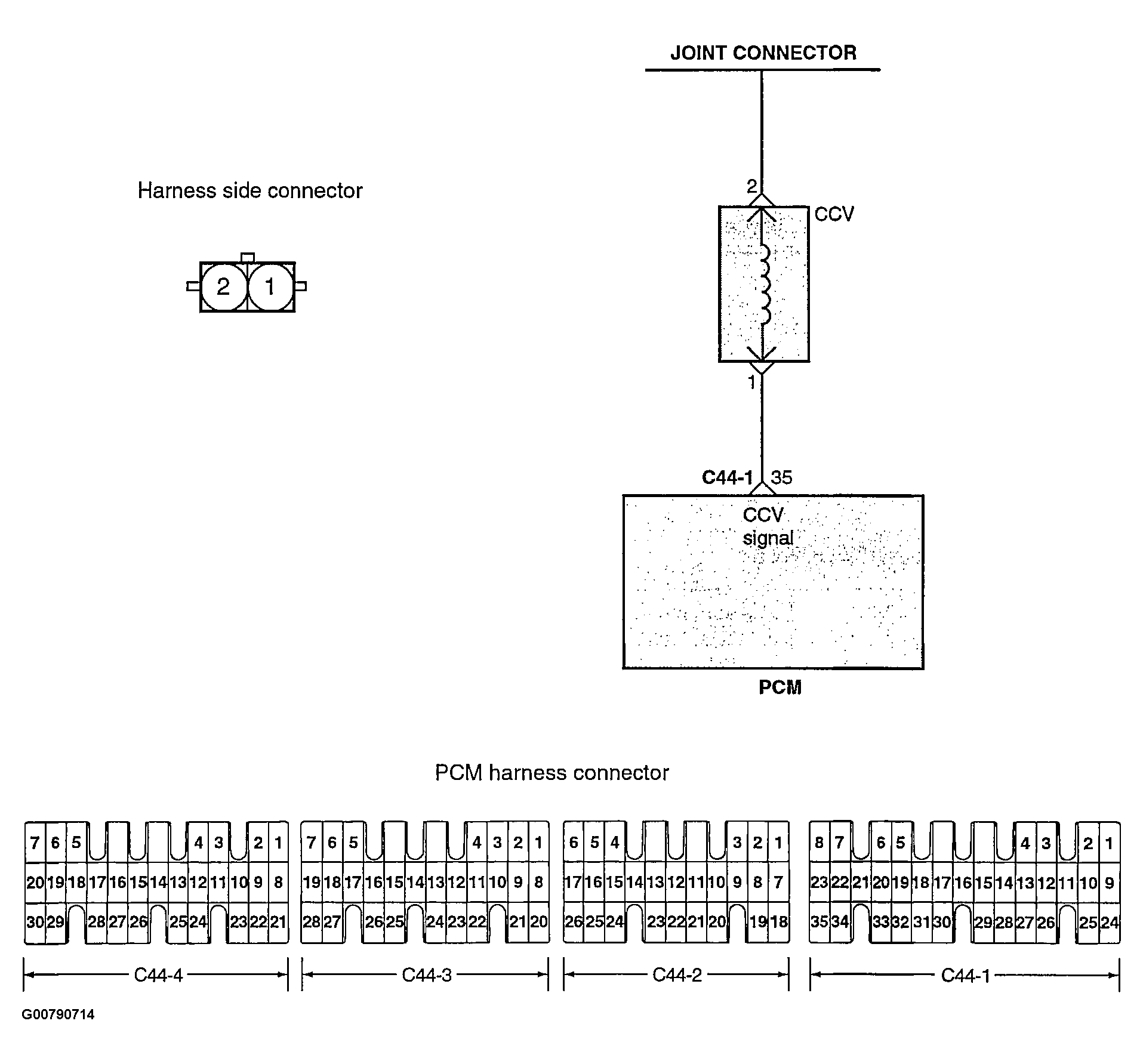

Fig 1: Canister Close Valve Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
