Section 5 (Fuel System (3.5L))
>>
General
>>
Troubleshooting
>>
Fuel Tank & Fuel Line
Fuel Tank & Fuel Line
WARNING:
This page is about a different variant/trim than selected.

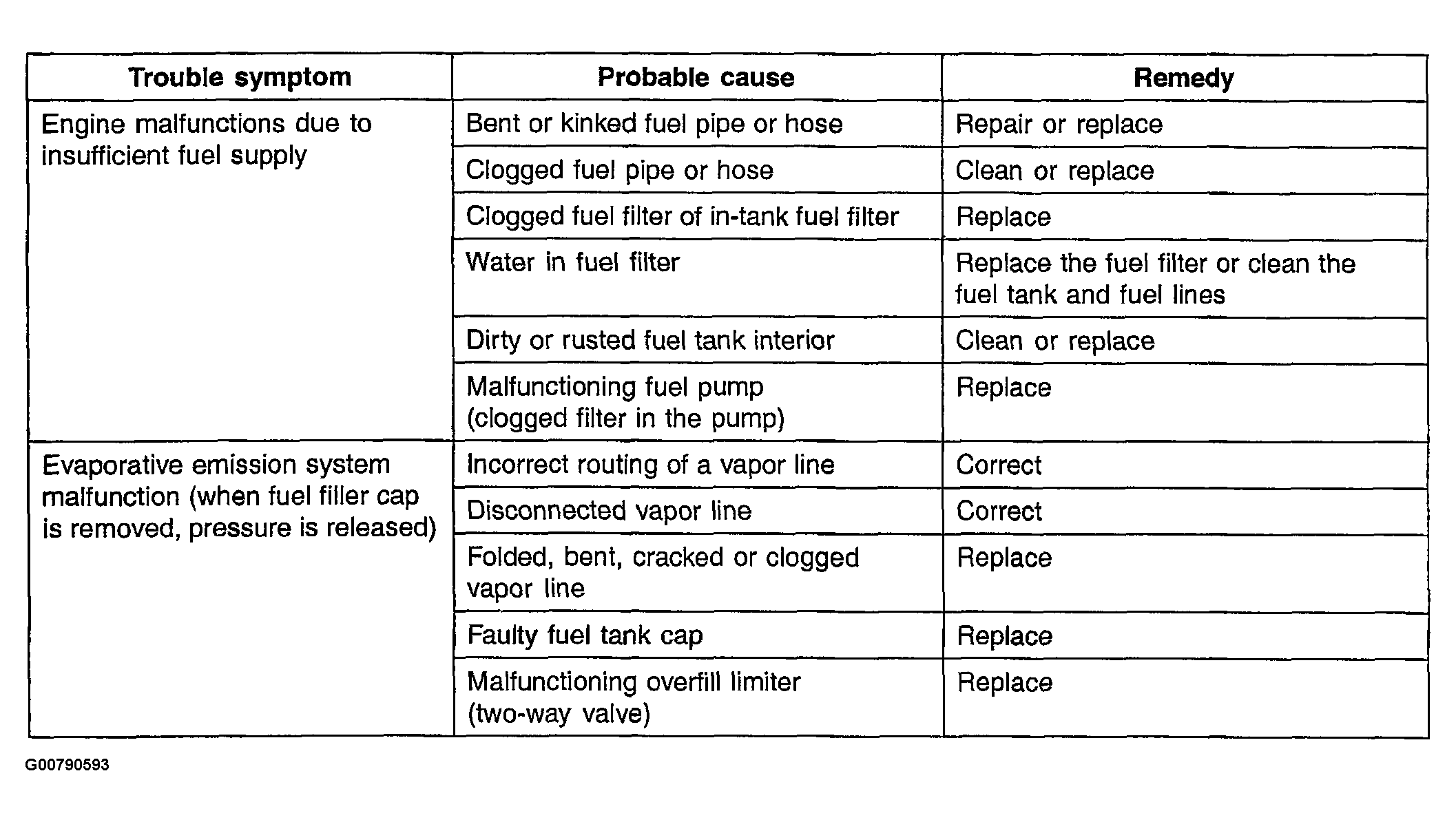

Fig 1: Fuel Tank & Fuel Line Troubleshooting Table
Courtesy of HYUNDAI MOTOR CO.
