Fuel Pump Operation Check
WARNING: This page is about a different variant/trim than selected.
- Turn the ignition switch to the OFF position.
- Apply battery voltage to the fuel pump drive connector to check that the pump operates.
NOTE: The fuel pump is an in-tank type and its operating sound is hard to hear without removing the fuel tank cap.

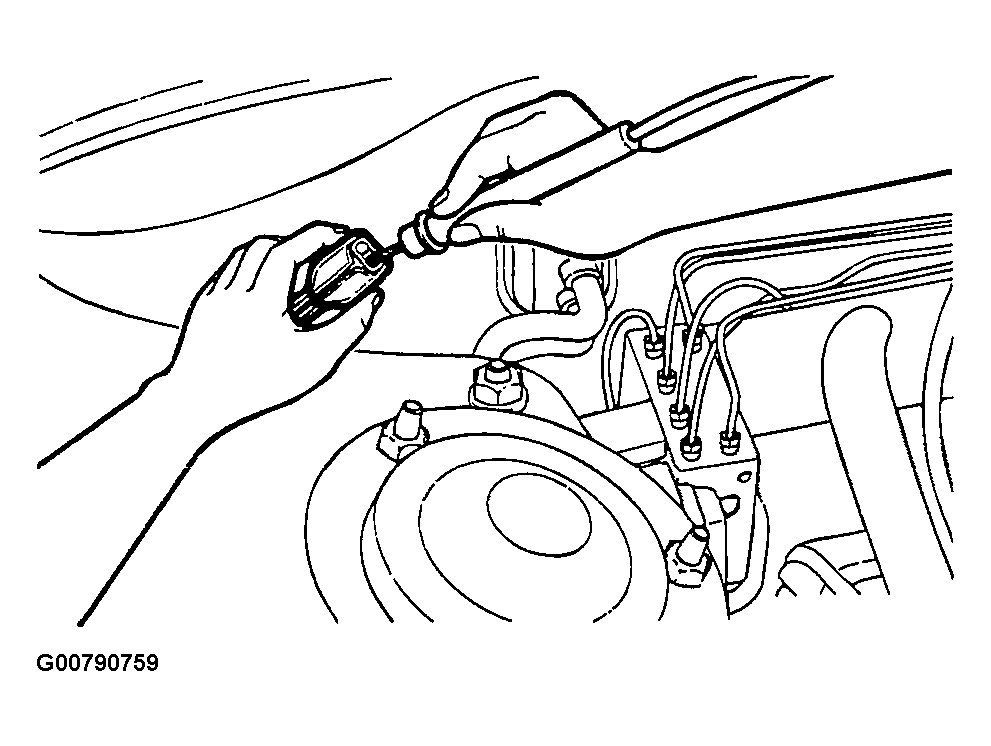

- Pinch the hose to check that fuel pressure is felt.
