Main Moving System: Crankshaft: Inspection: Notes

1. Check the crankshaft journals and pins for damage, uneven wear and cracks. Also check the oil holes for restrictions. Repair or replace any defective parts.
2. Inspect the crankshaft journal and pin for out-of-round and taper.

Standard value

Crankshaft journal O.D :

61.982 ~ 62.000 mm (2.4402 ~ 2.4409 in.)

Crankshaft pin O.D :

47.982 ~ 48.000 mm (1.8890 ~ 1.8898 in.)

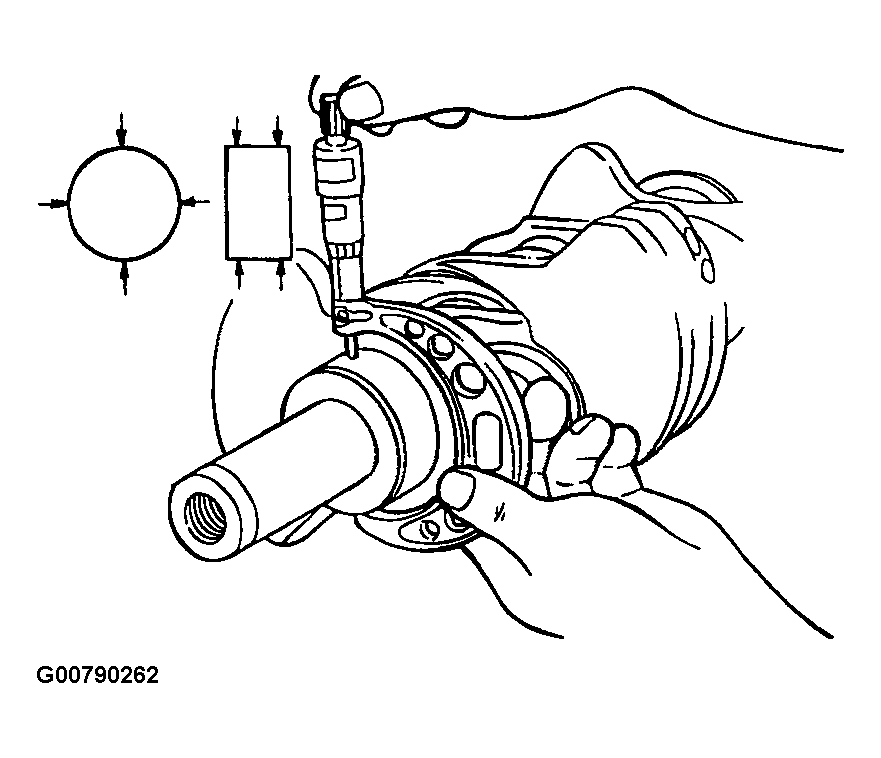

Fig 1: Checking Crankshaft Journal

Courtesy of HYUNDAI MOTOR CO.
