Main Moving System: Crankshaft: Components
WARNING:
This page is about a different variant/trim than selected.

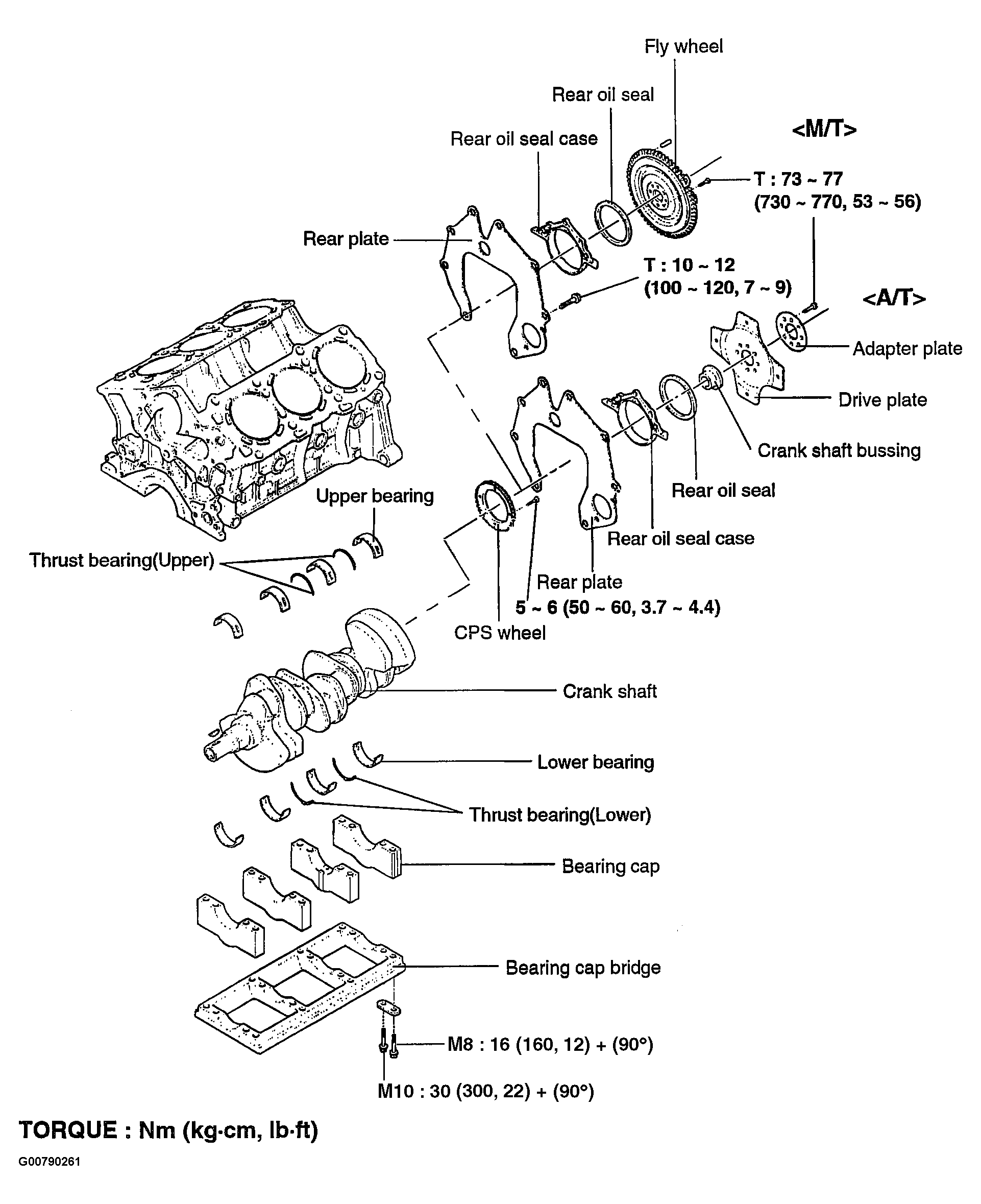

Fig 1: Crankshaft Components
Courtesy of HYUNDAI MOTOR CO.
