Hla (Hydraulic Lash Adjuster)

With the HLA filled with engine oil, hold A and press B by hand. If B moves, replace the HLA.

Fig 1: Checking Hydraulic Lash Adjuster

Courtesy of HYUNDAI MOTOR CO.

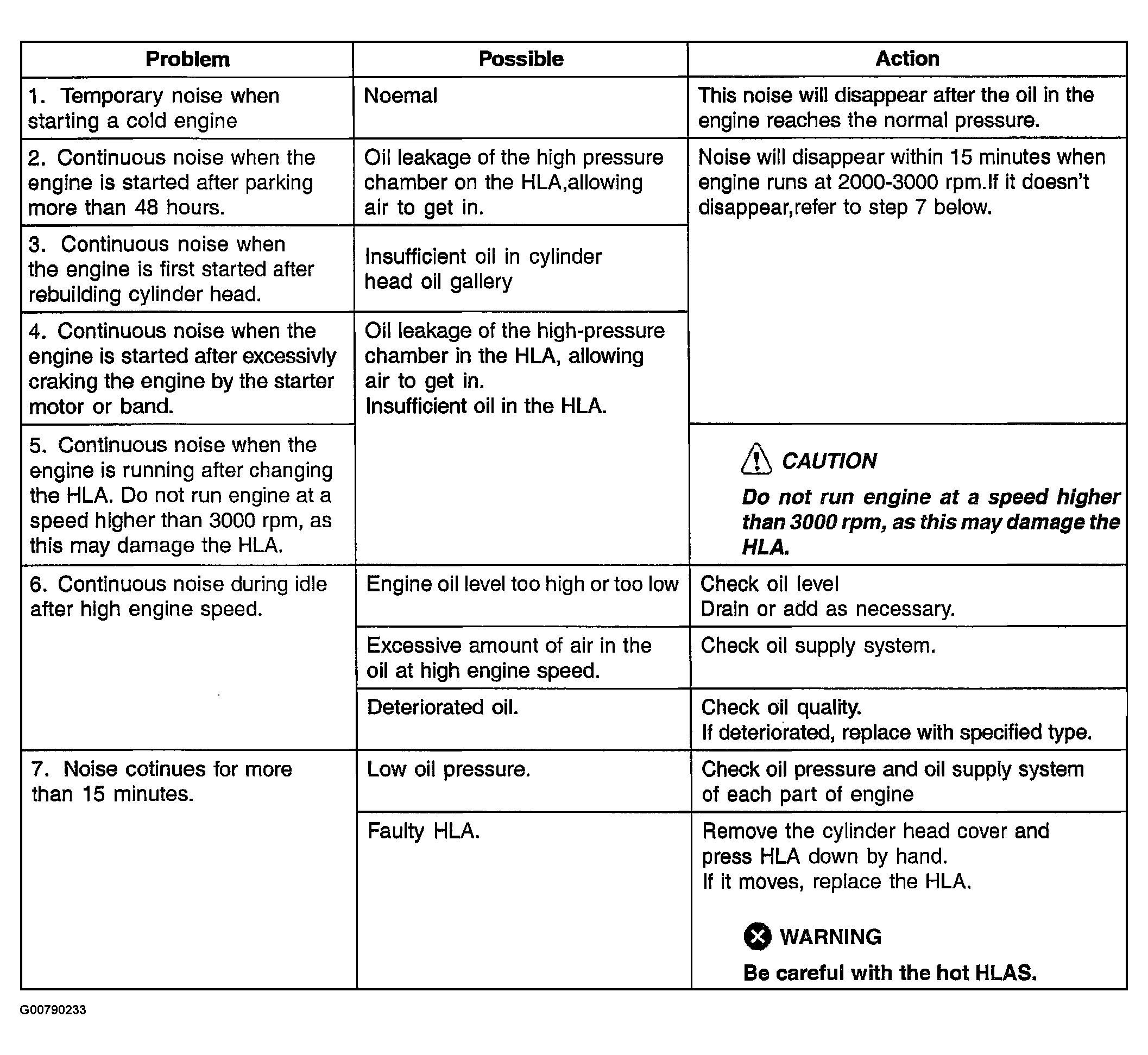

Fig 2: Engine Noise Symptom Chart

Courtesy of HYUNDAI MOTOR CO.
