Main Moving System: Camshaft: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine cover and intake manifold.

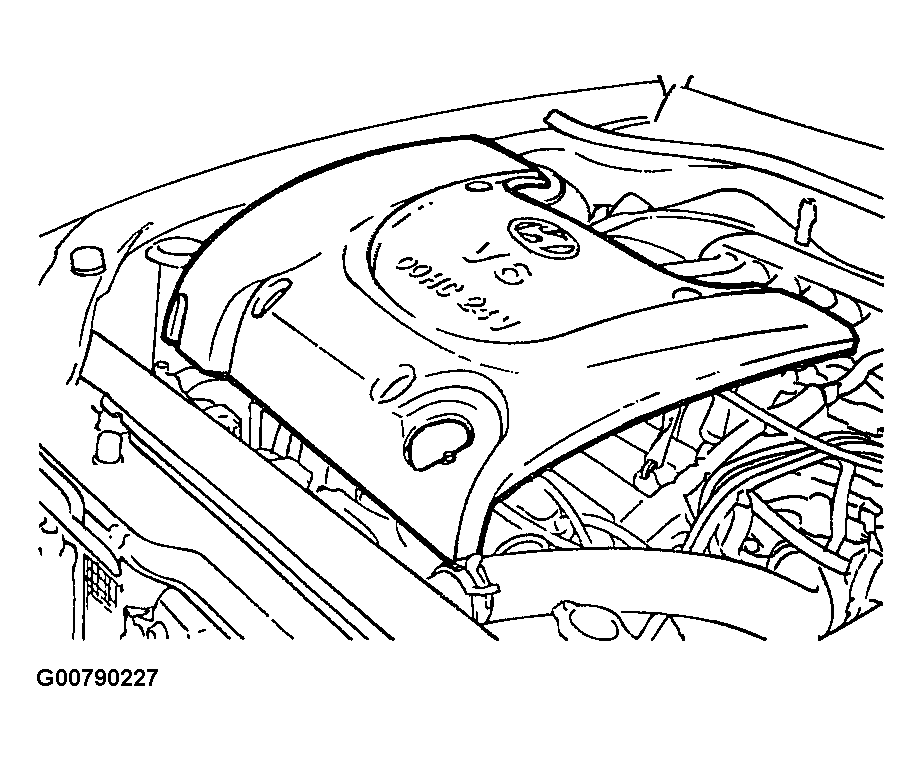

    Fig 1: Identifying Engine Cover
    G00790227Courtesy of HYUNDAI MOTOR CO.
  2. Disconnect the breather hose and the engine harness.
  3. Remove the power steering pulley, air conditioner pulley, crankshaft pulley, idler pulley and tensioner pulley.
  4. Remove the timing belt cover.
  5. Loosen the auto tensioner.
  6. Remove the timing belt from the camshaft sprocket.
  7. Remove the spark plug cables.
  8. Loosen the cylinder head cover bolts and then remove it.

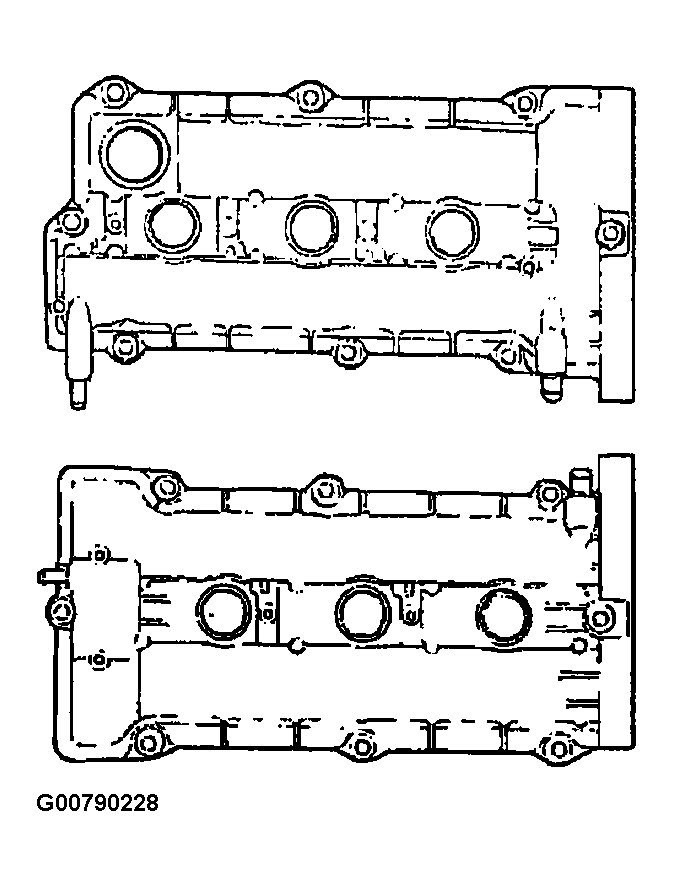

    Fig 2: Identifying Cylinder Head Covers
    G00790228Courtesy of HYUNDAI MOTOR CO.
  9. Remove the camshaft sprockets.
  10. Remove the camshaft bearing caps.

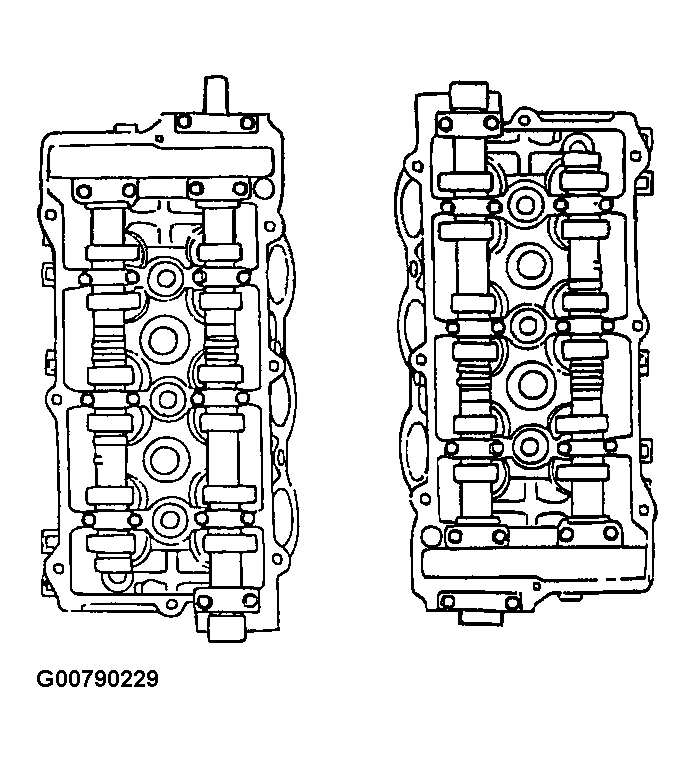

    Fig 3: View Of Camshafts In Cylinder Heads
    G00790229Courtesy of HYUNDAI MOTOR CO.
  11. Remove the camshafts.

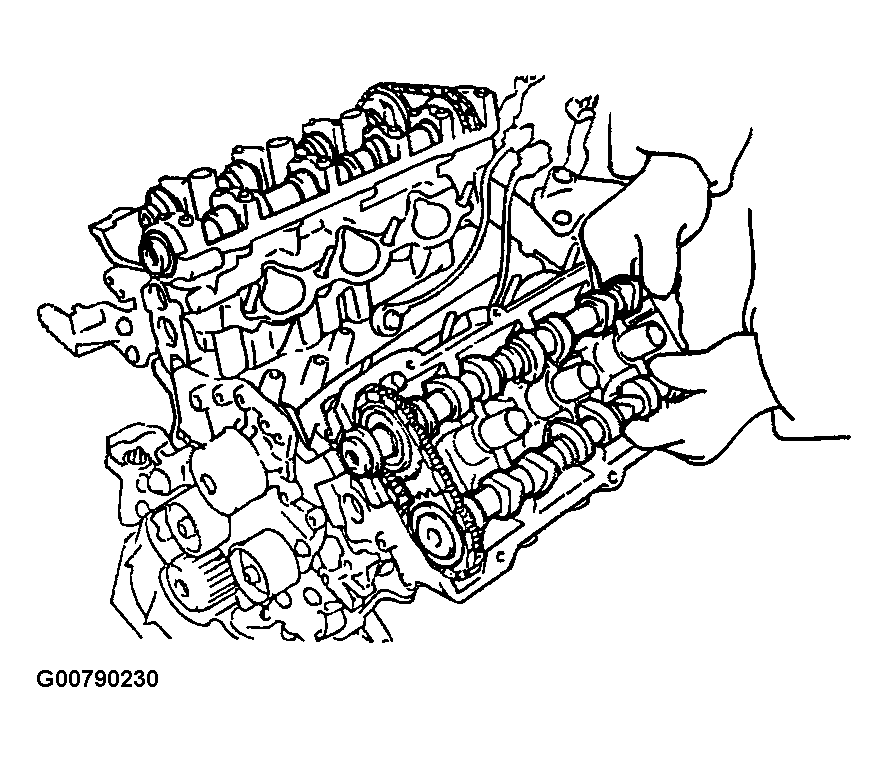

    Fig 4: Removing Camshafts
    G00790230Courtesy of HYUNDAI MOTOR CO.
