Section 3 (2.7L V6 Engine)
>>
Main Moving System
>>
Camshaft
>>
Components
Main Moving System: Camshaft: Components
WARNING:
This page is about a different variant/trim than selected.

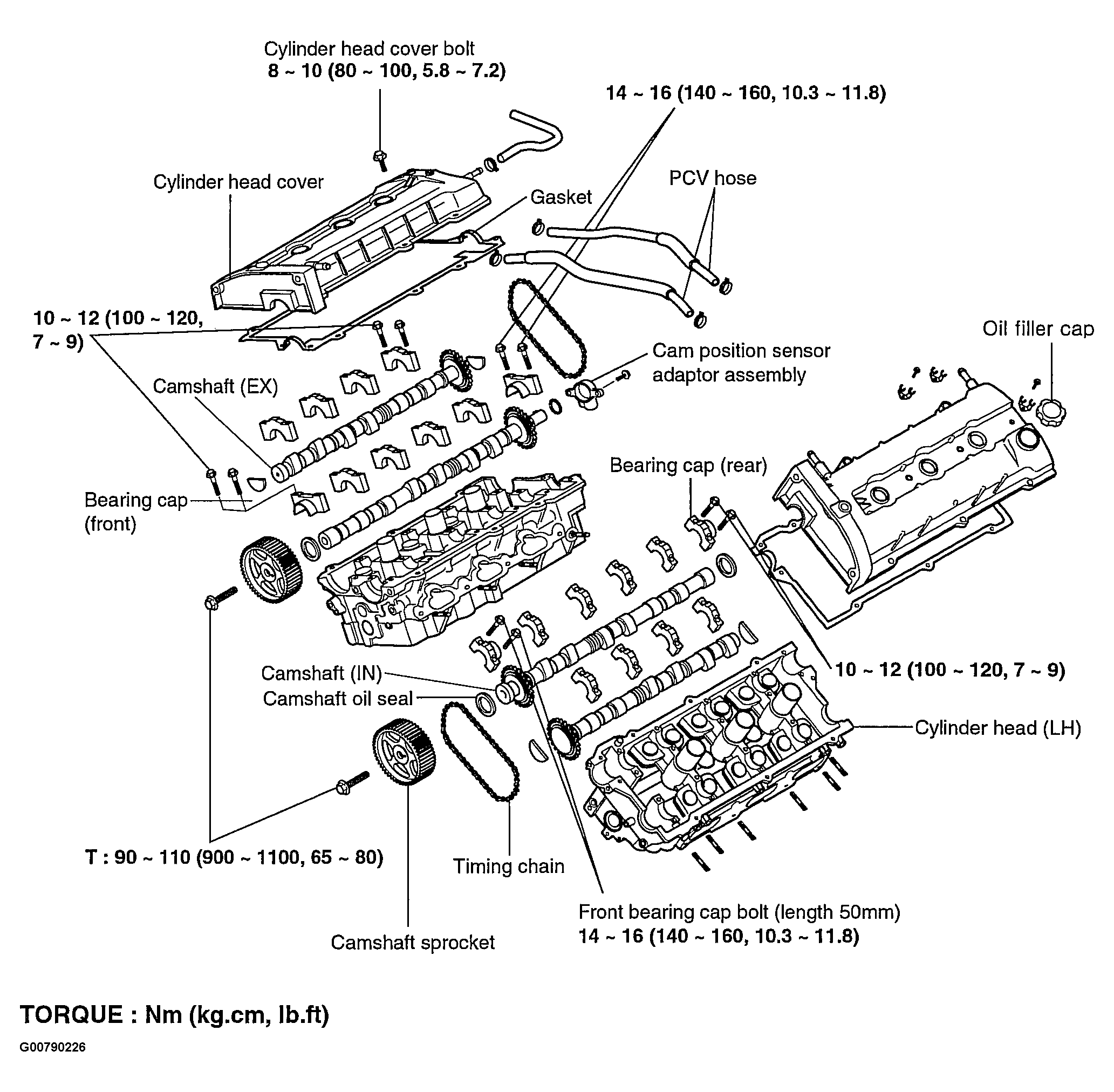

Fig 1: Camshaft Components
Courtesy of HYUNDAI MOTOR CO.
