Main Muffler

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before removing or inspecting the exhaust system, ensure that the exhaust system is cool.
  1. Disconnect the main muffler from the center exhaust pipe.

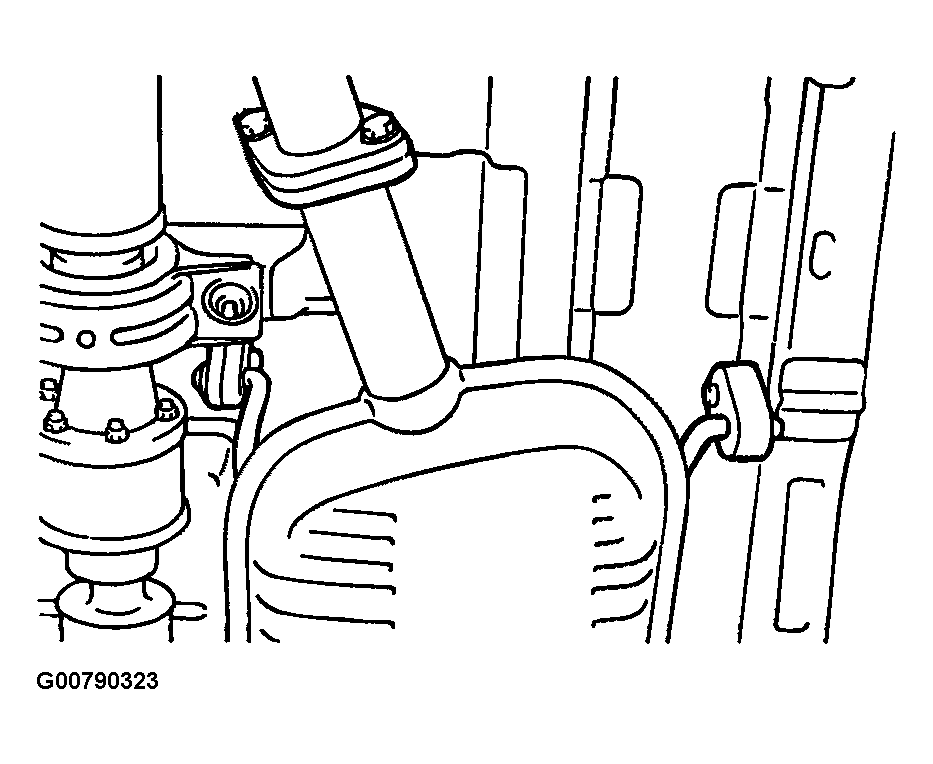

    Fig 1: View Of Exhaust Muffler
    G00790323Courtesy of HYUNDAI MOTOR CO.
  2. Remove the rubber hangers and the main muffler.

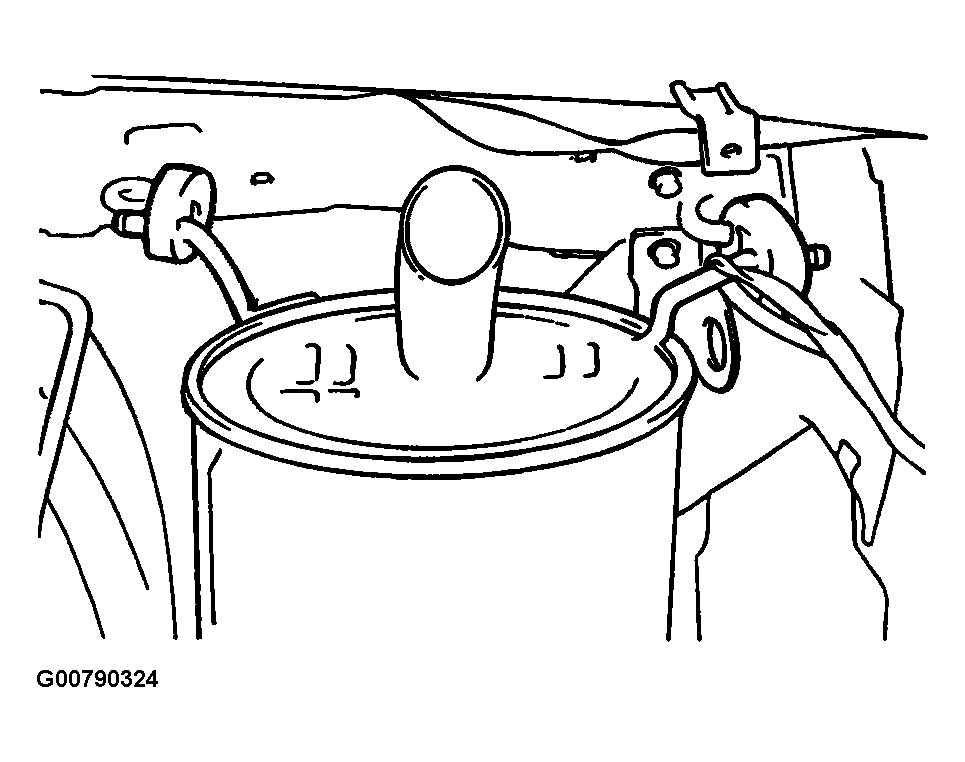

    Fig 2: Veiw Of Muffler Hangers
    G00790324Courtesy of HYUNDAI MOTOR CO.

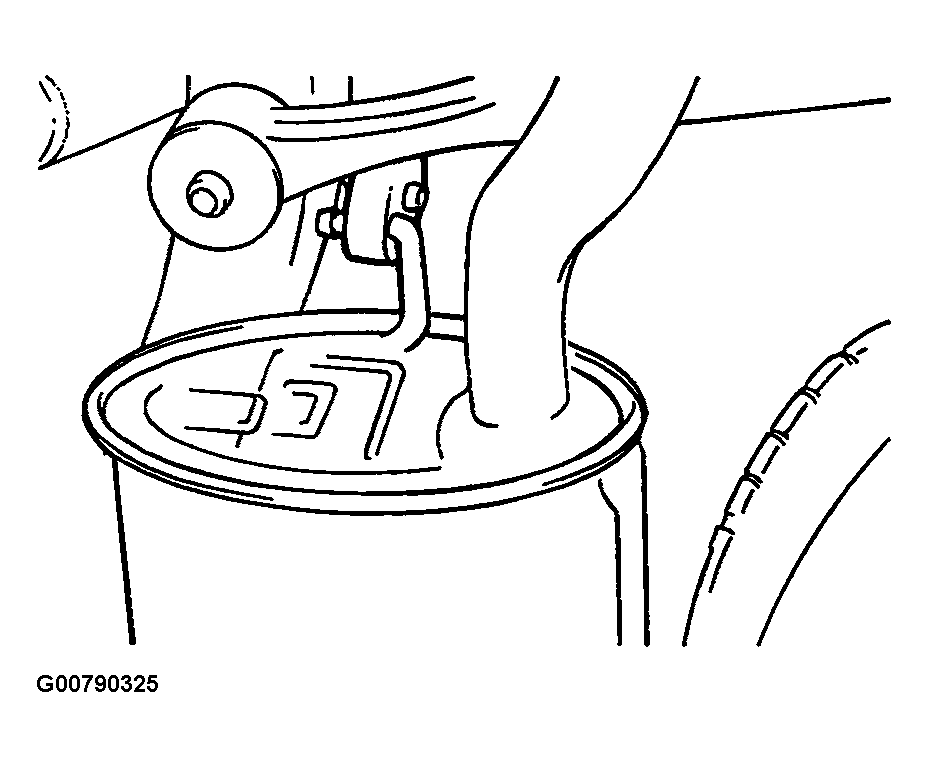

    Fig 3: Veiw Of Muffler Hangers
    G00790325Courtesy of HYUNDAI MOTOR CO.
