Front Exhaust Pipe (Including Catalytic Converter)

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front exhaust pipe from the center exhaust pipe.
  2. Remove the front exhaust pipe bolt and the exhaust manifold pipe mounting nuts.

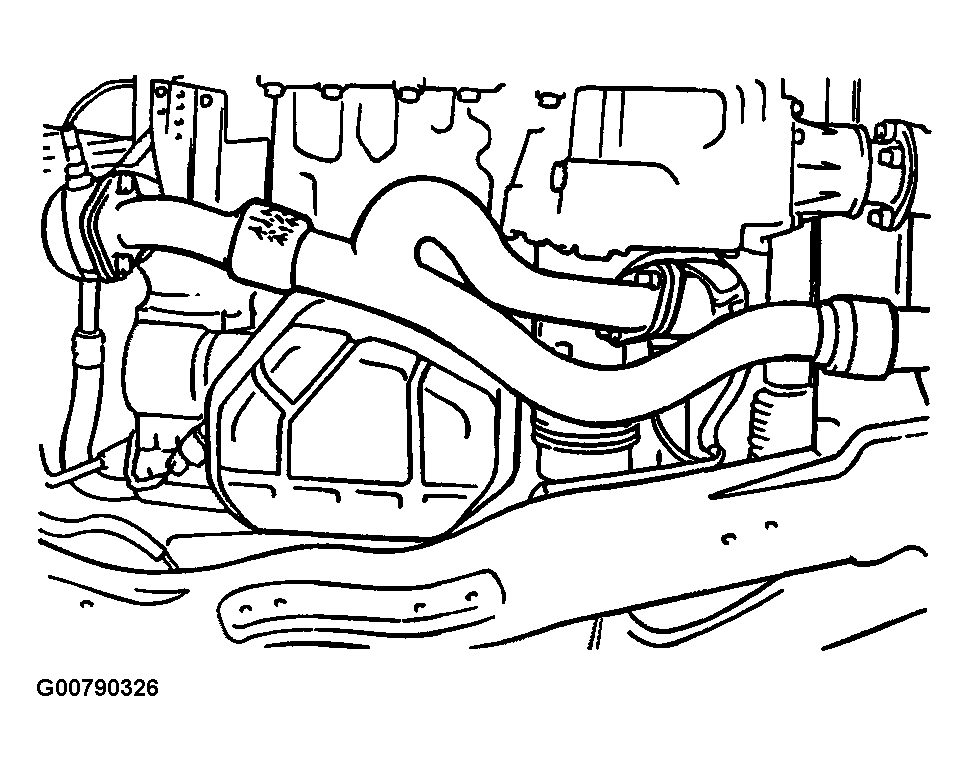

    Fig 1: Veiw Of Exhaust Pipe
    G00790326Courtesy of HYUNDAI MOTOR CO.
  3. Remove the front exhaust pipe from the rubber hanger.

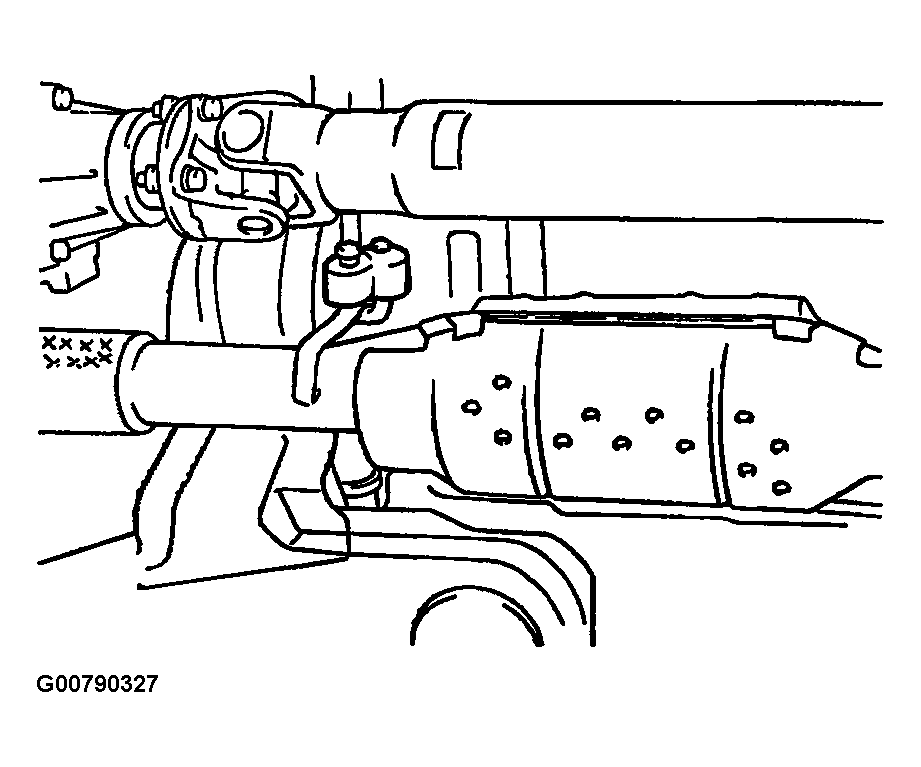

    Fig 2: Veiw Of Front Exhaust Pipe & Rubber Hanger
    G00790327Courtesy of HYUNDAI MOTOR CO.

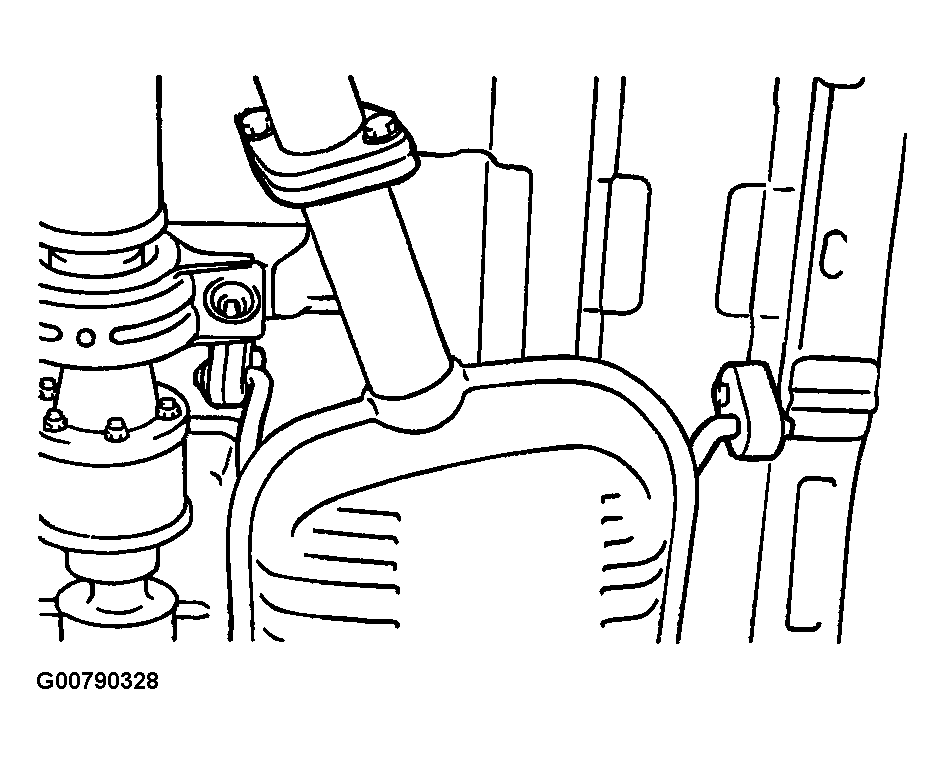

    Fig 3: View Of Front Exhaust Pipe & Rubber Hangers
    G00790328Courtesy of HYUNDAI MOTOR CO.
