Section 3 (2.7L V6 Engine)
>>
Intake And Exhaust System
>>
Muffler And Catalytic Converter
>>
Components
Muffler And Catalytic Converter: Components
WARNING:
This page is about a different variant/trim than selected.

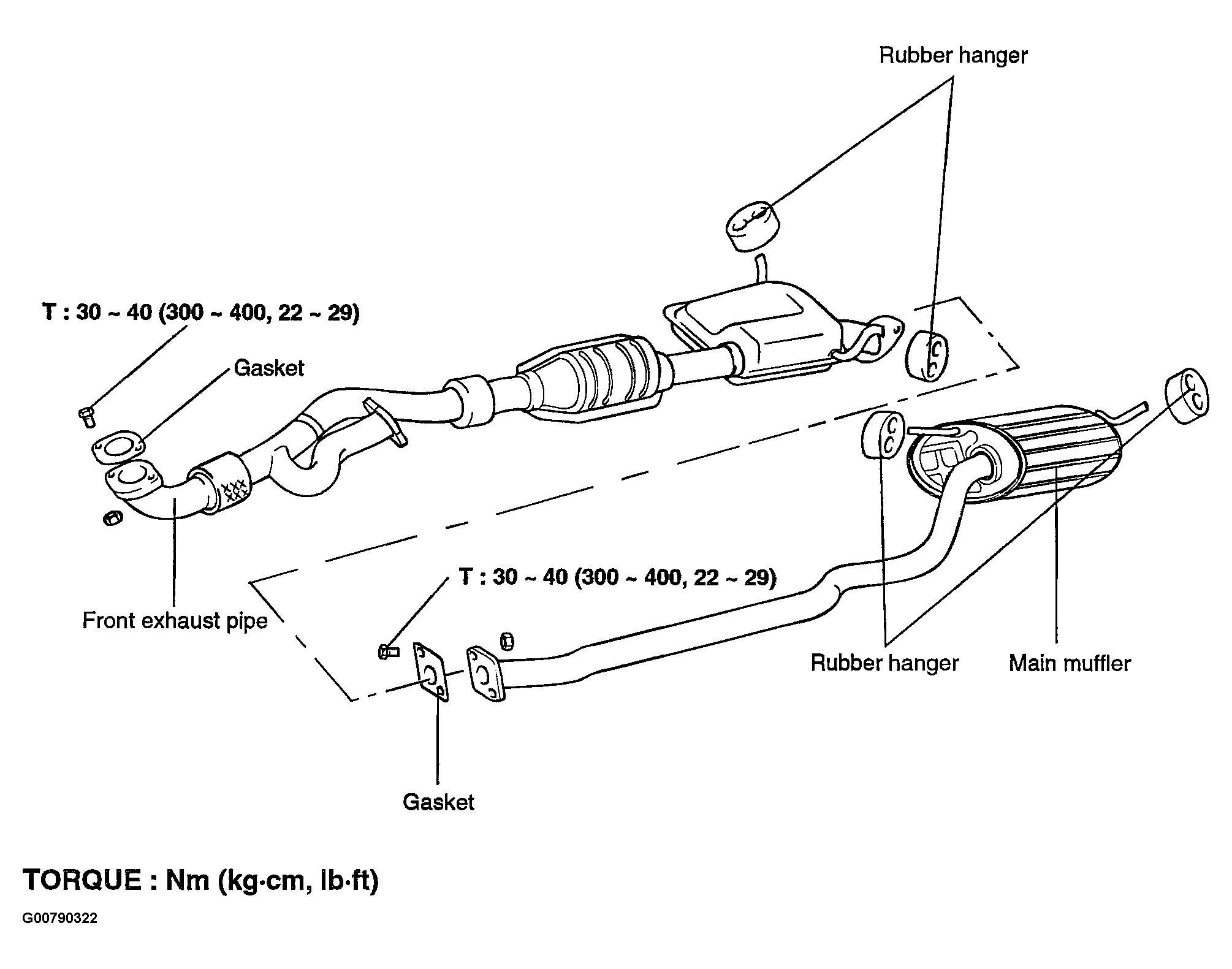

Fig 1: Muffler And Catalytic Converter Components
Courtesy of HYUNDAI MOTOR CO.
