Intake Manifold: Removal

WARNING: This page is about a different variant/trim than selected.

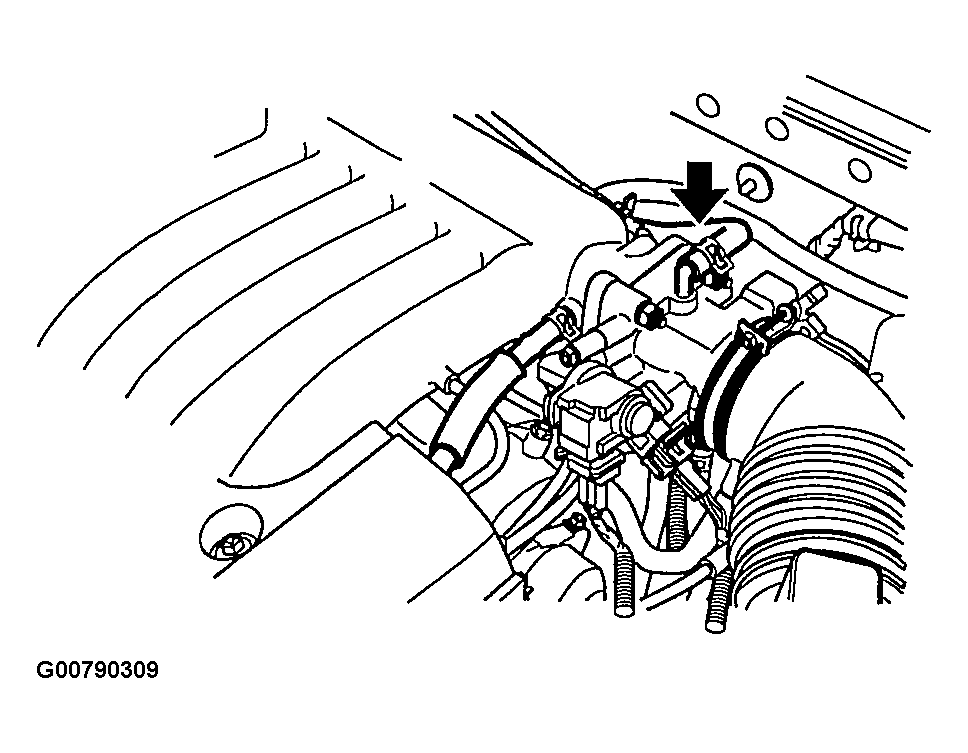

Remove the air intake hose connected to the throttle body.

Fig 1: Identifying Air Intake Hose & Throttle Body
Courtesy of HYUNDAI MOTOR CO.
Remove the accelerator and cruise control cables.

Fig 2: Identifying Accelerator & Cruise Control Cables
Courtesy of HYUNDAI MOTOR CO.
Remove the engine coolant hose and throttle body.
Remove the P.C.V. hose and brake booster vacuum hoses.

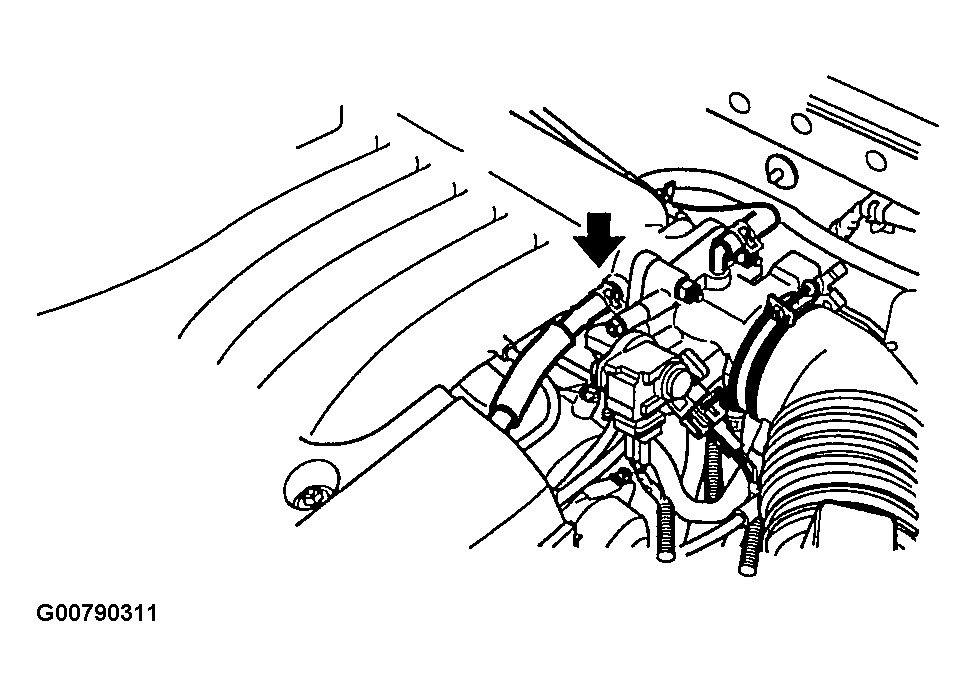

Disconnect the vacuum hose connections.

Fig 3: Identifying Vacuum Hose
Courtesy of HYUNDAI MOTOR CO.

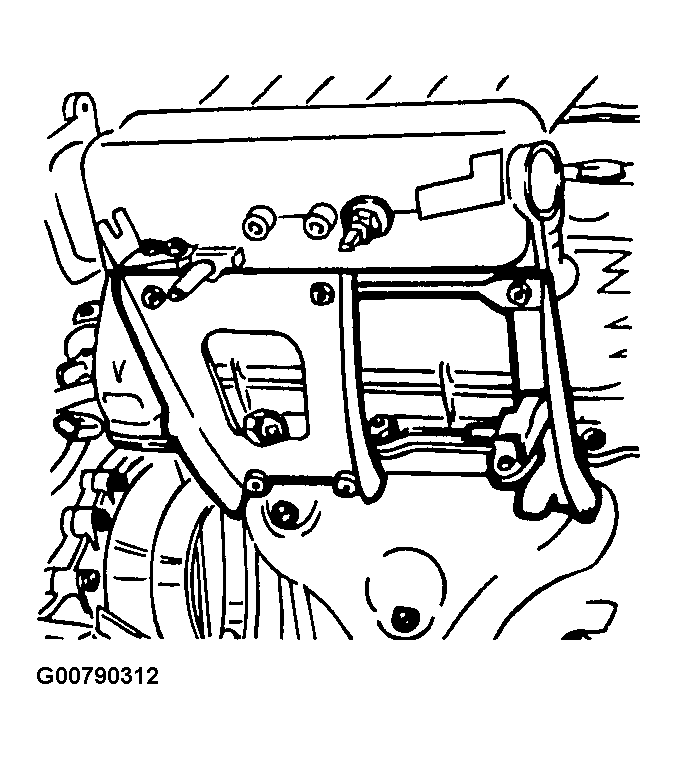

Remove the air intake surge tank stay.

Fig 4: View Of Air Intake Surge Tank
Courtesy of HYUNDAI MOTOR CO.
Bleed off the pressure in the fuel pipe line to prevent the fuel from spilling.

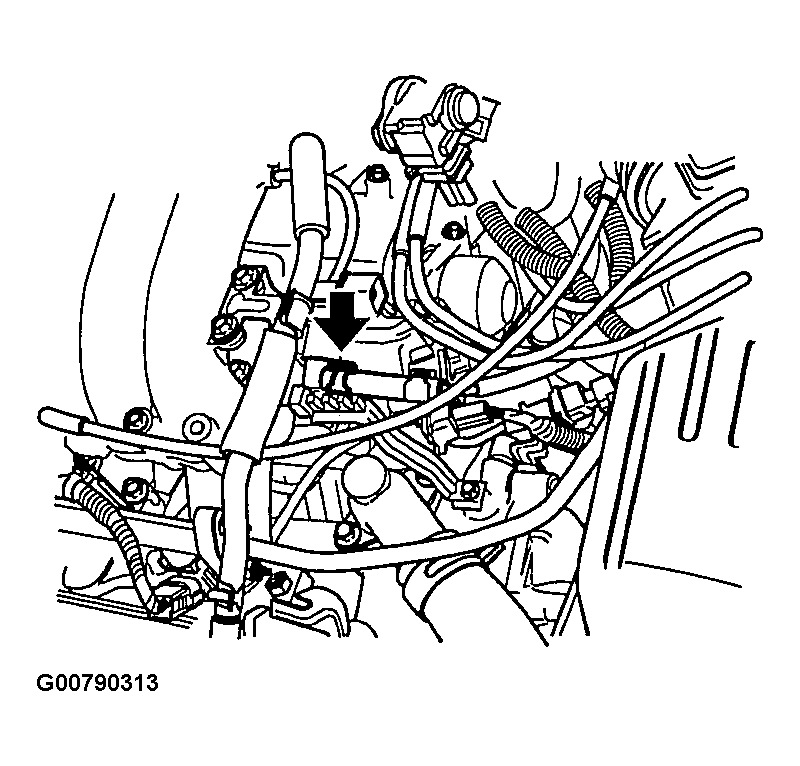

Disconnect the connector from high pressure hose.

Fig 5: Identifying High Pressure Hose Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the air intake surge tank.

Fig 6: Removing Air Intake Surge Tank
Courtesy of HYUNDAI MOTOR CO.

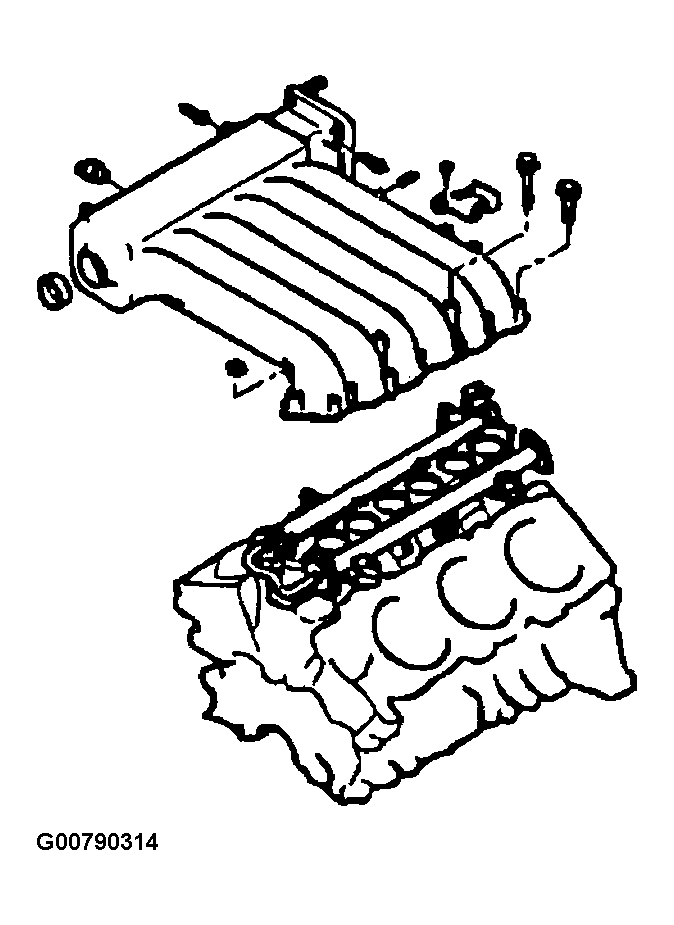

Remove the air intake surge tank and gasket.

Fig 7: View Of Air Intake Surge Tank Gasket
Courtesy of HYUNDAI MOTOR CO.

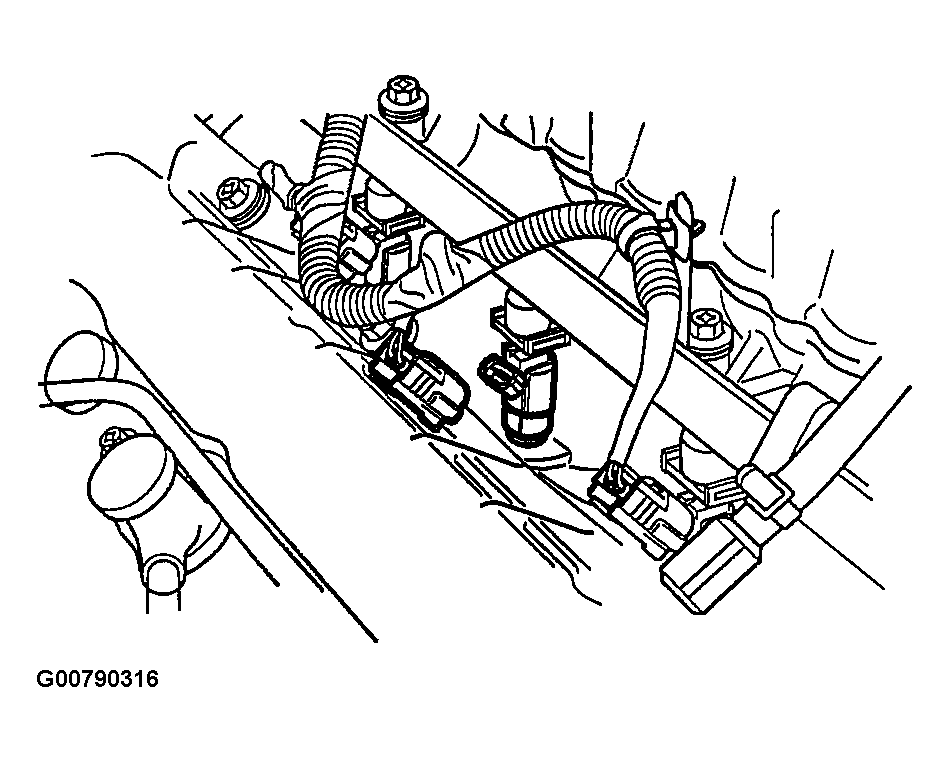

Disconnect the fuel injector harness connector.

Fig 8: View Of Fuel Injector Harness
Courtesy of HYUNDAI MOTOR CO.

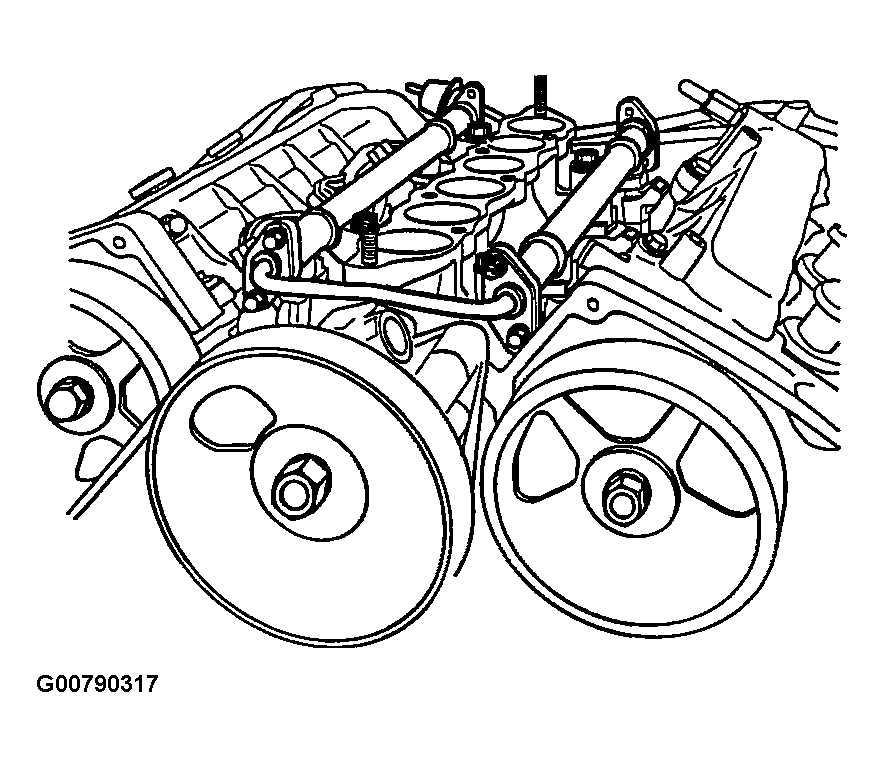

Remove the delivery pipe with the fuel injector and the pressure regulator.
NOTE: When the delivery pipe is removed, be careful not to drop an injector.

Fig 9: View Of Fuel Injector Delivery Pipe
Courtesy of HYUNDAI MOTOR CO.

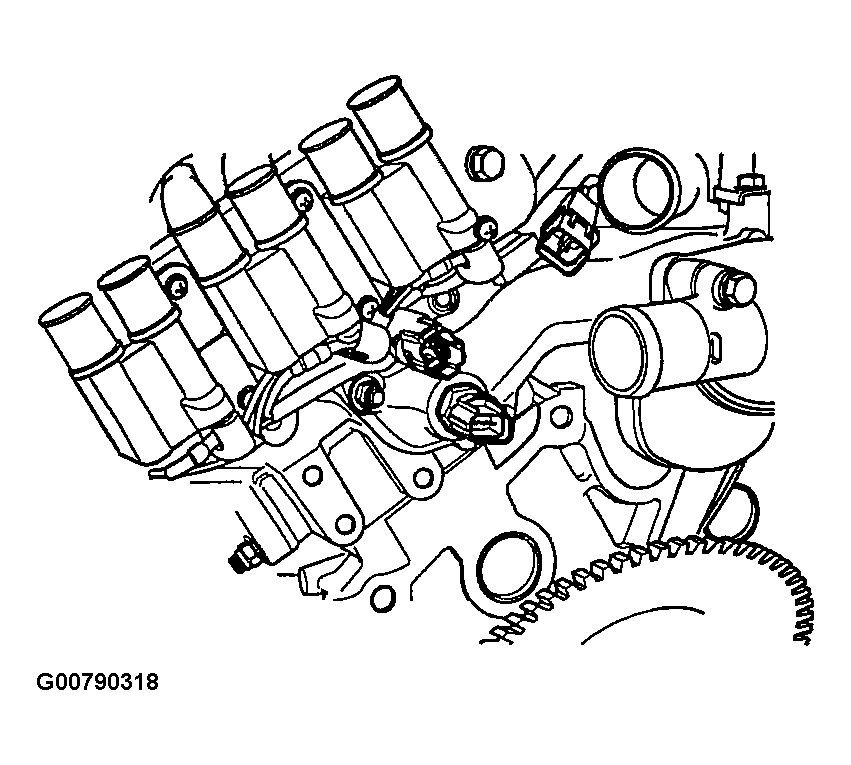

Disconnect the wiring harness of the coolant sensor assembly.

Fig 10: View Of Coolant Sensor
Courtesy of HYUNDAI MOTOR CO.
