Exhaust Manifold And Catalytic Converter: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the heat protector.

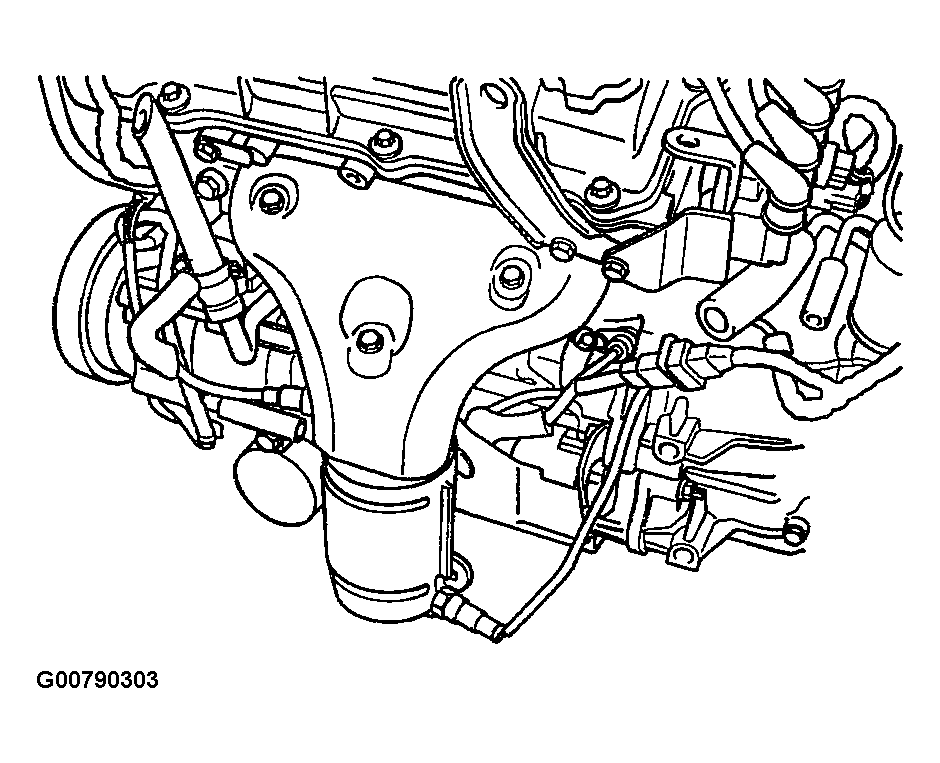

    Fig 1: Identifying Heat Protector
    G00790303Courtesy of HYUNDAI MOTOR CO.
  2. Remove the exhaust manifold.

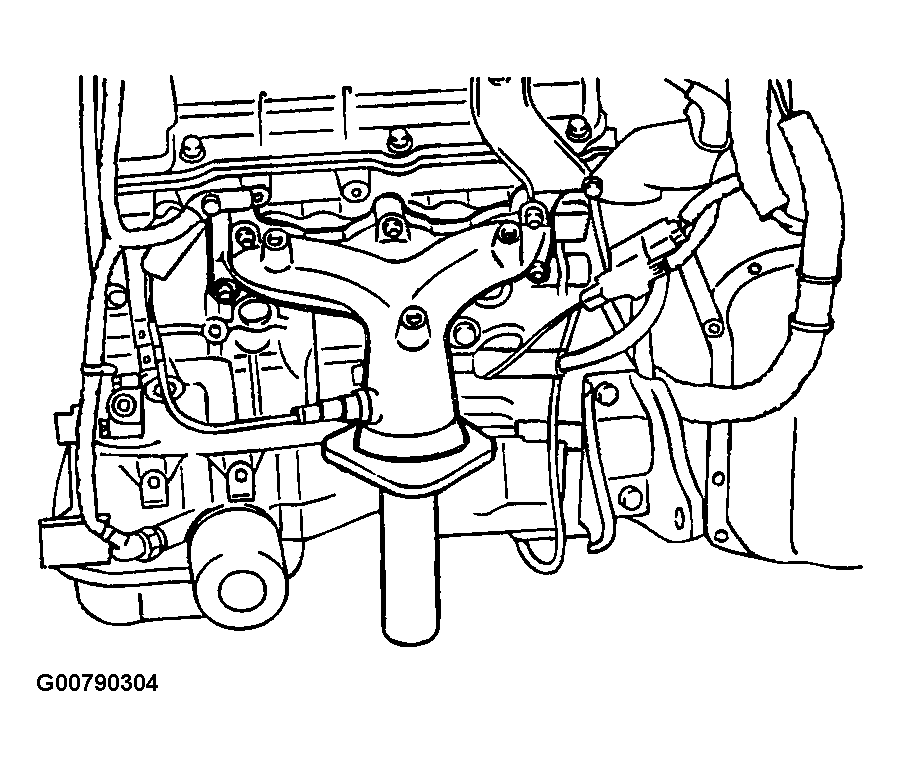

    Fig 2: Identifying Exhaust Manifold
    G00790304Courtesy of HYUNDAI MOTOR CO.
  3. Remove the exhaust manifold gasket.
