Exhaust Manifold And Catalytic Converter: Installation

WARNING: This page is about a different variant/trim than selected.

Install the exhaust manifold with gasket.
Tightening torque

Exhaust manifold :

30 ~ 35 Nm (300 ~ 350 kg.cm, 22 ~ 26 lb.ft)

NOTE: Do not re - use an exhaust manifold gasket.

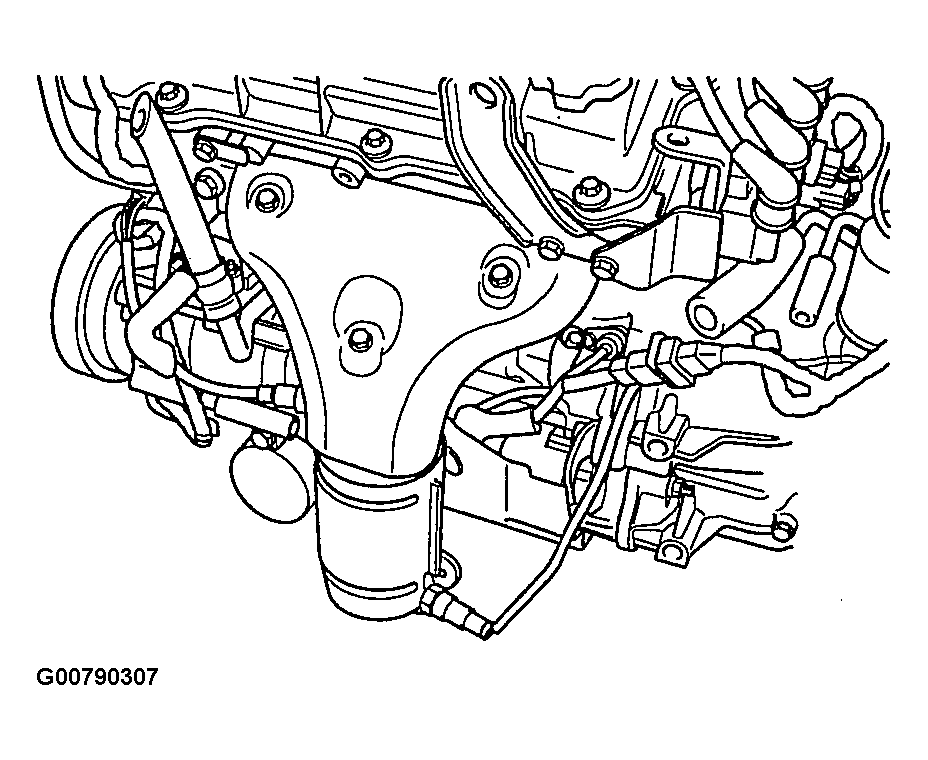

Fig 1: Installing Exhaust Manifold
Courtesy of HYUNDAI MOTOR CO.
Install the heat protector.

Fig 2: Identifying Heat Protector
Courtesy of HYUNDAI MOTOR CO.
