Air Cleaner (ACL): Removal
WARNING: This page is about a different variant/trim than selected.

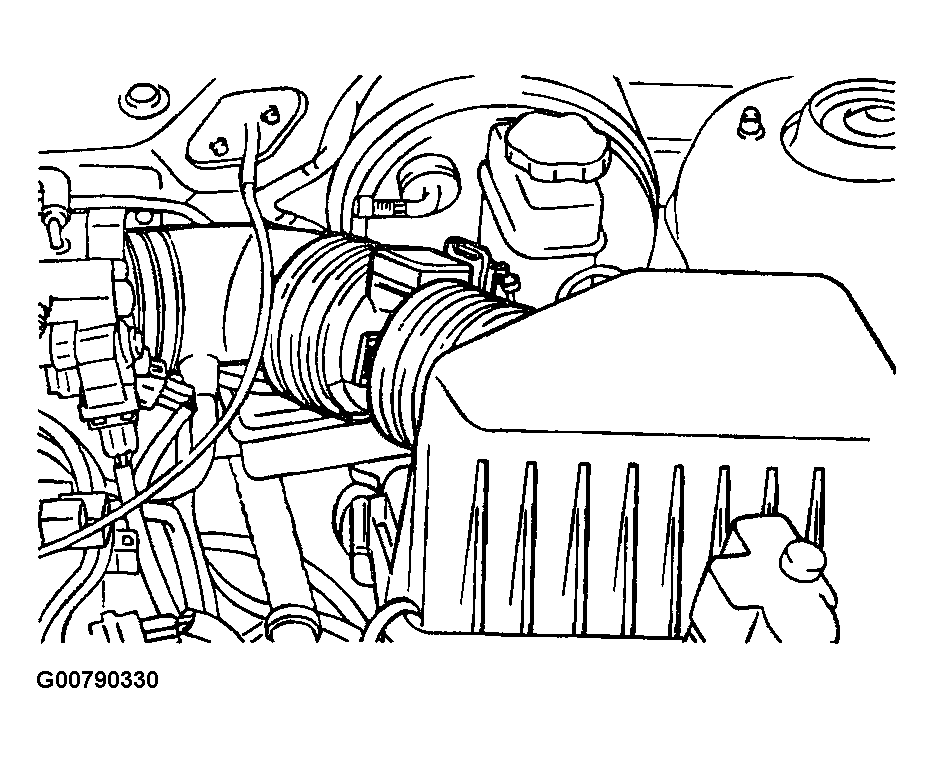

- Disconnect the air flow sensor connector.

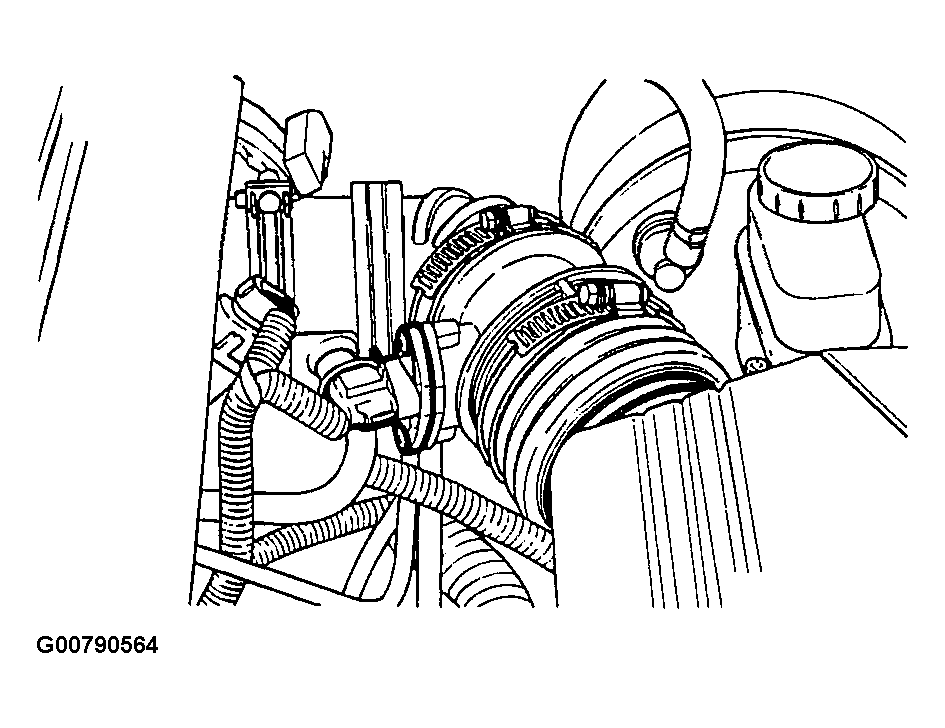

- Remove the air intake hose and air duct connected to the air cleaner.
- Remove the three bolts attaching the air cleaner mounting brackets.
- Detach the air cleaner.
- Remove the air flow sensor from the air intake hose.
CAUTION:
Do not pull on the air flow sensor wires.
