Air Cleaner (ACL): Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Check the air intake hose, air cleaner cover for damage.
  2. Check the air duct for damage.

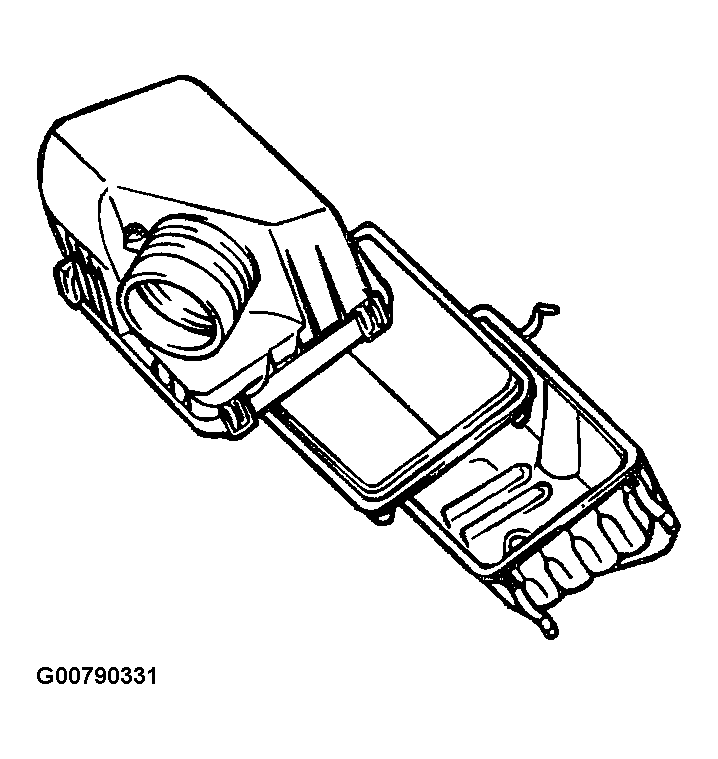

    Fig 1: Identifying Air Cleaner Cover Assembly
    G00790331Courtesy of HYUNDAI MOTOR CO.
  3. Check the air cleaner element for restriction, contamination or damage.

    If the element is slightly restricted, remove dust and debris by blowing compressed air from the inside of the element. Replace the element if it cannot be cleaned.

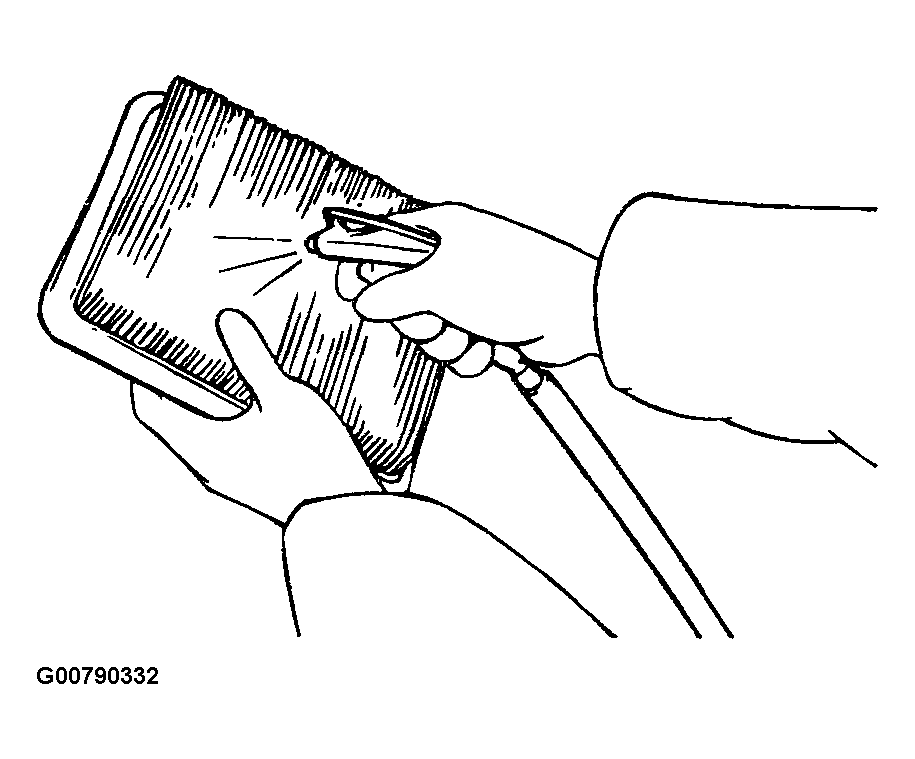

    Fig 2: Cleaning Air Filter
    G00790332Courtesy of HYUNDAI MOTOR CO.
