Adjusting Drive Belt & Tensioner

WARNING: This page is about a different variant/trim than selected.

Hang the belt on the pulley of the tensioner and install the tensioner.
(If the tensioner is already installed, loosen its mounting bolts to allow belt installation.)

Tightening torque

Tensioner assembly bolt : 20 ~ 27 Nm (200 ~ 270 kg.cm, 14 ~ 20 lb.ft)

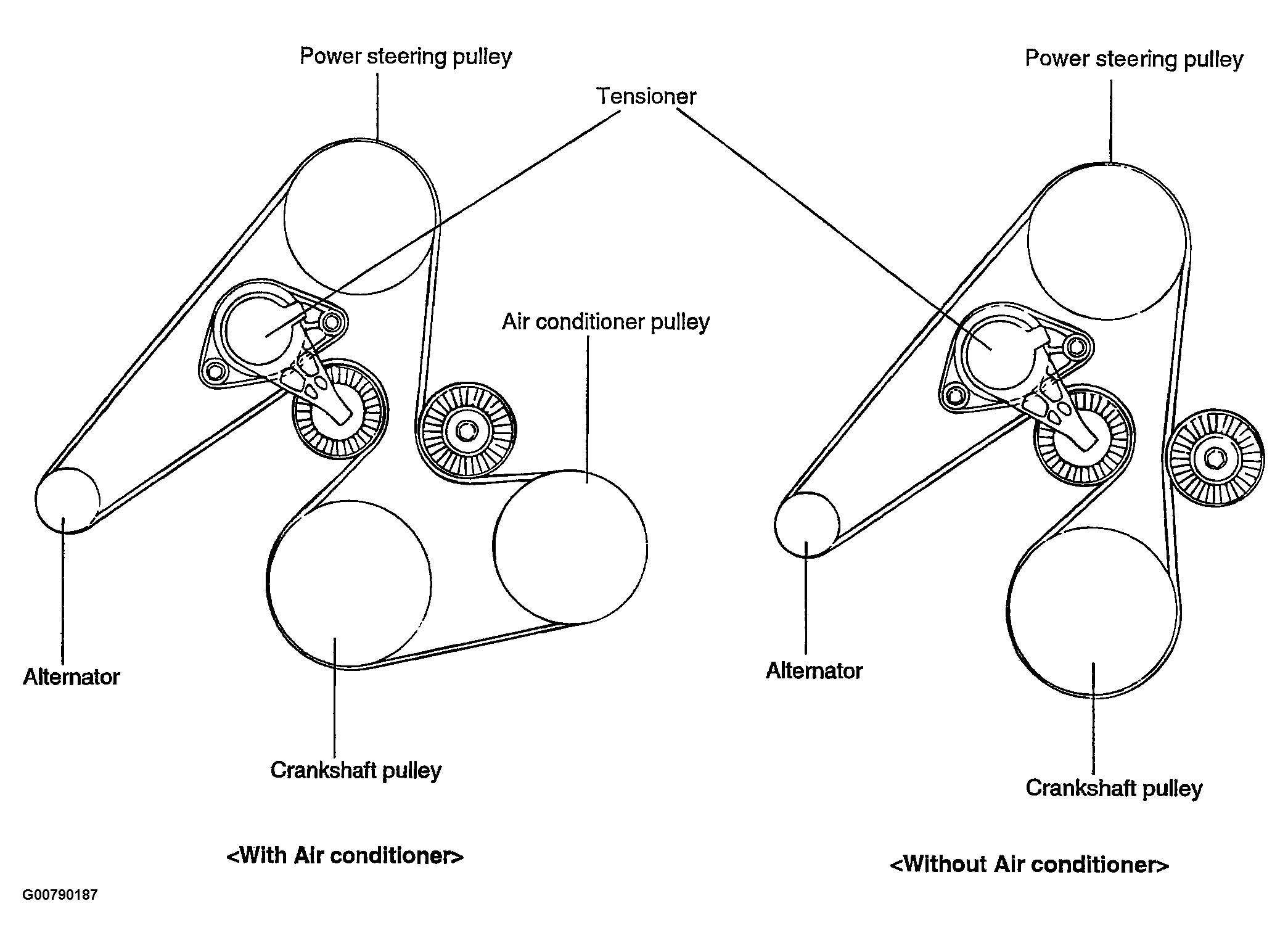

Fig 1: Identifying Belt & Pulleys
Courtesy of HYUNDAI MOTOR CO.
Install the belt in the following order.
Alternator, Power steering, Air conditioner pulley and then Crankshaft pulley.

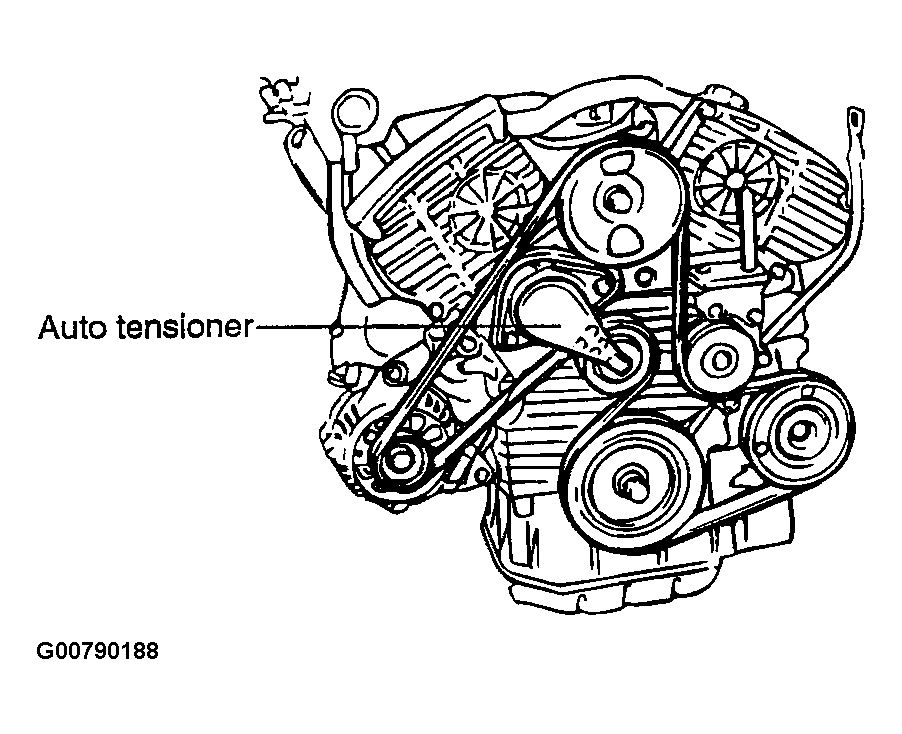

Fig 2: Identifying Auto Tensioner
Courtesy of HYUNDAI MOTOR CO.
Rotate the tensioner arm clockwise (about 14°) with a spanner (16 mm) and fit the belt to the idler pulley.

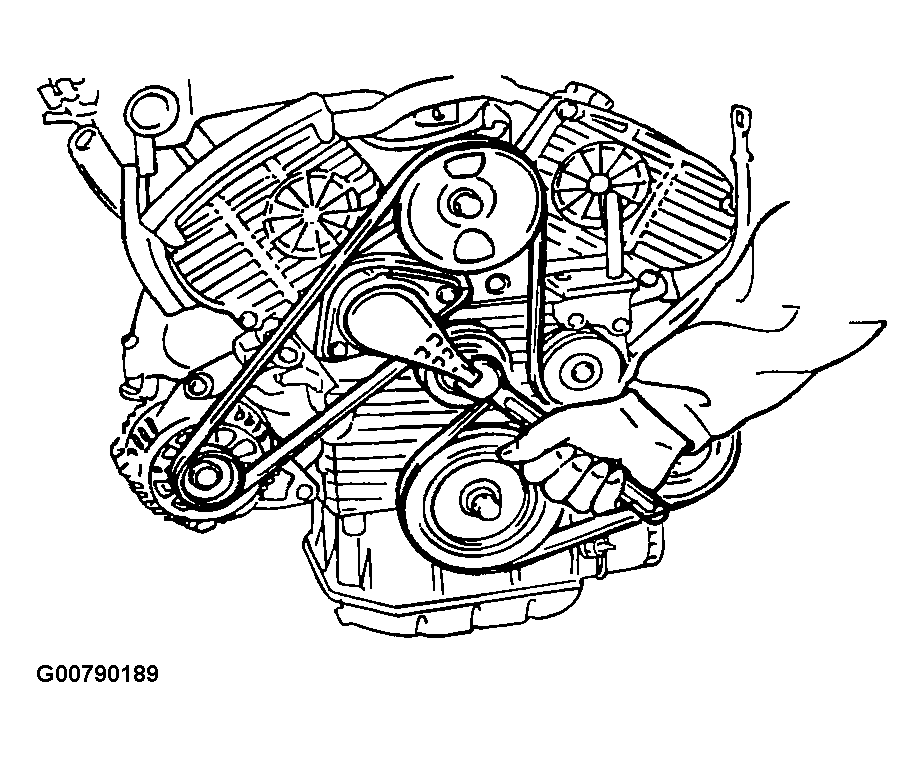

Fig 3: Rotating Tensioner
Courtesy of HYUNDAI MOTOR CO.
When installing the belt on the pulley, make sure it is centered on the pulley.

Fig 4: Locating Belt On Pulley
Courtesy of HYUNDAI MOTOR CO.
The tensioner mark should be between the "MIN" and "MAX" position. If not, replace the belt.

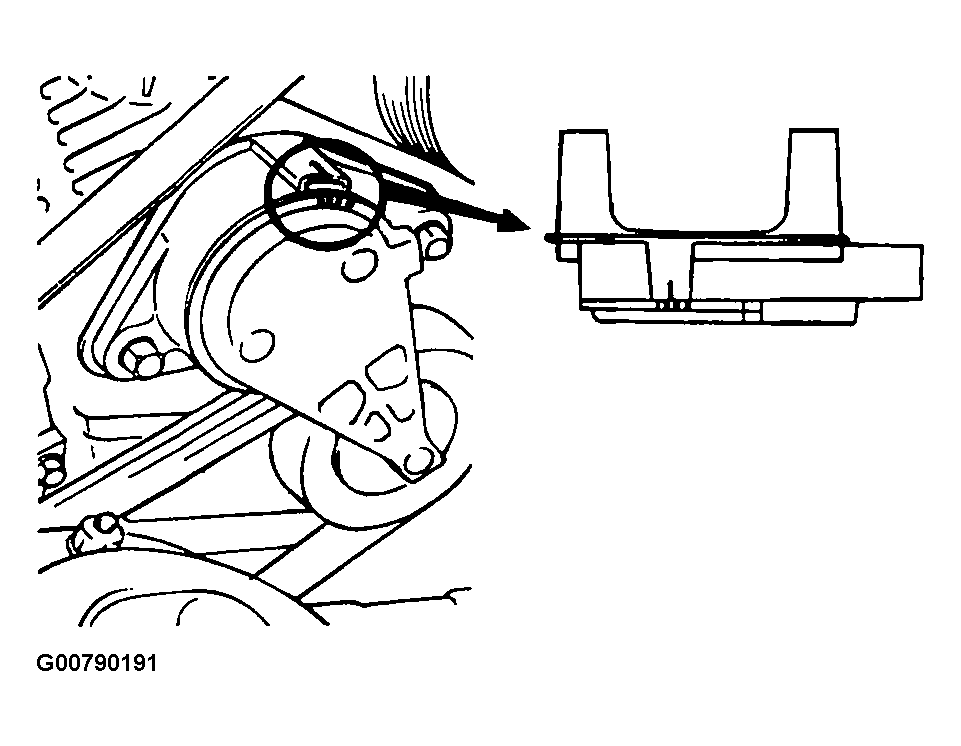

Fig 5: Identifying Min-Max On Tensioner
Courtesy of HYUNDAI MOTOR CO.
