Front Roll Stopper

WARNING: This page is about a different variant/trim than selected.

Remove the front roll stopper bracket from the sub-frame.

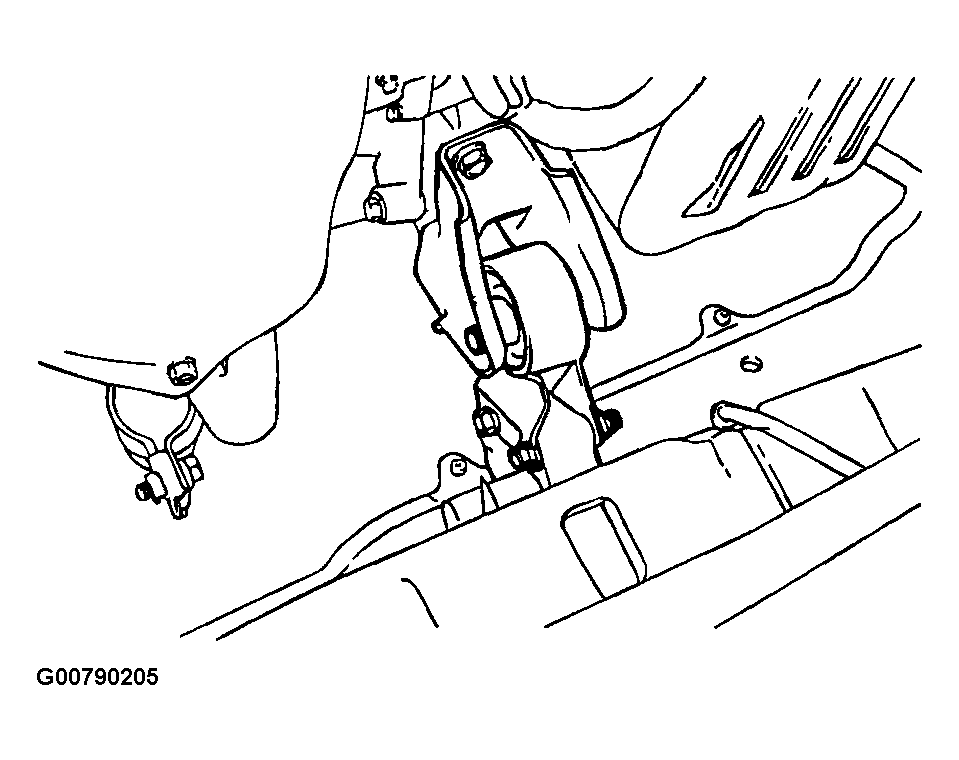

Fig 1: Identifying Front Roller Stopper Bracket
G00790205Courtesy of HYUNDAI MOTOR CO.
