Engine Mounting

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine mounting insulator bolts.
  2. Remove the engine mounting bracket from the engine.

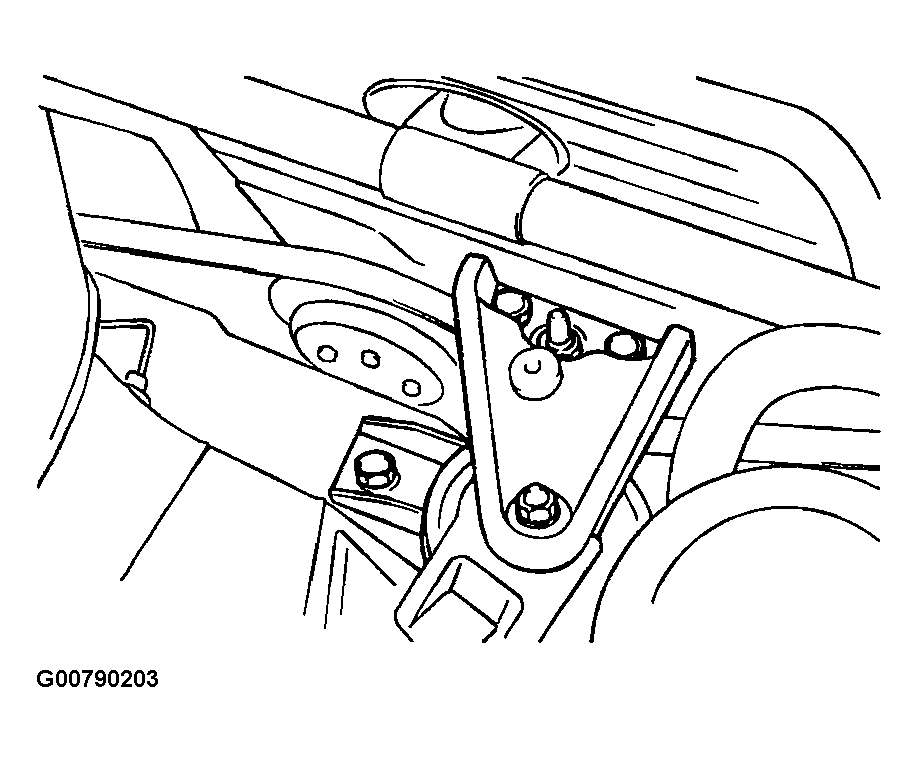

    Fig 1: Identifying Engine Mounting Bracket
    G00790203Courtesy of HYUNDAI MOTOR CO.
