Cylinder Head: Inspection: Notes
WARNING: This page is about a different variant/trim than selected.
- Remove scale, sealing compound and carbon deposits. After cleaning oil passages, apply compressed air to make certain that the passages are not clogged.
- Visually check the cylinder head for cracks, damage or water leakage.

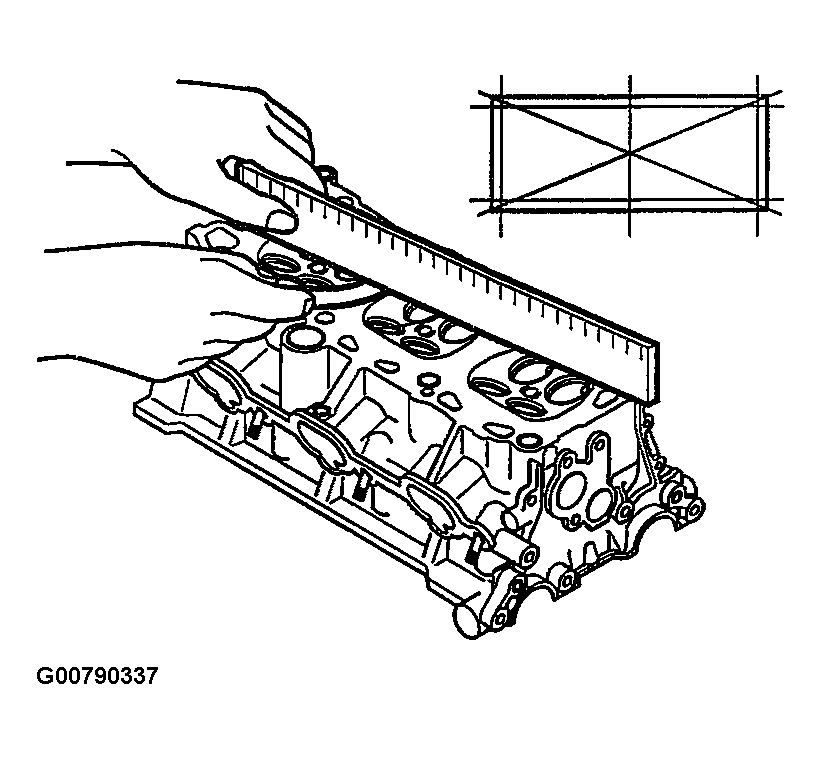

- Check the cylinder head surface for flatness with a straight edge and feeler gauge as shown in the illustration.
Cylinder head flatness
Standard dimensions : Max. 0.03 mm (0.0059 in.)
Service limit : 0.05 mm (0.0020 in.)
