Section 3 (2.7L V6 Engine)
>>
Cylinder Head Assembly
>>
Cylinder Head
>>
Components
Cylinder Head: Components
WARNING:
This page is about a different variant/trim than selected.

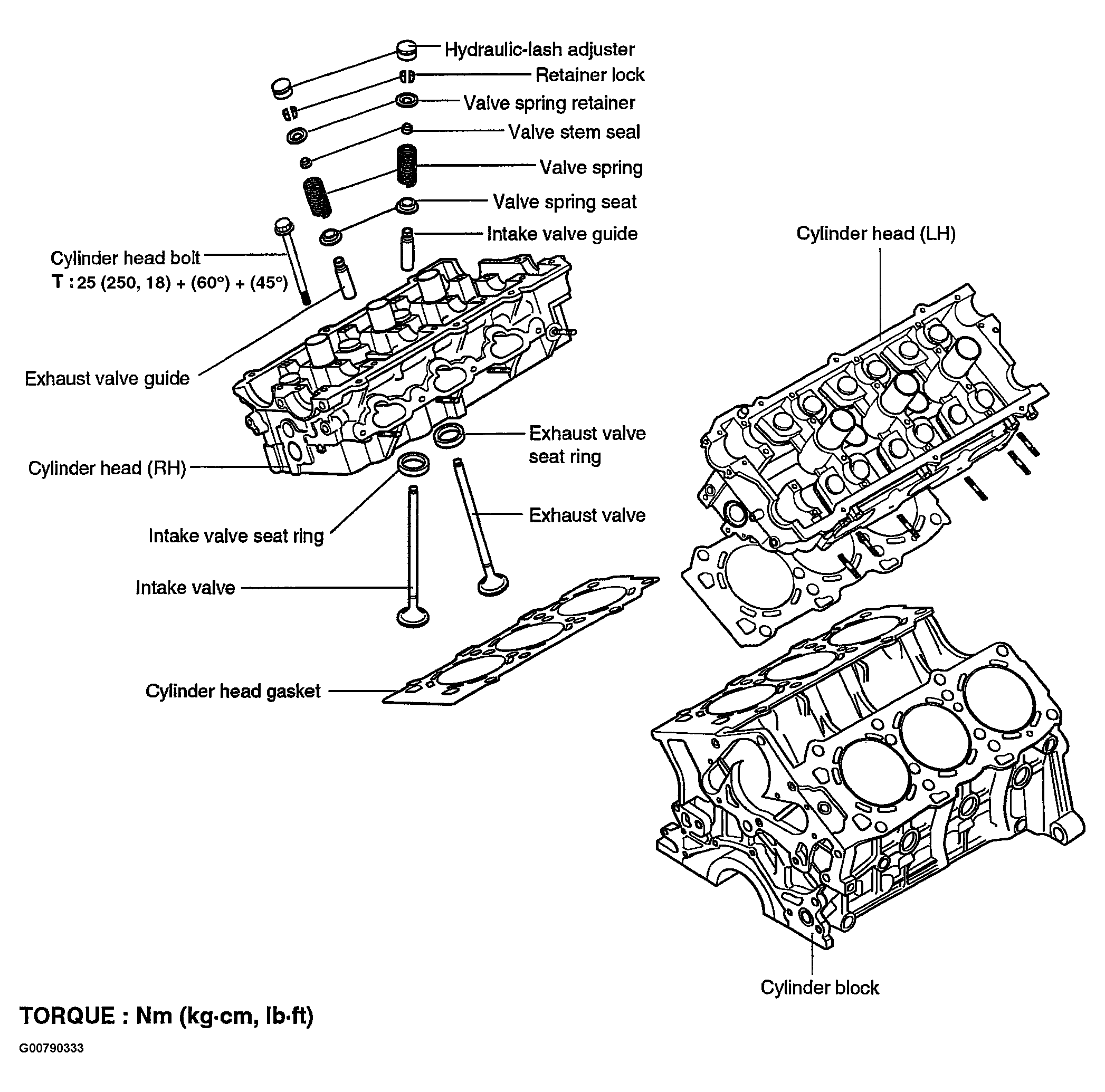

Fig 1: Cylinder Head Components
Courtesy of HYUNDAI MOTOR CO.
