Section 2 (3.5L V6 Engine)
>>
Main Moving System
>>
Crankshaft
>>
Components
Main Moving System: Crankshaft: Components
WARNING:
This page is about a different variant/trim than selected.

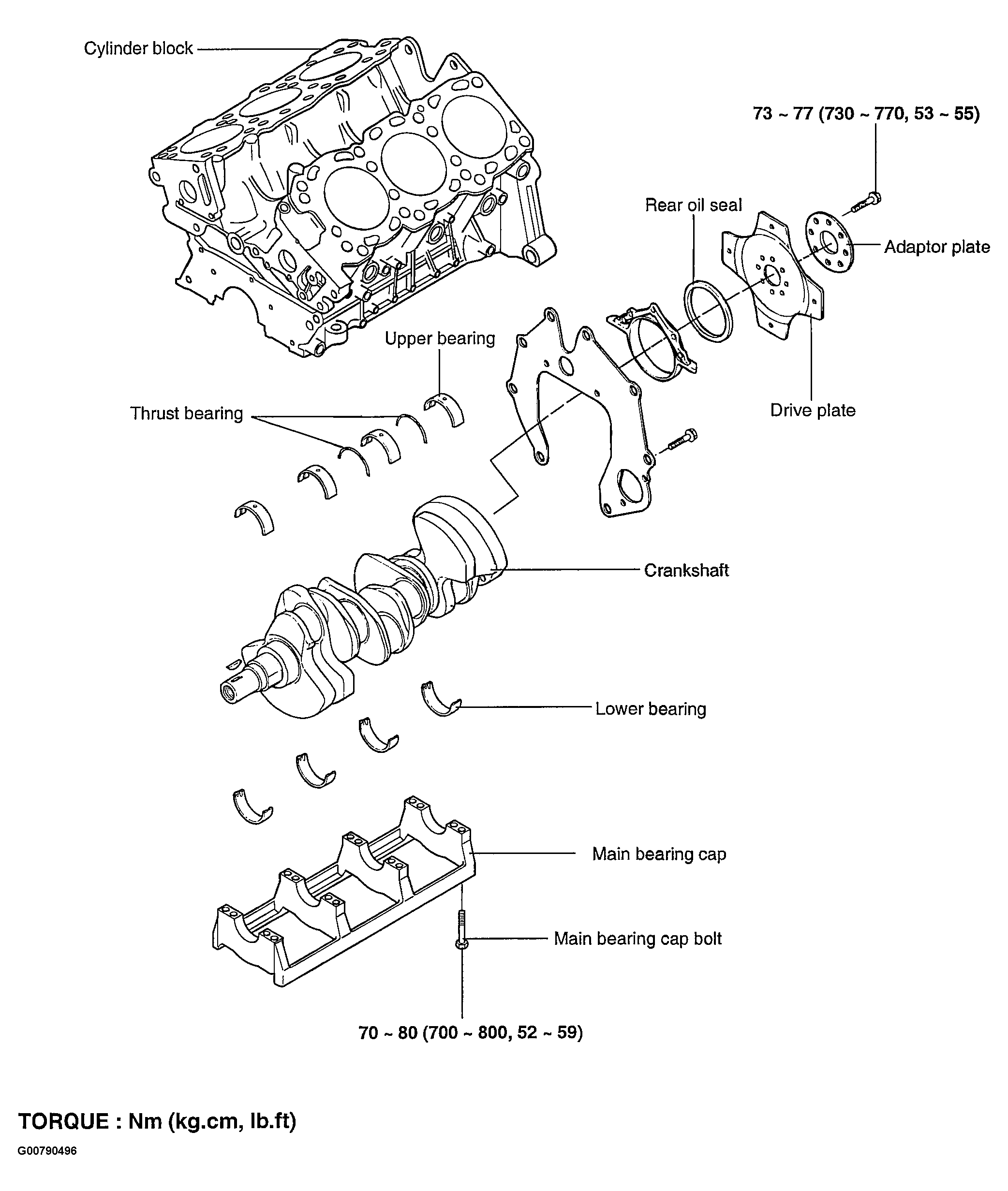

Fig 1: Crankshaft Components
Courtesy of HYUNDAI MOTOR CO.
