Autolash Adjuster

WARNING: This page is about a different variant/trim than selected.
  1. Check autolash adjusters for free play by inserting a small wire through the air bleed hole in the rocker arm and push the autolash adjuster check ball down very lightly.
  2. While lightly holding the check ball down move the rocker arm up and down to check for free play. If there is no play replace the autolash adjuster.

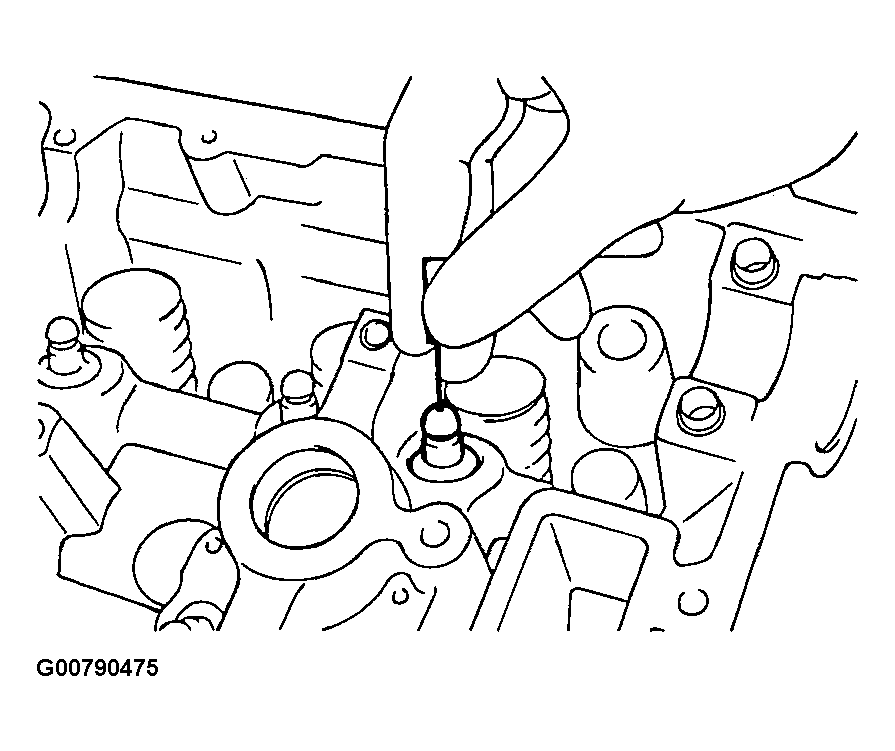

    Fig 1: Checking Autolash Adjusters For Free Play
    G00790475Courtesy of HYUNDAI MOTOR CO.
