Main Moving System: Camshaft: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine cover and intake manifold. For additional information, refer to INTAKE MANIFOLD .

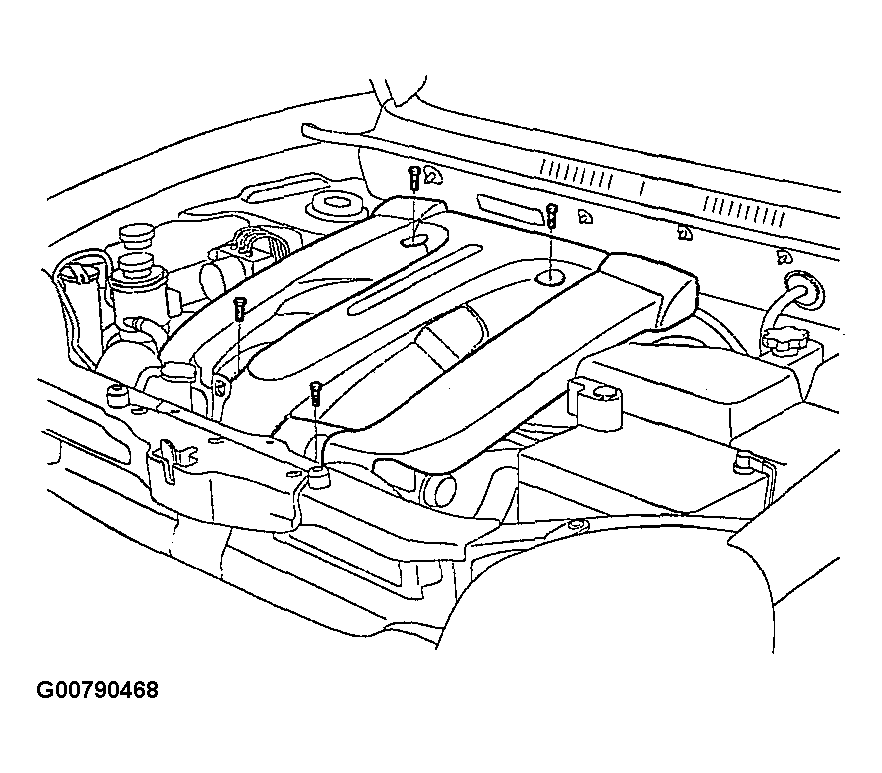

    Fig 1: Identifying Engine Cover & Bolts
    G00790468Courtesy of HYUNDAI MOTOR CO.
  2. Disconnect the breather hose and the engine harness.

    For additional information, refer to ENGINE AND TRANSAXLE ASSEMBLY .

  3. Remove the timing belt.

    For additional information, refer to TIMING BELT .

  4. Remove the spark plug cables.
  5. Loosen the cylinder head cover bolts and then remove it.

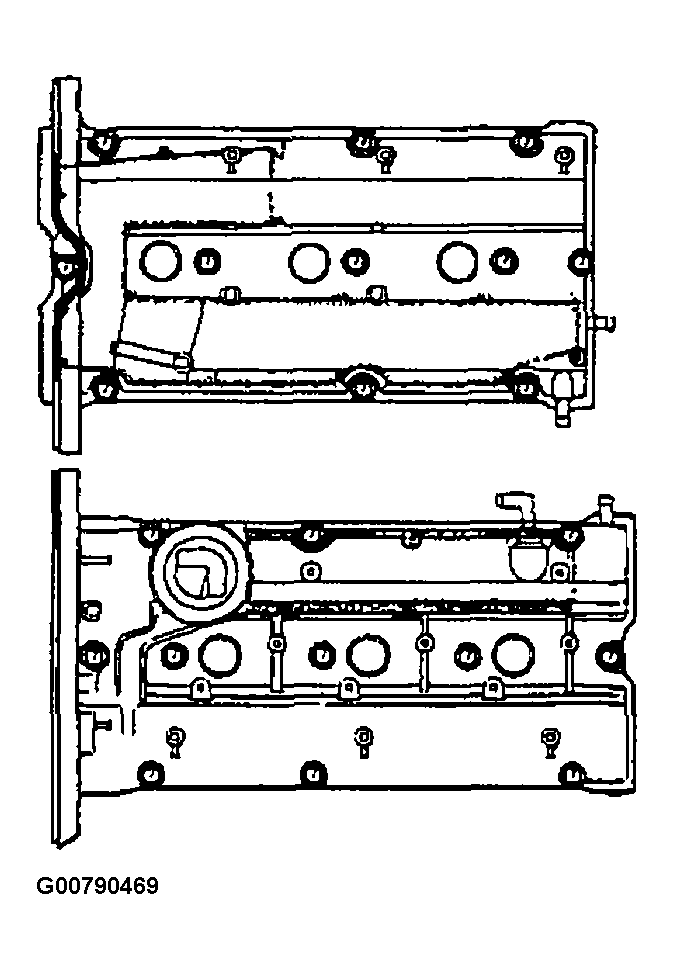

    Fig 2: Identifying Cylinder Head Covers
    G00790469Courtesy of HYUNDAI MOTOR CO.
  6. Remove the camshaft sprockets.
  7. Remove the camshaft bearing caps.

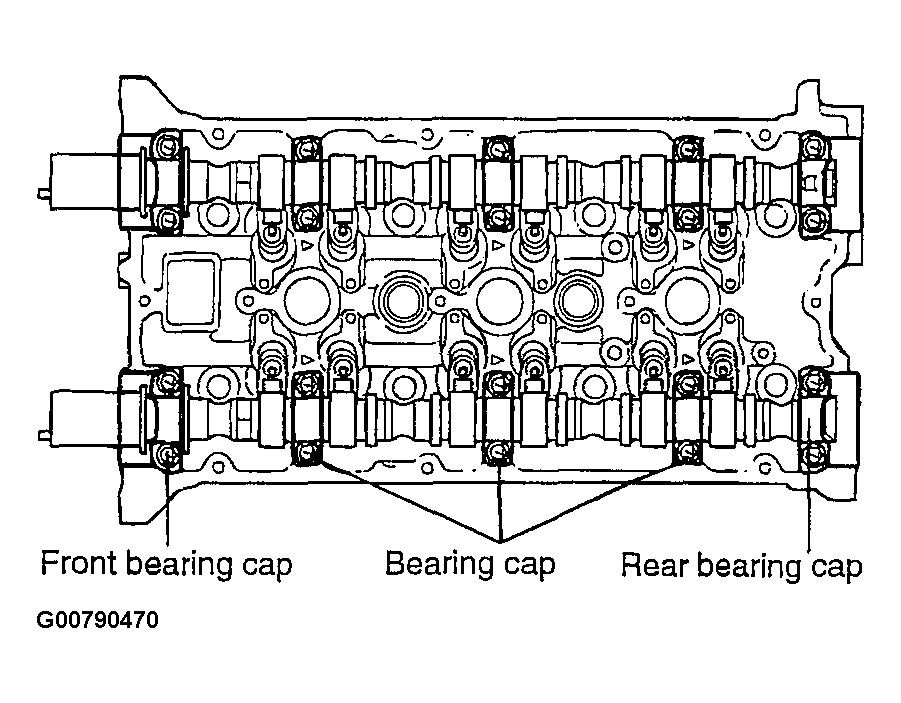

    Fig 3: Identifying Camshaft Bearing Caps
    G00790470Courtesy of HYUNDAI MOTOR CO.
  8. Remove the camshafts.

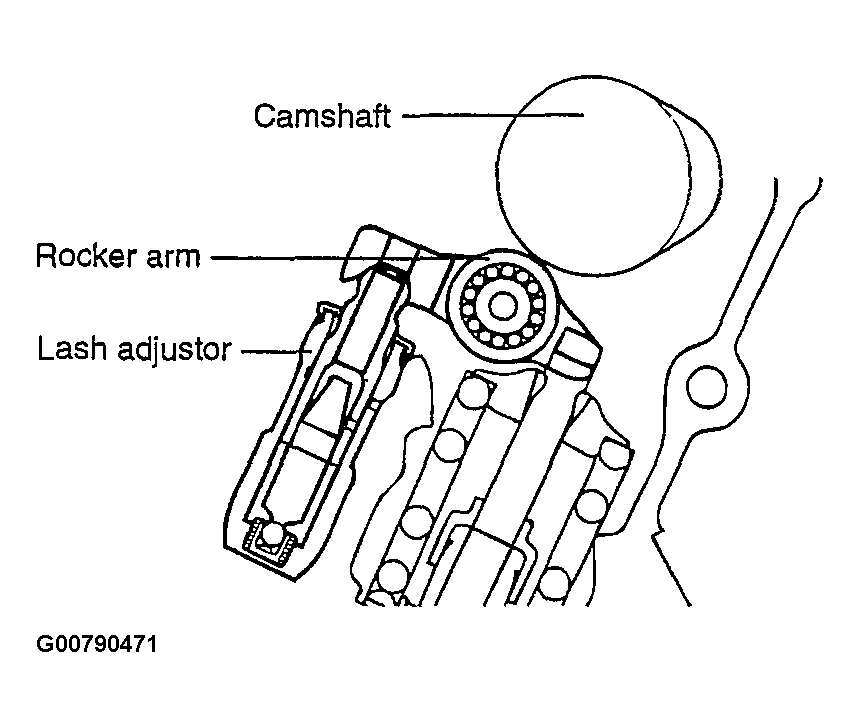

    Fig 4: Identifying Camshaft, Rocker Arm & Lash Adjustor
    G00790471Courtesy of HYUNDAI MOTOR CO.
