Rear Muffler

WARNING: This page is about a different variant/trim than selected.

CAUTION: Before removing or inspecting the exhaust system, ensure that the exhaust system is cool.

Disconnect the rear muffler from the front muffler.

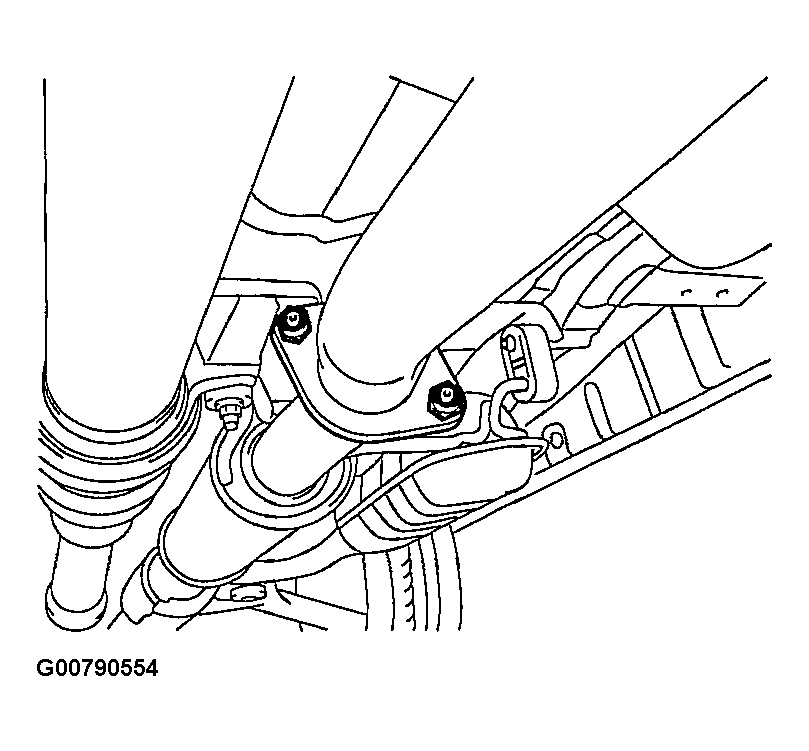

Fig 1: Identifying Front Muffler To Rear Muffler Connection
Courtesy of HYUNDAI MOTOR CO.
Remove the rubber hangers and the rear muffler.

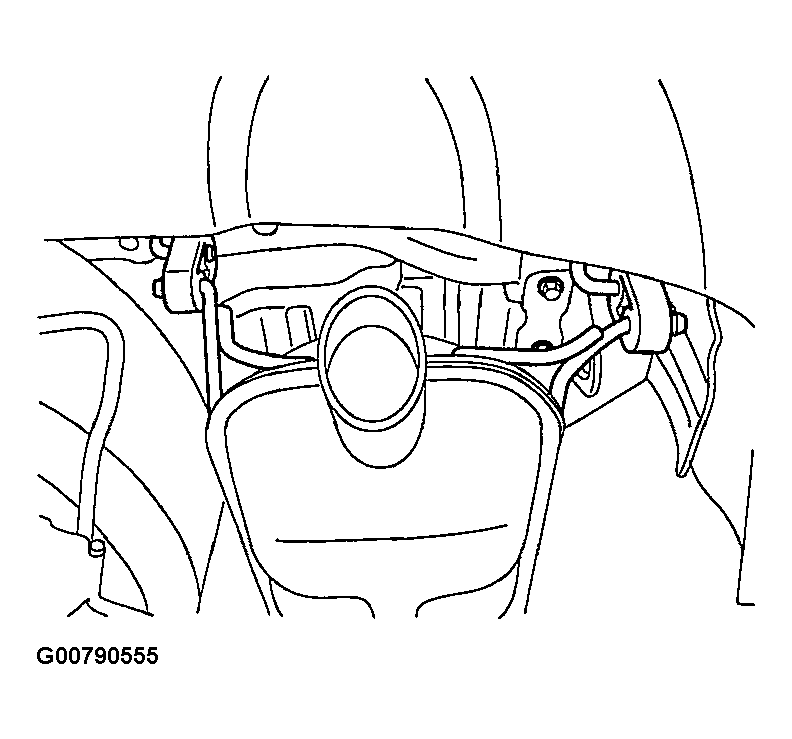

Fig 2: Removing Rear Muffler From Hangers
Courtesy of HYUNDAI MOTOR CO.

Fig 3: Removing Rear Muffler From Hanger
Courtesy of HYUNDAI MOTOR CO.
