Front Muffler (Including Catalytic Converter)

WARNING: This page is about a different variant/trim than selected.

Disconnect the L/H near oxygen sensor.

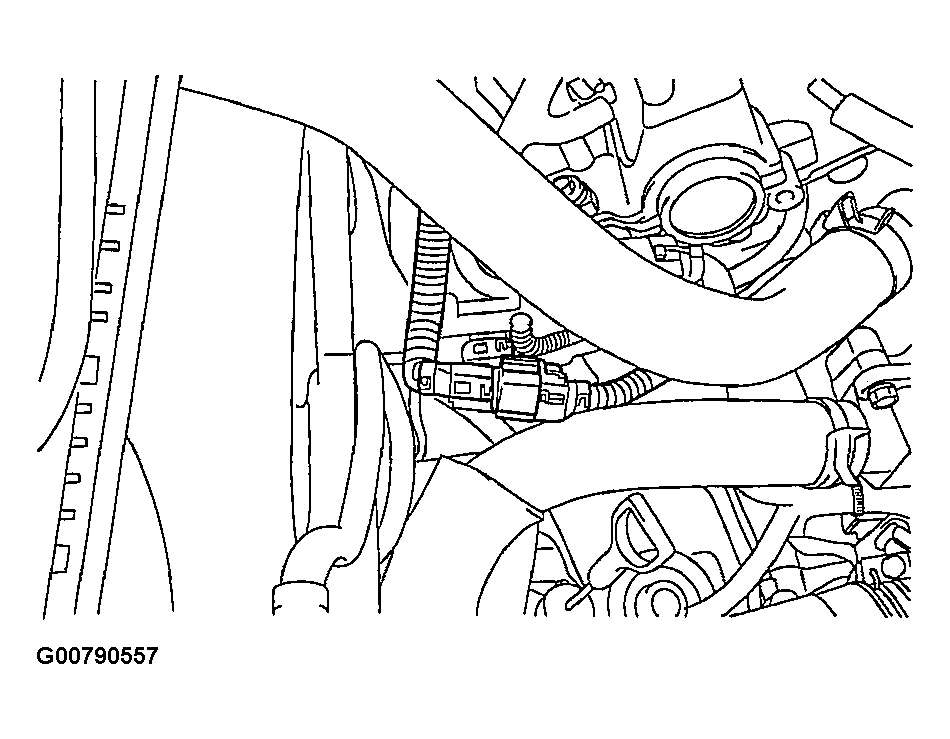

Fig 1: Identifying Left Side Oxygen Sensor
Courtesy of HYUNDAI MOTOR CO.
Remove the under cover.

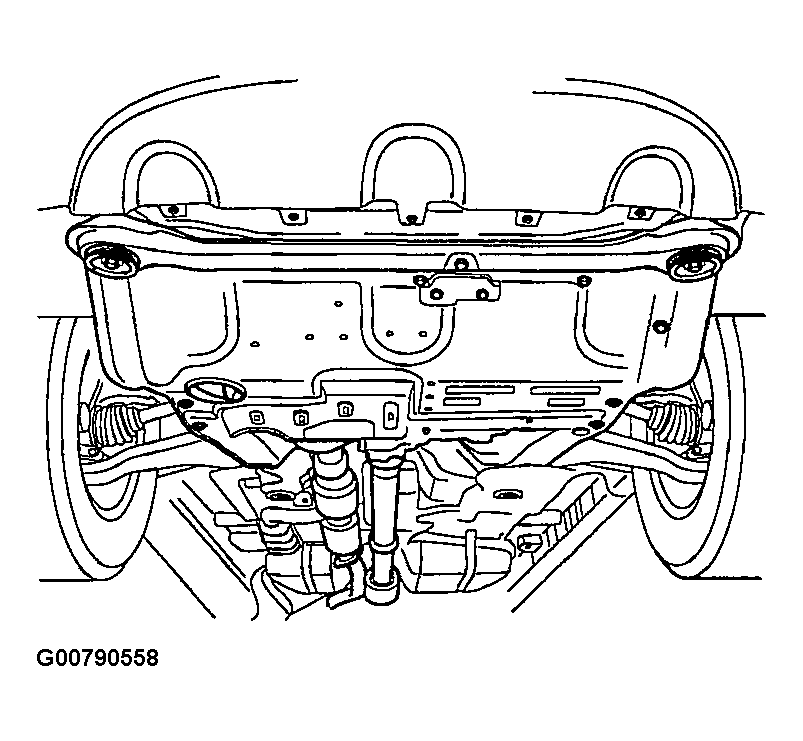

Fig 2: View Under Vehicle
Courtesy of HYUNDAI MOTOR CO.
Remove the front muffler bolts and nuts.

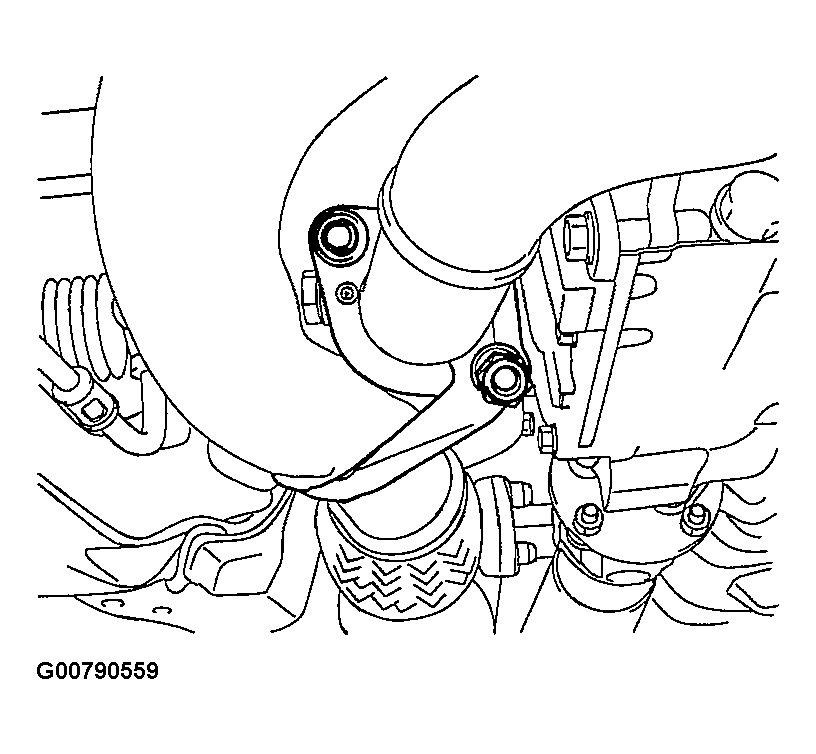

Fig 3: Identifying Front Muffler Bolts (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

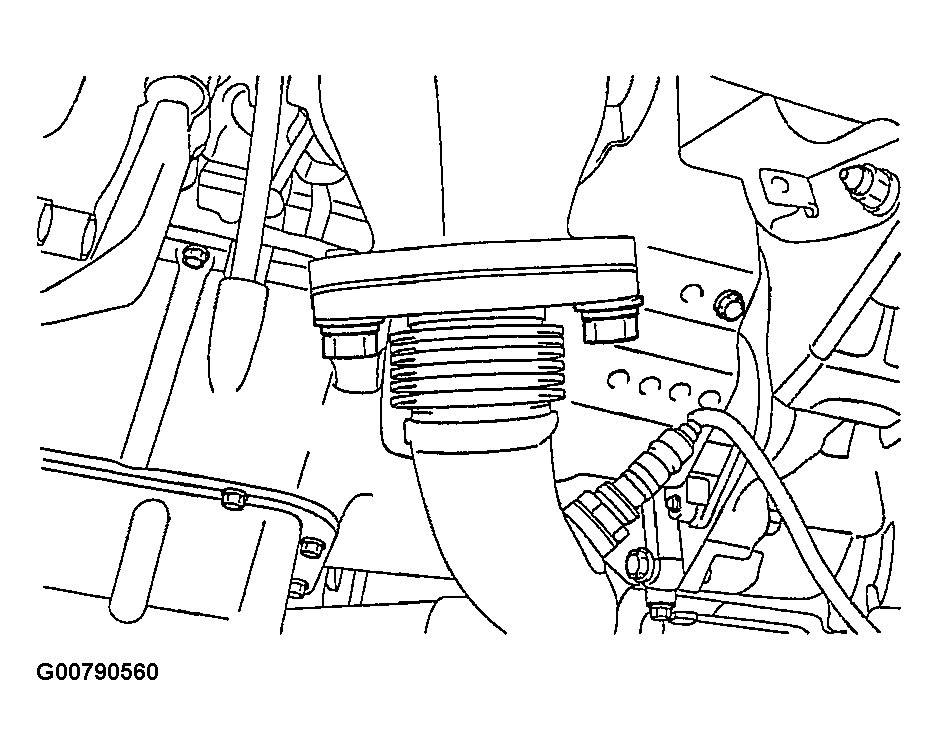

Fig 4: Identifying Front Muffler Bolts (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Disconnect from the hanger.

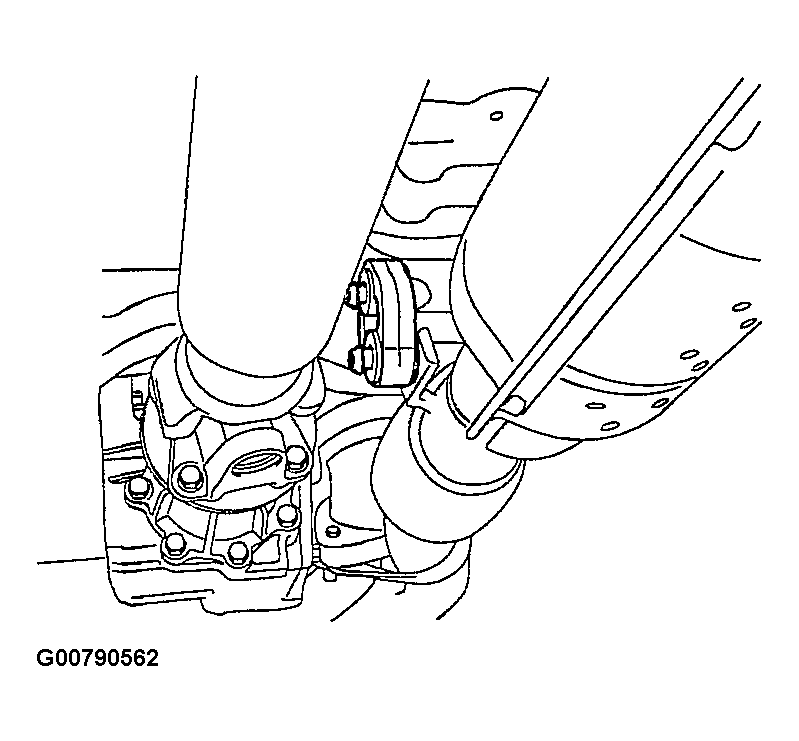

Fig 5: Disconnecting Exhaust From Hanger
Courtesy of HYUNDAI MOTOR CO.

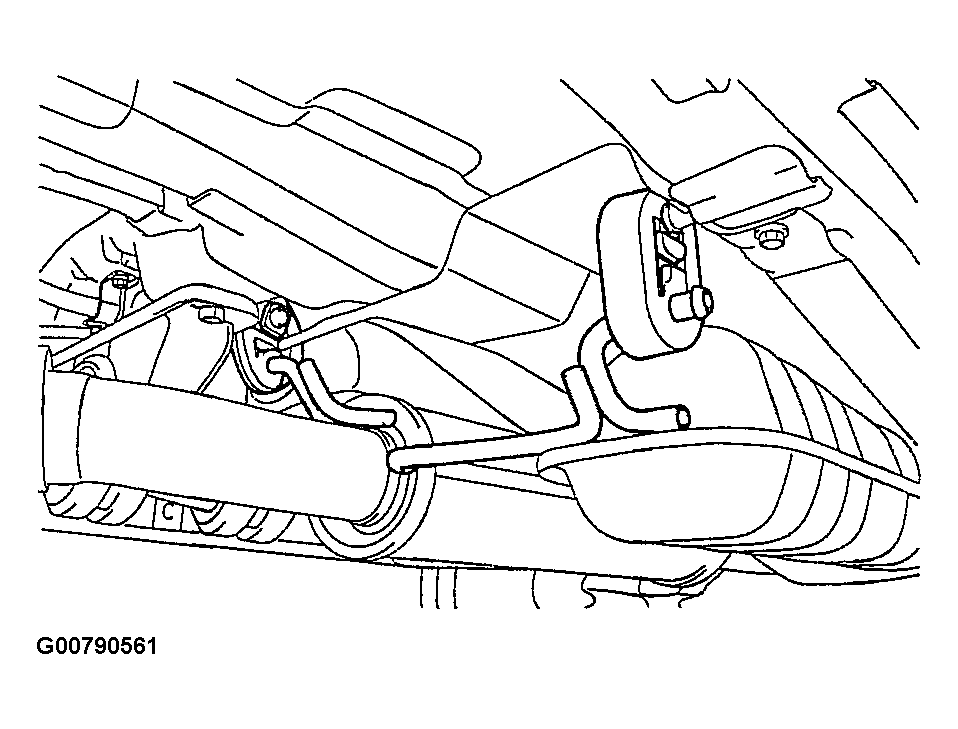

Fig 6: Disconnecting Exhaust From Hanger
Courtesy of HYUNDAI MOTOR CO.
