Intake Manifold: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Surge tank may also be referred to as air intake surge tank or upper intake manifold.

Remove the air intake hose connected to the throttle body.

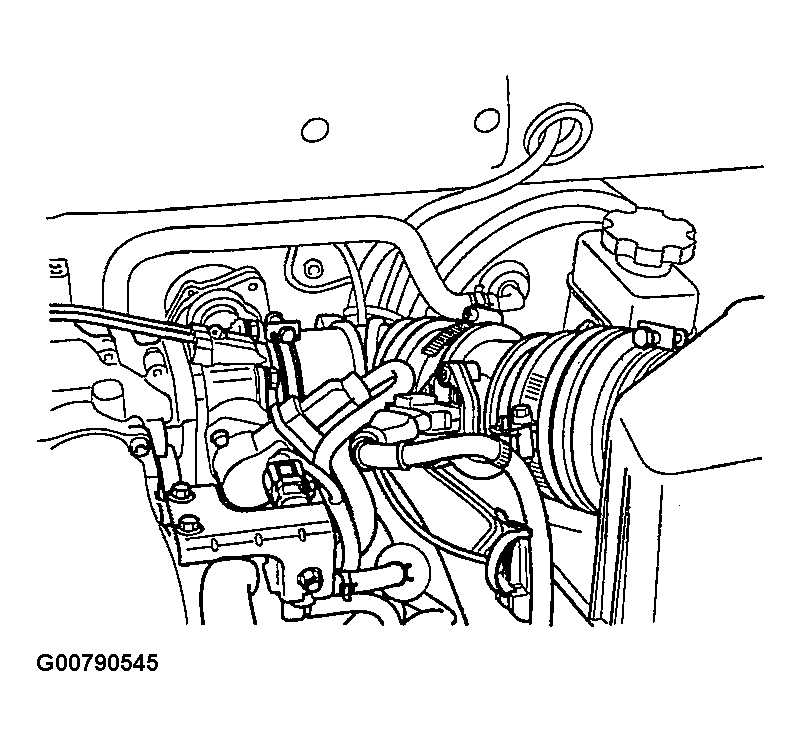

Fig 1: Identifying Air Intake Hose
Courtesy of HYUNDAI MOTOR CO.
Remove the engine coolant hose and throttle body.
Remove the P.C.V. hose and brake booster vacuum hoses.

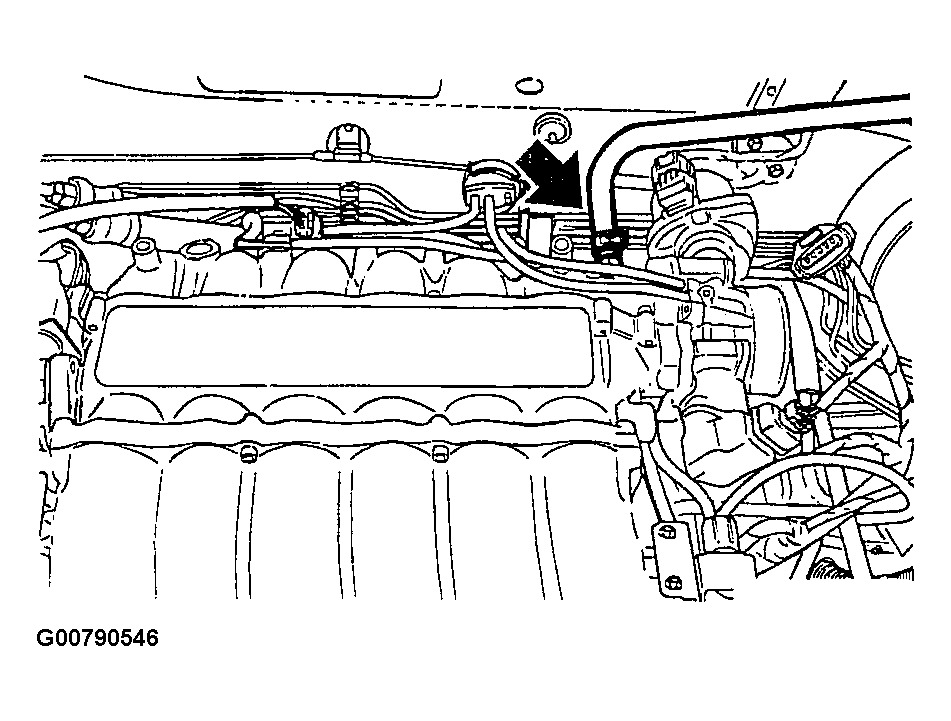

Fig 2: Identifying Brake Booster Hose
Courtesy of HYUNDAI MOTOR CO.
Disconnect the vacuum hose connections.
Remove the surge tank stay.

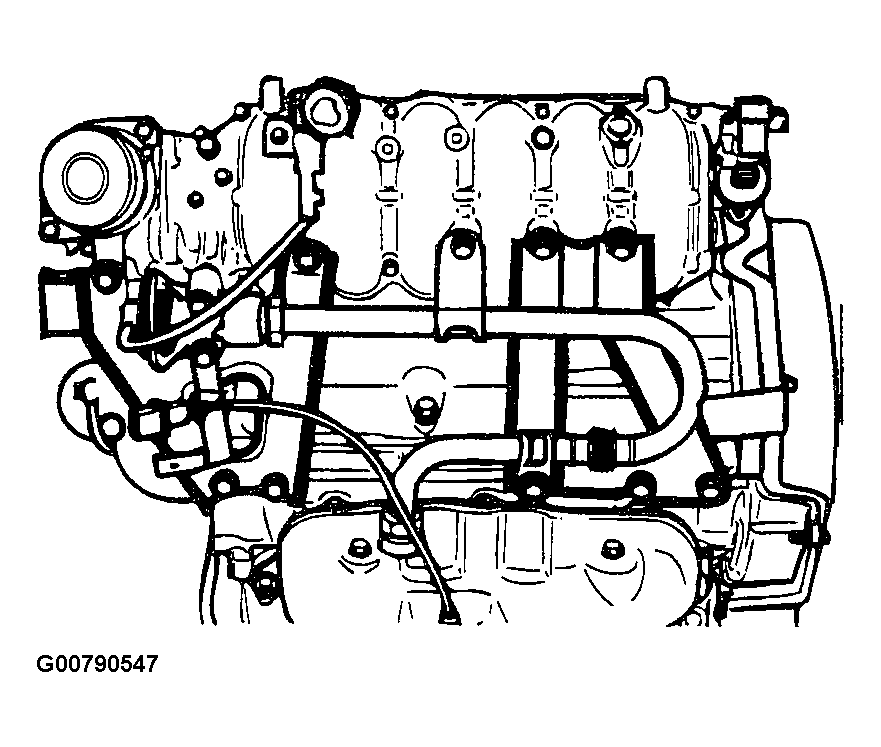

Fig 3: View Of Surge Tank
Courtesy of HYUNDAI MOTOR CO.
Remove the surge tank.
Remove the surge tank and gasket.

Fig 4: View Of Surge Tank Gasket
Courtesy of HYUNDAI MOTOR CO.
Disconnect the fuel injector harness connector.

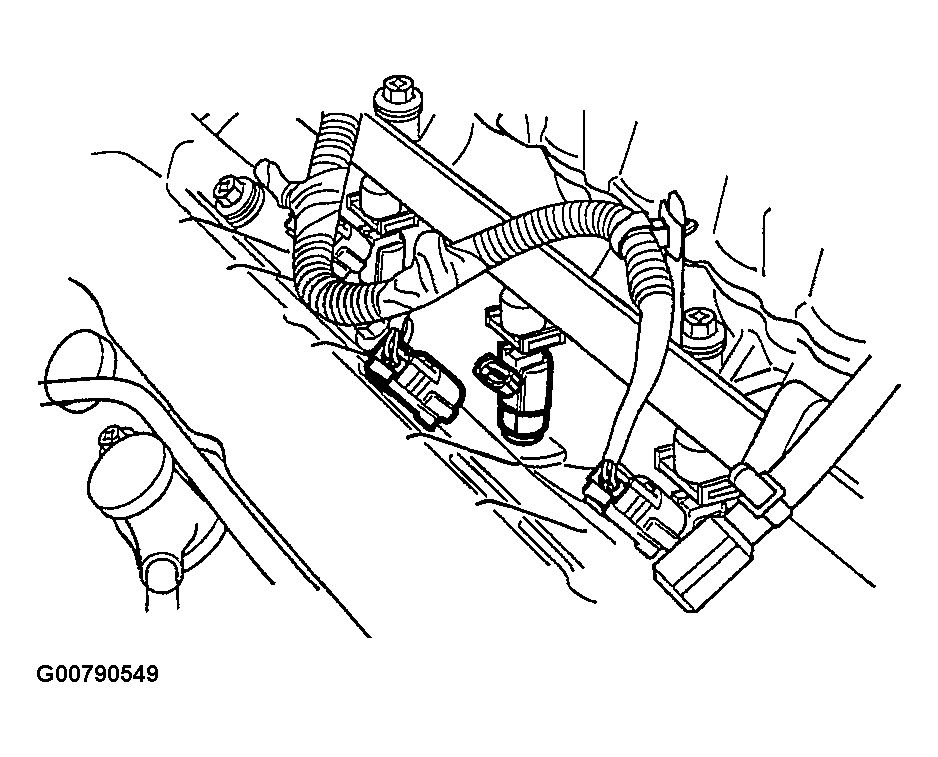

Fig 5: View Of Fuel Injector Harness
Courtesy of HYUNDAI MOTOR CO.
Remove the delivery pipe with the fuel injector and the pressure regulator.
NOTE: When the delivery pipe is removed, be careful not to drop an injector.

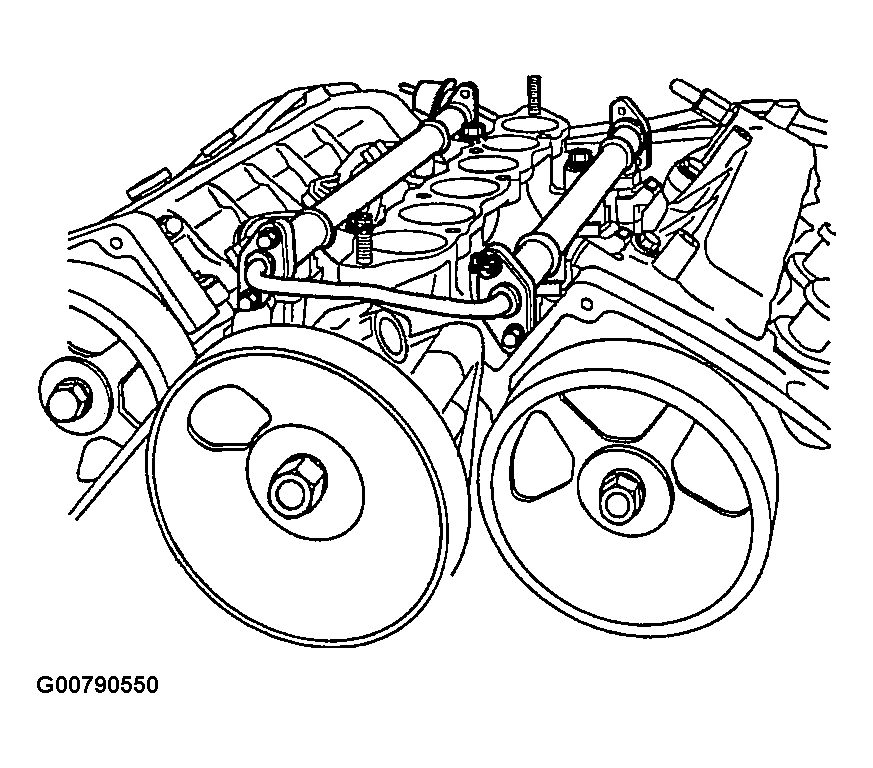

Fig 6: View Of Fuel Injector Delivery Pipe
Courtesy of HYUNDAI MOTOR CO.
Disconnect the wiring harness of the coolant sensor assembly.
