Exhaust Manifold And Catalytic Converter: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the front muffler.

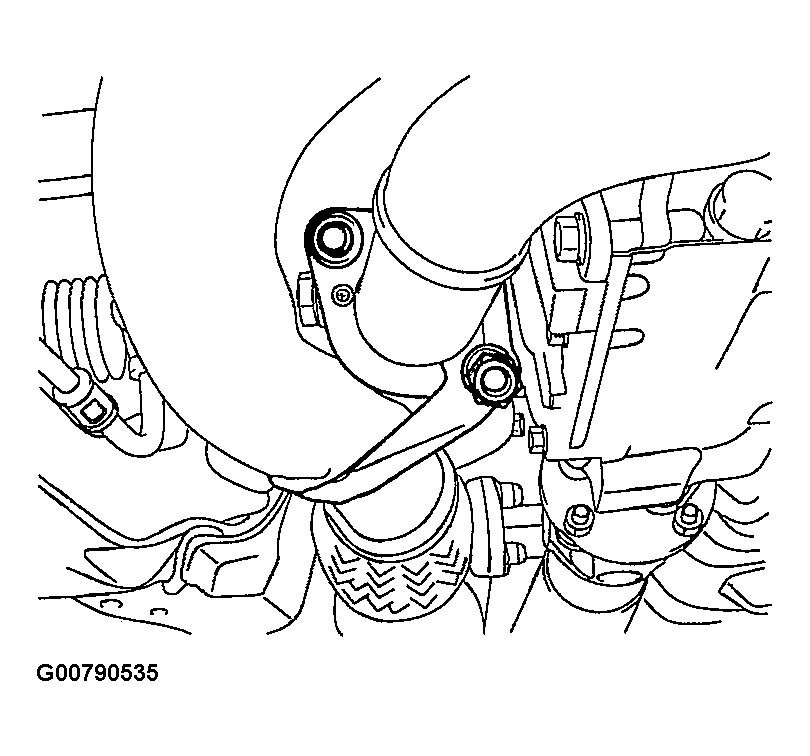

Fig 1: Identifying Front Muffler Bolts (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

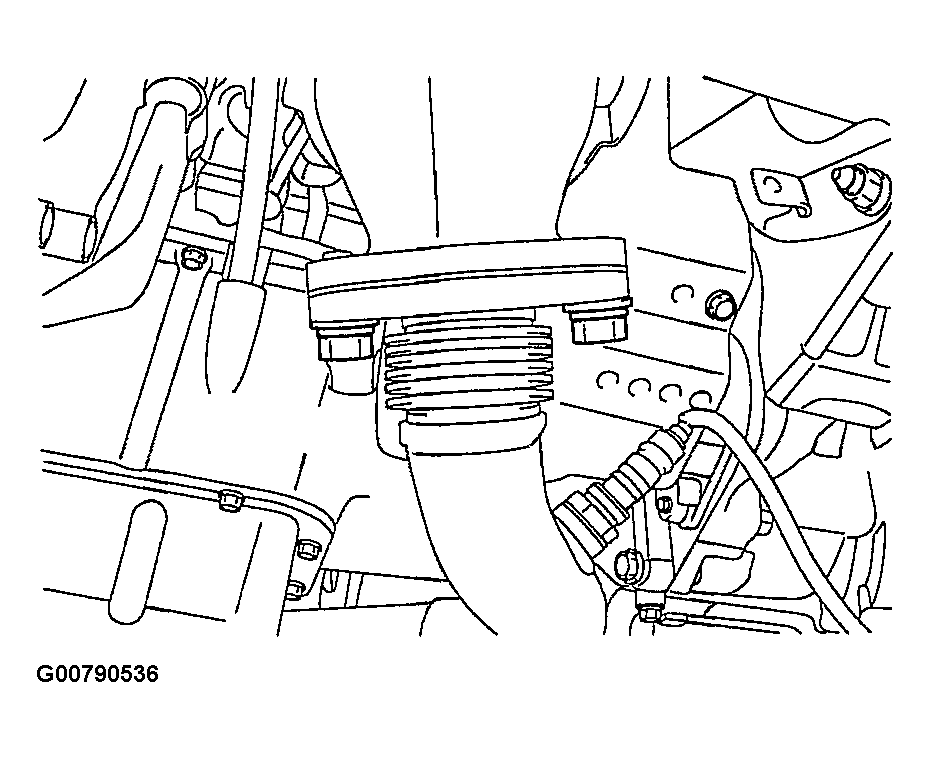

Fig 2: Identifying Front Muffler Bolts (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Remove the heat protector.

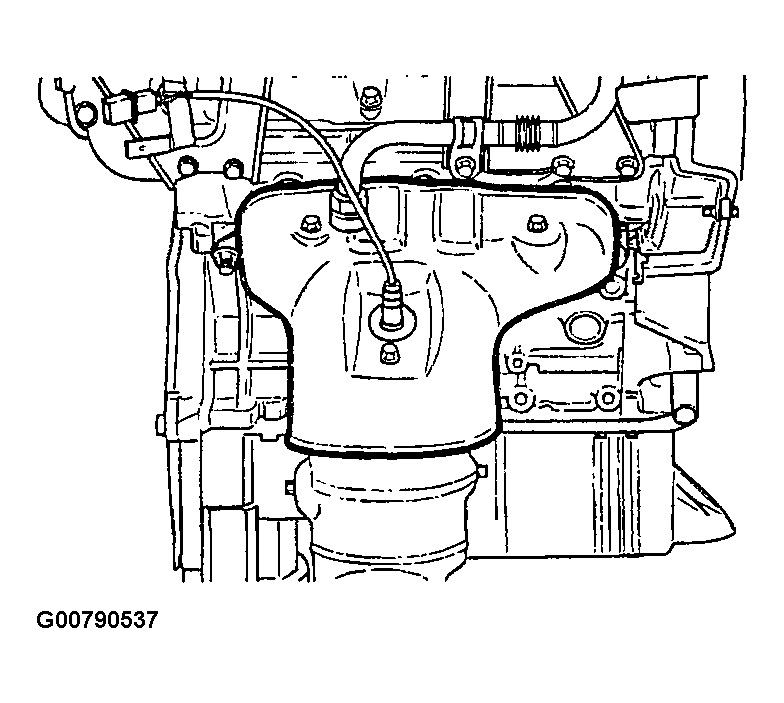

Fig 3: Identifying Heat Protector
Courtesy of HYUNDAI MOTOR CO.
Remove the exhaust manifold.

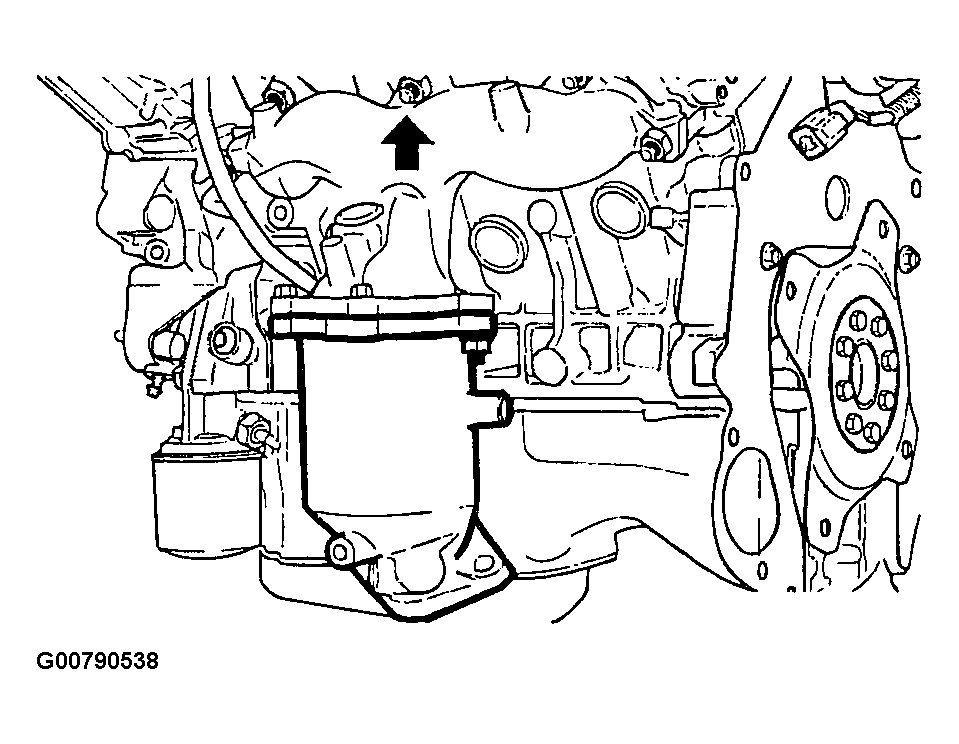

Fig 4: Identifying Exhaust Manifold
Courtesy of HYUNDAI MOTOR CO.
Remove the exhaust manifold gasket.
