Exhaust Manifold And Catalytic Converter: Installation

WARNING: This page is about a different variant/trim than selected.

Install the exhaust manifold with gasket.
Tightening torque

Exhaust manifold :

40 - 45 Nm (400 - 450 kg.cm, 29 - 33 lb.ft)

NOTE: Do not re - use an exhaust manifold gasket.

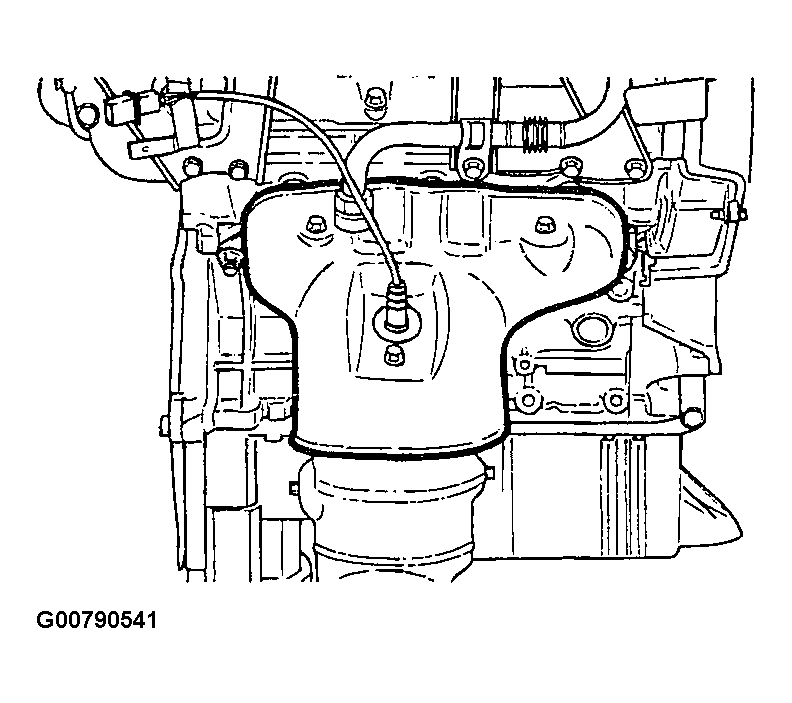

Fig 1: Installing Exhaust Manifold
Courtesy of HYUNDAI MOTOR CO.
Install the heat protector.

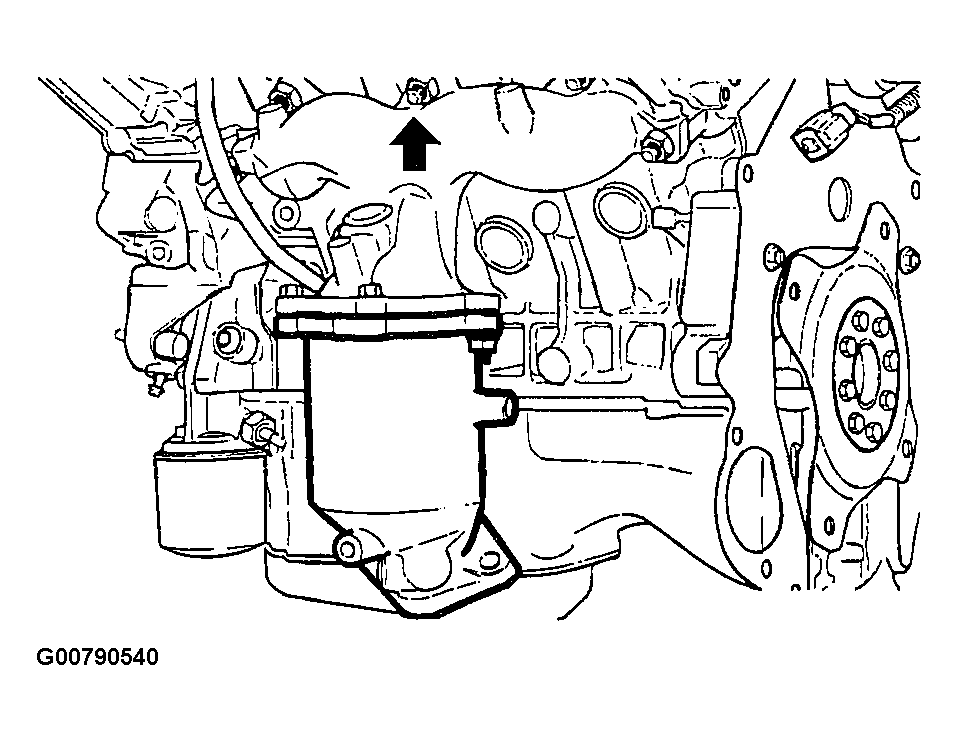

Fig 2: Identifying Heat Protector
Courtesy of HYUNDAI MOTOR CO.
Install the front muffler.

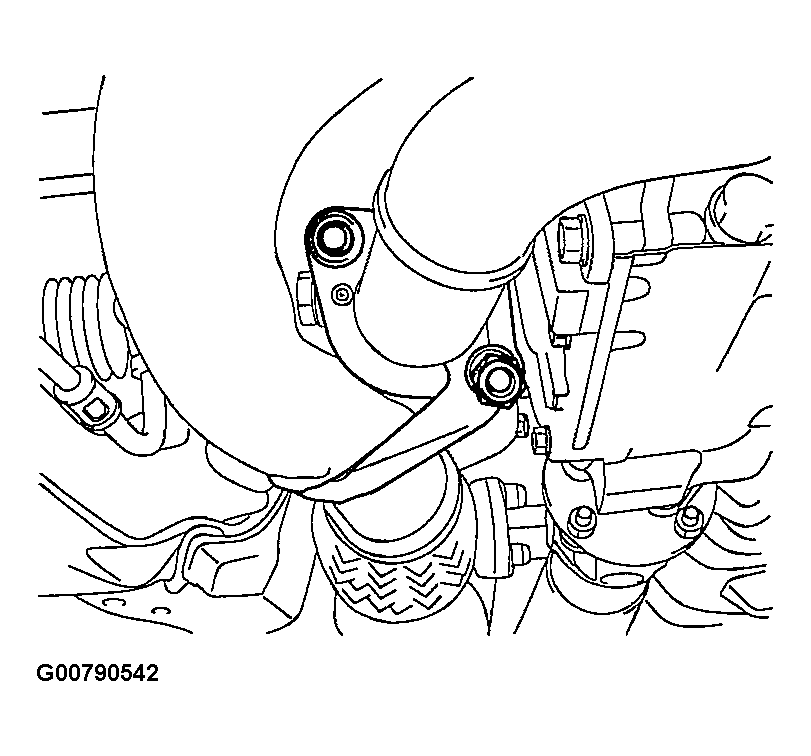

Fig 3: Identifying Front Muffler Bolts (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

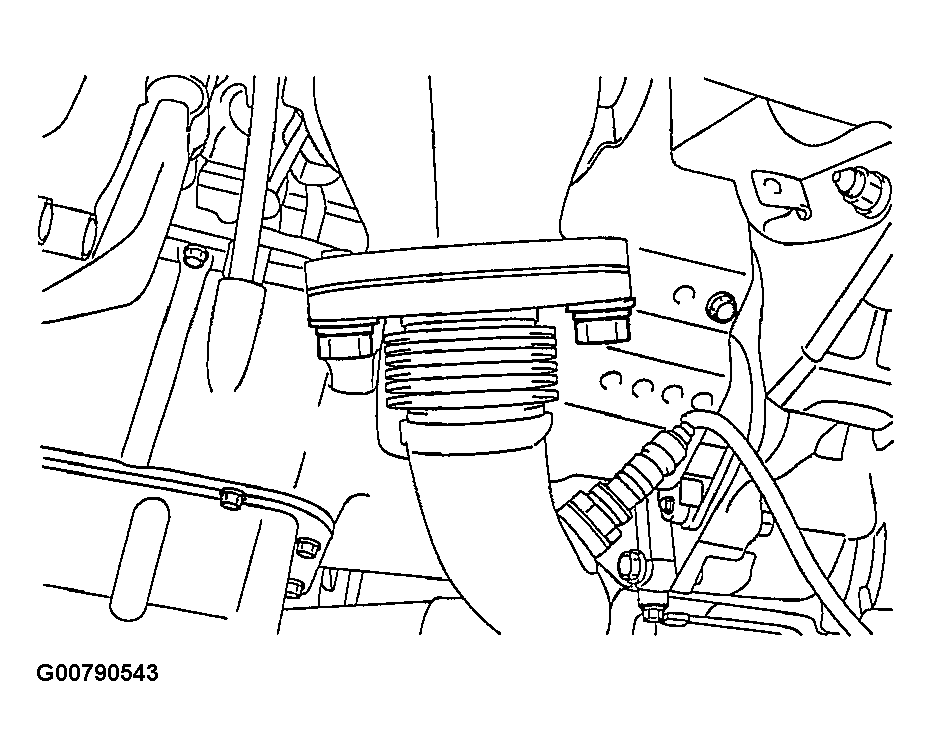

Fig 4: Identifying Front Muffler Bolts (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
