Exhaust Manifold And Catalytic Converter: Components

WARNING: This page is about a different variant/trim than selected.

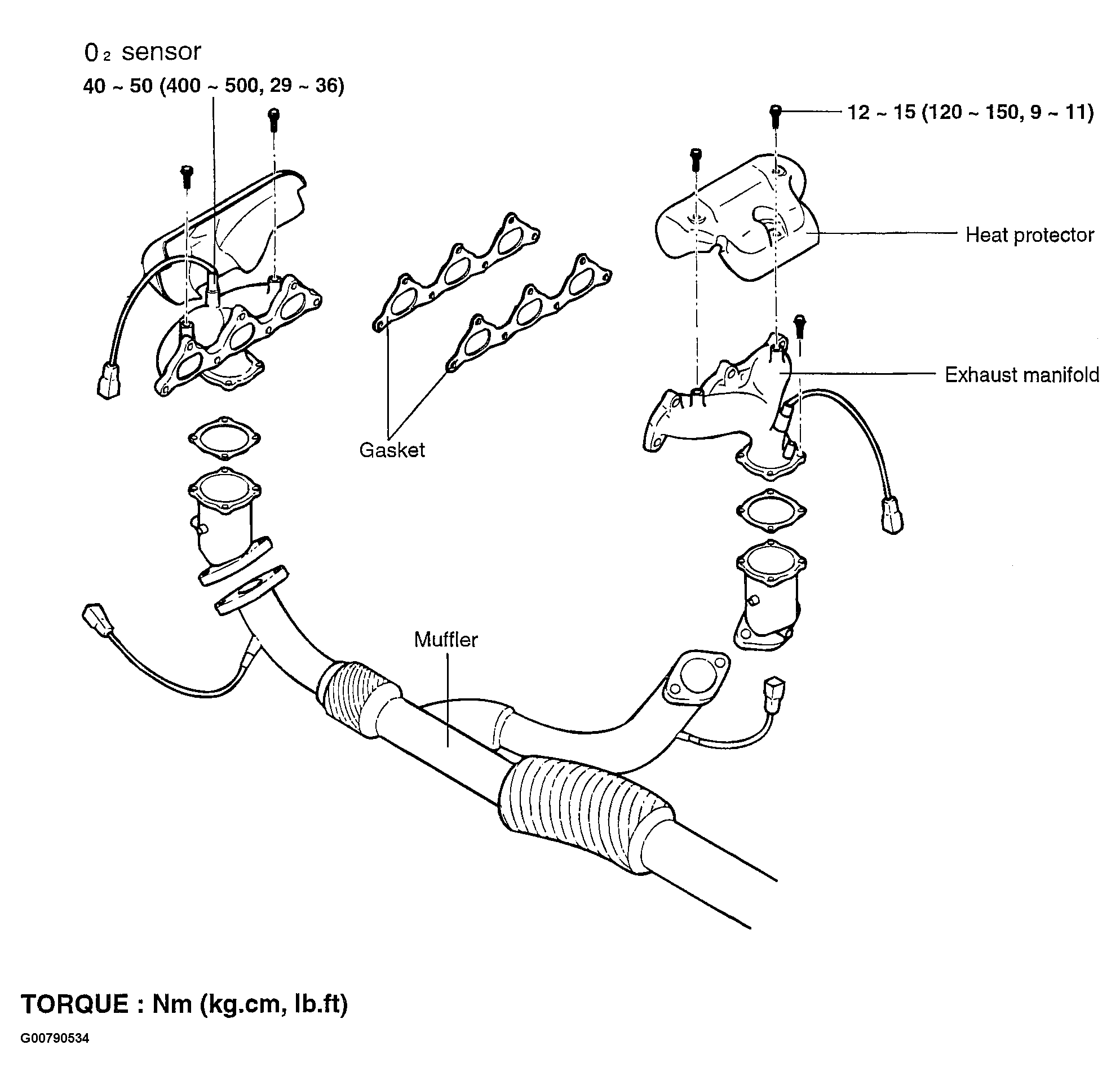

Fig 1: Exhaust Manifold And Catalytic Converter Components
G00790534Courtesy of HYUNDAI MOTOR CO.
