Tightening Cylinder Head Bolts

WARNING: This page is about a different variant/trim than selected.

First loosen slightly and then tighten to the specified torque.
Tightening torque

Cylinder head bolts cold [Engine temperature approximately 20°C (68°F)] :

105 ~ 115 Nm (1050 ~ 1150 kg.cm, 75 ~ 82 lb ft.)

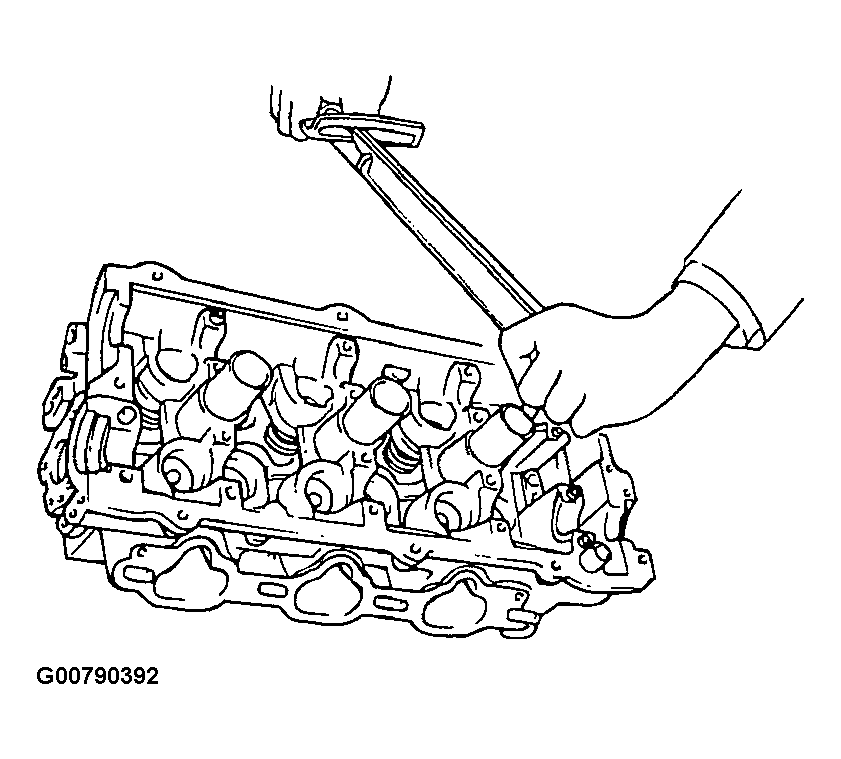

Fig 1: Tightening Cylinder Head Bolts
Courtesy of HYUNDAI MOTOR CO.
Be sure to follow the specific torque sequence as shown in the illustration.

NOTE: Run the engine to normal operating temperature and let it cool, then re-torque the bolts to specifications.

Fig 2: Cylinder Head Tightening Sequence

G00790393

Courtesy of HYUNDAI MOTOR CO.
