Adjusting Drive Belt And Tensioner

WARNING: This page is about a different variant/trim than selected.

Hang the belt on the pulley of the tensioner and install the tensioner.
(If the tensioner is already installed, loosen its mounting bolt to allow belt installation.)

Tightening torque

Tensioner assembly bolt :

45 ~ 50 Nm (450 ~ 550 kg.cm, 33 ~ 36 lb.ft)

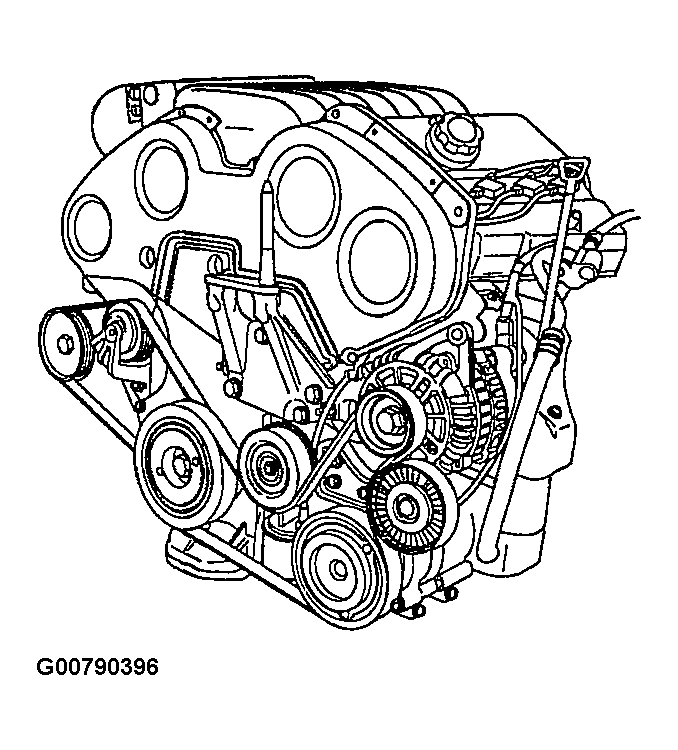

Fig 1: Identifying Belt & Pulleys
Courtesy of HYUNDAI MOTOR CO.
Install power steering belt.

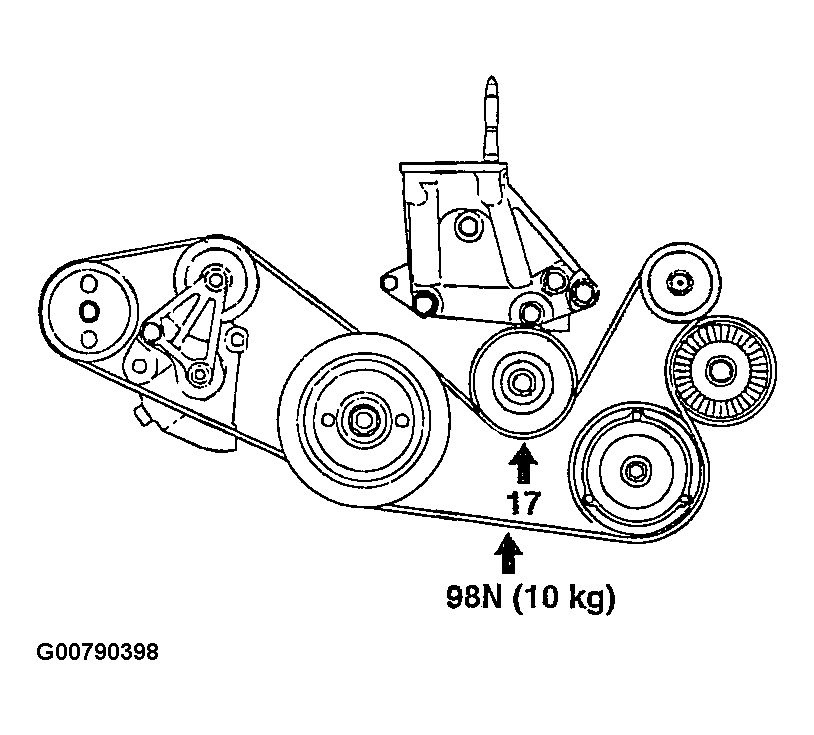

Fig 2: Identifying Power Steering Belt
Courtesy of HYUNDAI MOTOR CO.
Install drive belt.

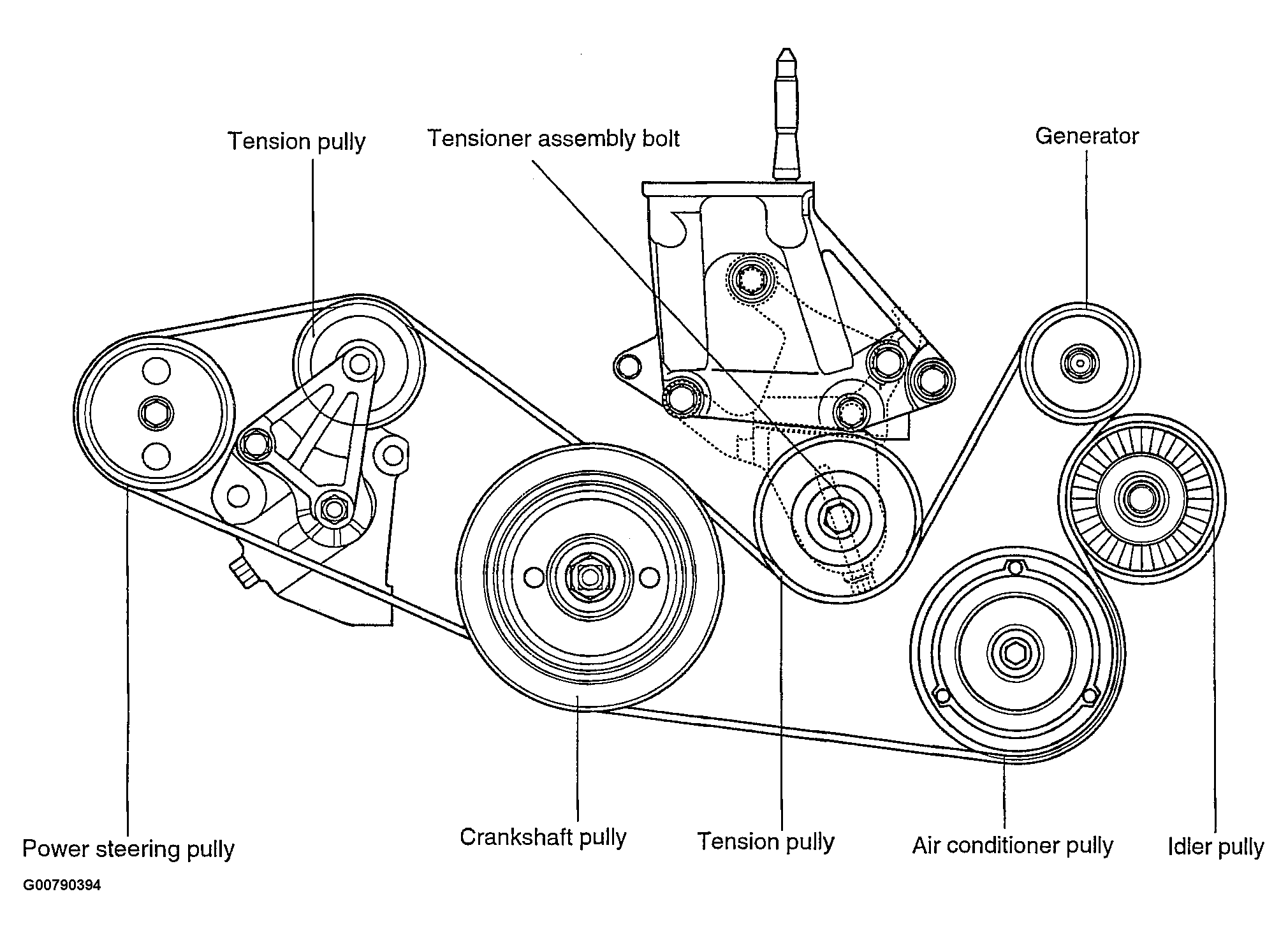

Fig 3: Identifying Drive Belt
Courtesy of HYUNDAI MOTOR CO.
Adjust the power steering belt tension to specification by turning the adjusting bolt (Q) clockwise or counter clockwise.

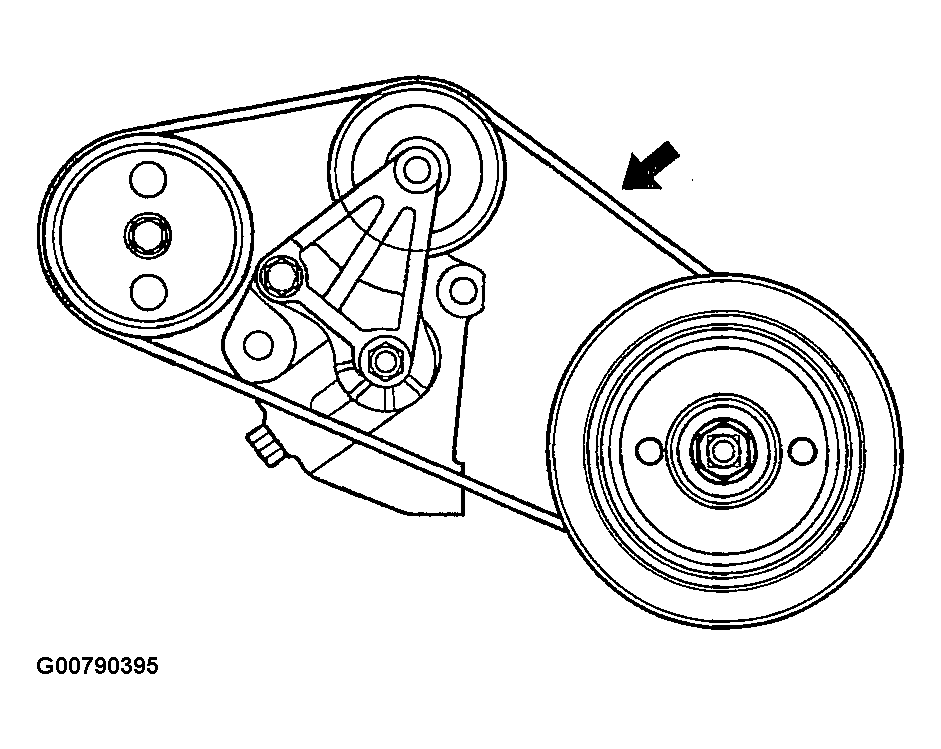

Fig 4: Identifying Power Steering Belt Adjusting Bolt
Courtesy of HYUNDAI MOTOR CO.
Adjust the drive belt tension to specification by turning the adjusting bolt (Q) clockwise or counter clockwise.

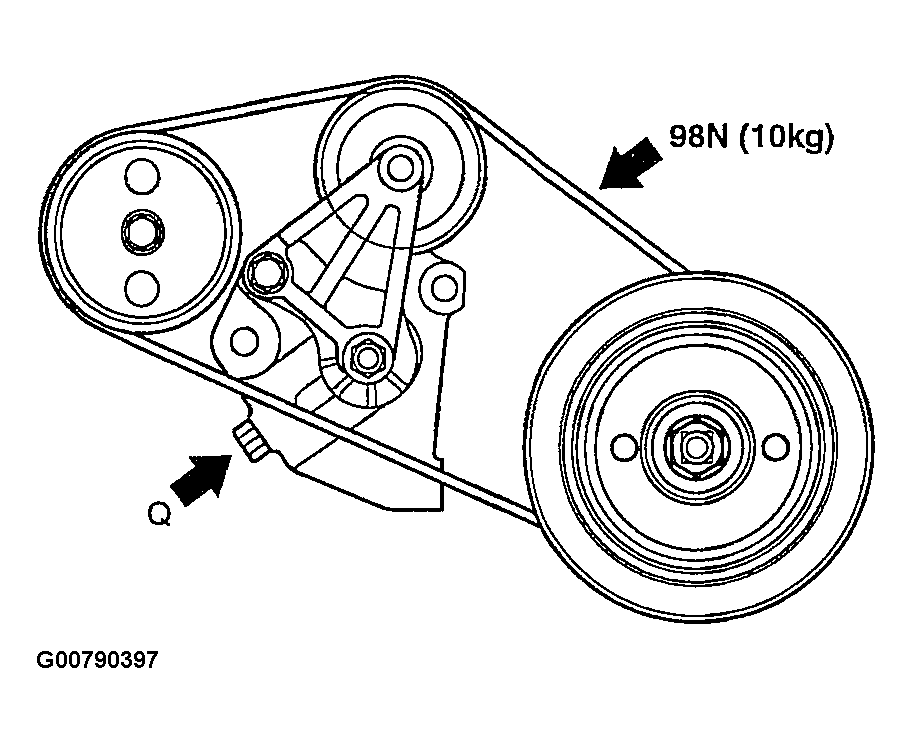

Fig 5: Identifying Drive Belt Adjusting Bolt
Courtesy of HYUNDAI MOTOR CO.
When installing the belt on the pulley, make sure it is centered on the pulley.

Fig 6: Locating Belt On Pulley
Courtesy of HYUNDAI MOTOR CO.
