Rear Roll Stopper

WARNING: This page is about a different variant/trim than selected.
  1. Remove the bolt from the rear roll stopper.
  2. Remove the rear roll stopper from the sub - frame.

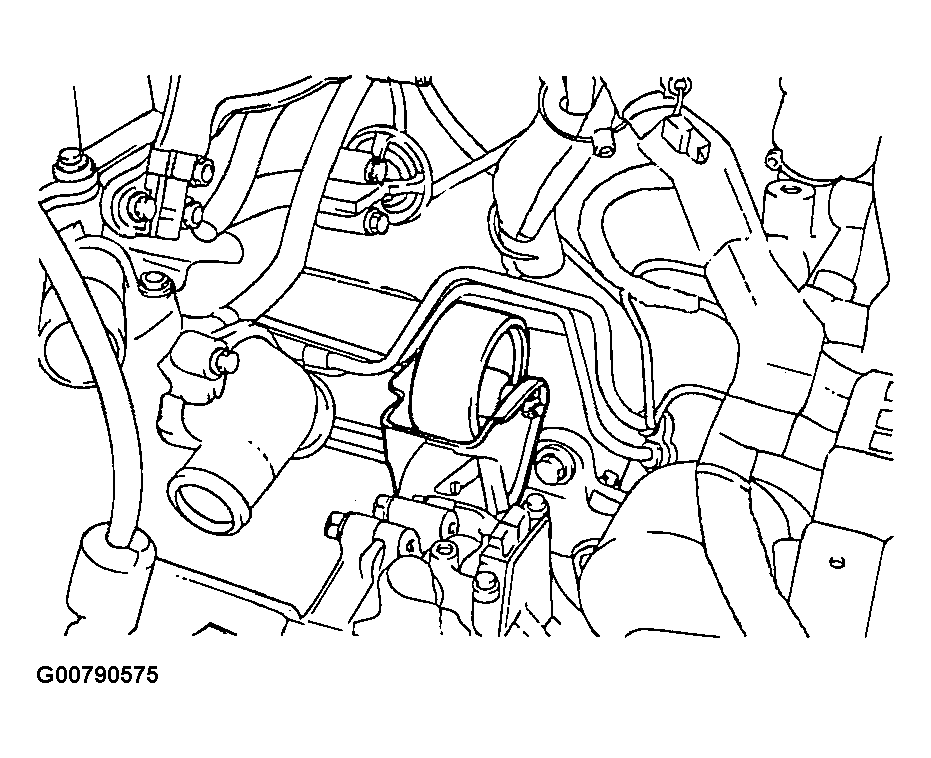

    Fig 1: View Of Rear Roller Stopper
    G00790575Courtesy of HYUNDAI MOTOR CO.
