Replacing Valve Guide

WARNING: This page is about a different variant/trim than selected.

Using the special tool (09221-3F000 A/B), withdraw the old valve guide out the bottom of the cylinder head.
Recondition the valve guide hole so that it can receive the newly press-fitted oversize valve guide.

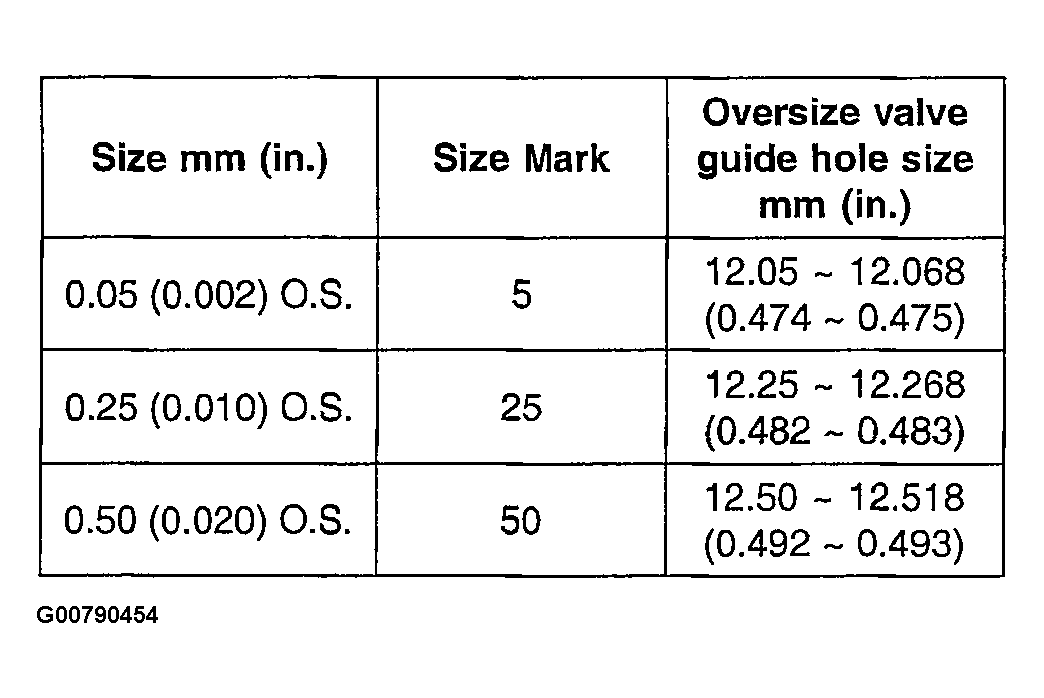

Fig 1: Valve Guide Oversize
Courtesy of HYUNDAI MOTOR CO.

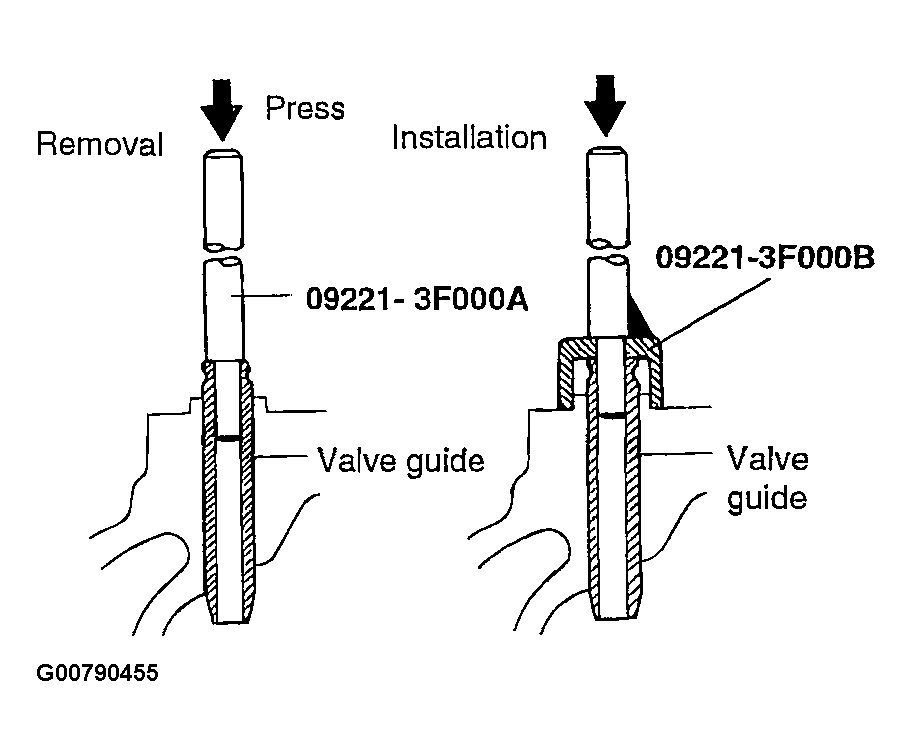

Fig 2: Press Fit Valve Guide
Courtesy of HYUNDAI MOTOR CO.
Using the special tool (09221-3F000 A/B) press-fit the valve guide. The valve guide must be press-fitted from the upper side of the cylinder head. Keep in mind that the intake and exhaust valve guides are different in length.
After the valve guide is press-fitted, insert a new valve and check for proper clearance.
After the valve guide is replaced, check that the valve is fully seated. Recondition the valve seats as necessary.

NOTE: Do not install a valve guide unless it is oversize.

Fig 3: Checking If Valve Is Fully Seated

Courtesy of HYUNDAI MOTOR CO.
